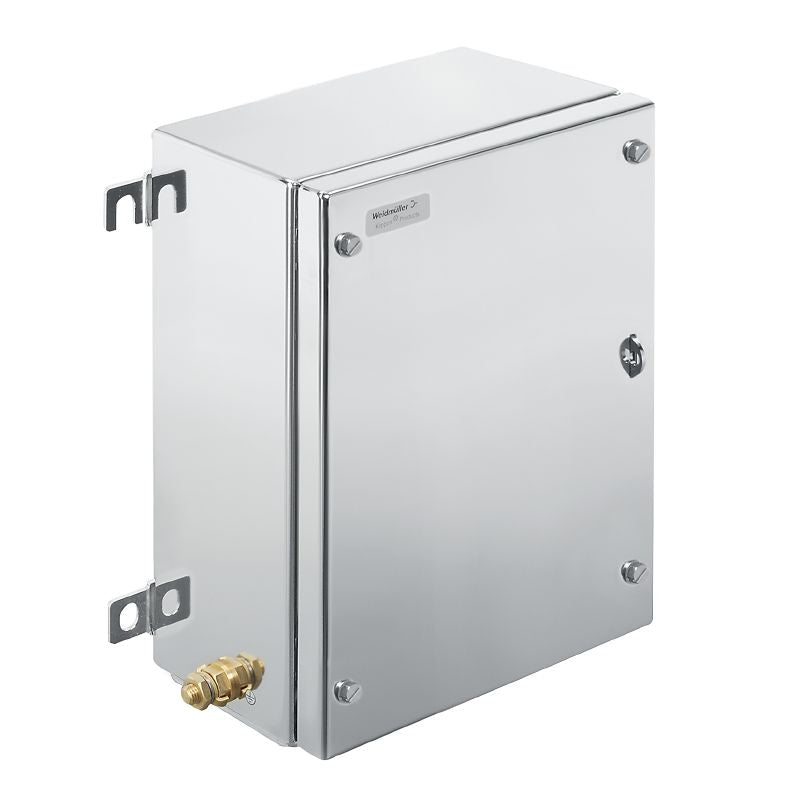

8000108832 - 306mm Stainless Steel Terminal Box, Multi Hinge Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Klippon TB MH (Terminal Box - Multi Hinge), a robust empty enclosure crafted from high-grade stainless steel Measuring 306 mm in height, 203 mm in width, and 150 mm in depth, this enclosure sets a standard for quality and functionality Made from electropolished stainless steel grade 14404 (316L), it boasts gland plates positioned at the bottom for optimal performance Engineered to handle a wide temperature range of -60 °C to 135 °C, it's important to note that its IP66 protection rating is maintained only when used in conditions below 105 °C.

Ideal for a variety of industrial applications, this terminal box combines strength with practical design.

Features and Benefits:

•Made from stainless steel 1.4404 (316L).

•Electropolished surface finish.

•Includes gland plates at the bottom.

•IP66 and IP67 protection ratings.

•Approvals for ATEX, IECEX, and INMETRO.

•Easy screw mounting with 4 welded-on mounting feet.

•Hinged lid with M6 hex-head slotted screws for secure attachment.

Specifications:
