8000108831 - Stainless Steel Terminal Box 306mm x 203mm x 150mm

8000108831 - Stainless Steel Terminal Box 306mm x 203mm x 150mm

SKU: SKU: 8000108831 Download PDF

Variant:
  • 8000108831 - Stainless Steel Terminal Box 306mm x 203mm x 150mm
Regular price Now $951.64
Regular price BEFORE   $0.00 Sale price Now $951.64
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

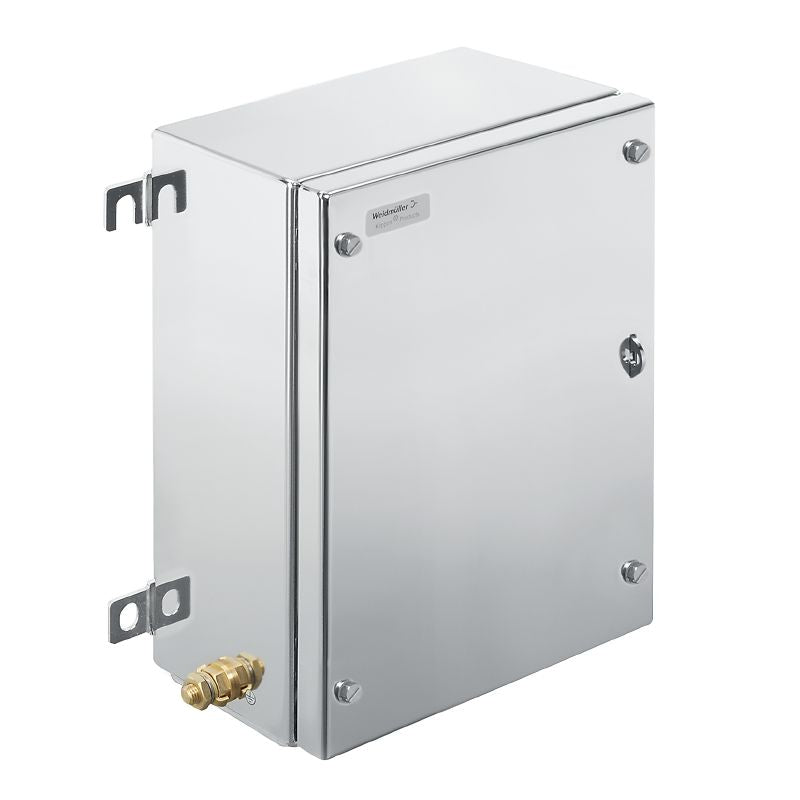

Introducing the Klippon TB MH, a robust empty enclosure crafted from electropolished stainless steel (14404/316L) and featuring durable multi hinges With dimensions of 306 mm in height, 203 mm in width, and 150 mm in depth, this enclosure combines functionality with quality It adheres to RoHS regulations, making it a responsible choice for your storage needs Order now using the product number 8000108831.

Features and Benefits:

    •Made from stainless steel 1.4404 (316L).

    •Electropolished surface finish.

    •Designed with multi hinges for enhanced functionality.

    •Includes 4 welded-on mounting feet for attachment.

Specifications:

 Operating temperature, max. 135 °C
 Operating temperature, min. -60 °C
 Protection degree IP66/IP67
 Impact resistance 10 J version standard
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Material thickness of flange 3 mm
 Seal material Silicone
 Torque for lid screws 2.5 Nm
 Approval conditions ['ATEX', 'IECEX', 'INMETRO', 'cULus']
 General compliance ['DIN EN 62208', 'DIN EN 61373 Class 1B', 'DIN EN 15085-2', 'EN 60079-0', 'EN 60079-7', 'EN 60079-31', 'IEC 60079-0', 'IEC 60079-7', 'IEC 60079-31']
