8000090355 - Klippon EBi HS 500mm Stainless Steel Enclosure with Hinged Screws

8000090355 - Klippon EBi HS 500mm Stainless Steel Enclosure with Hinged Screws

SKU: 8000090355   Download PDF

Select a Variant:
  • 8000090355 - Klippon EBi HS 500mm Stainless Steel Enclosure with Hinged Screws
Qty:
Now $1,300.80   Web pricing policy
BEFORE   $0.00 Now $1,300.80 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

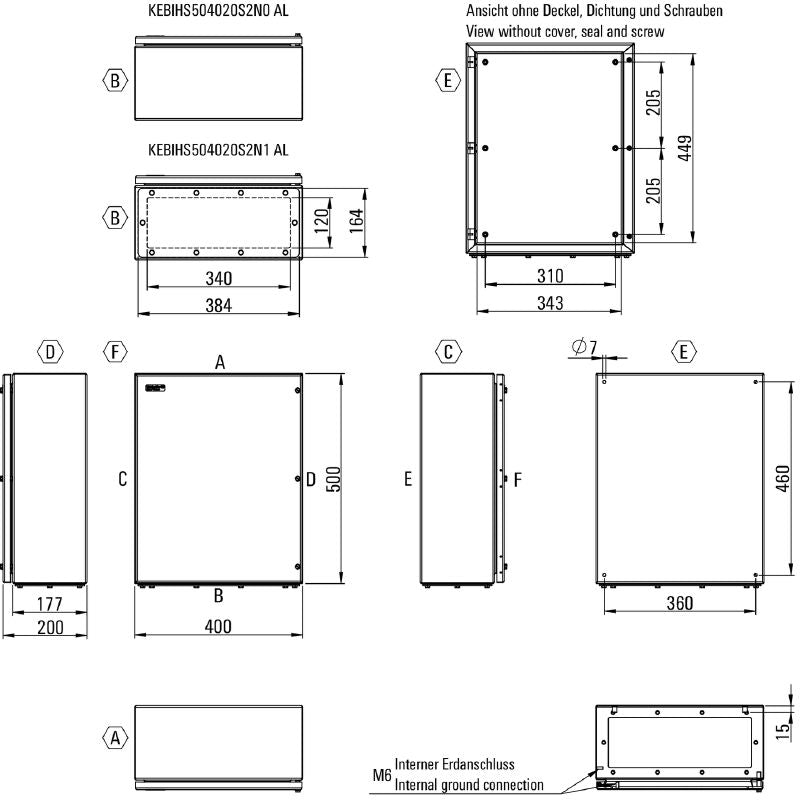

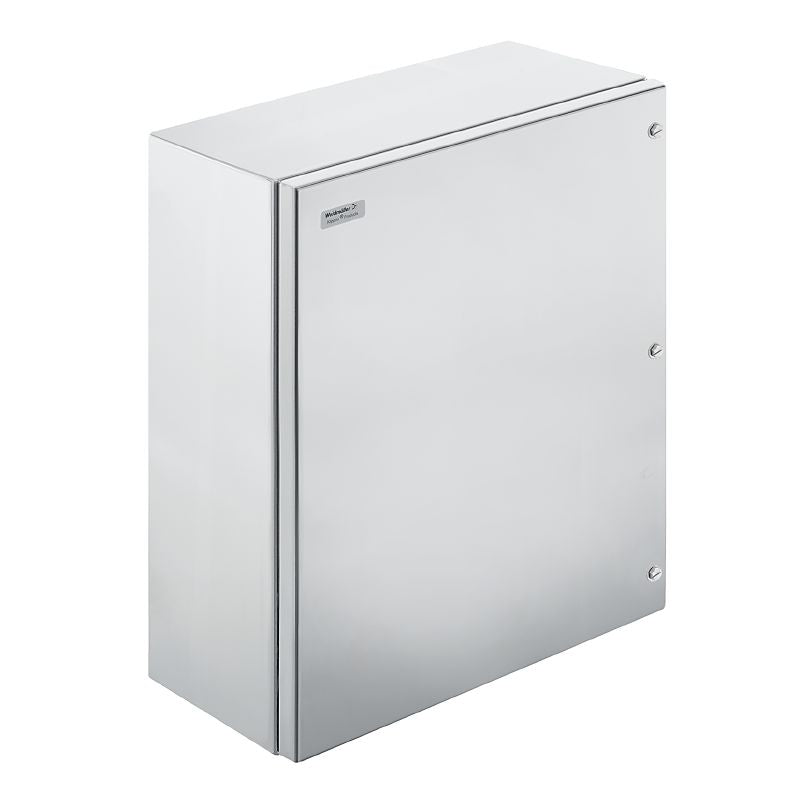

Introducing the KEBIHS504020S2N1 AL, a robust enclosure from the Klippon EBi HS series, thoughtfully engineered for industrial use This unit features convenient hinged screws and measures 500 mm in height, 400 mm in width, and 200 mm in depth, making it ideal for fitting gland plates at the base Crafted from untreated stainless steel 14301 (304), it boasts a sleek silver finish Additionally, this product is ROHS compliant, adhering to strict environmental regulations.

Features and Benefits:

    •Installation can be performed via the rear wall of the housing.

    •Includes flange plate.

    •Designed with a protection degree of IP66.

    •Impact resistance rated at 10 J.

Specifications:

 Operating temperature (max) -40 °C to 85 °C
 Protection class IP66
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Material thickness of flange 3 mm
 Seal material Chloroprene
 Flange plate Yes
 Gland plates Bottom
