Description:

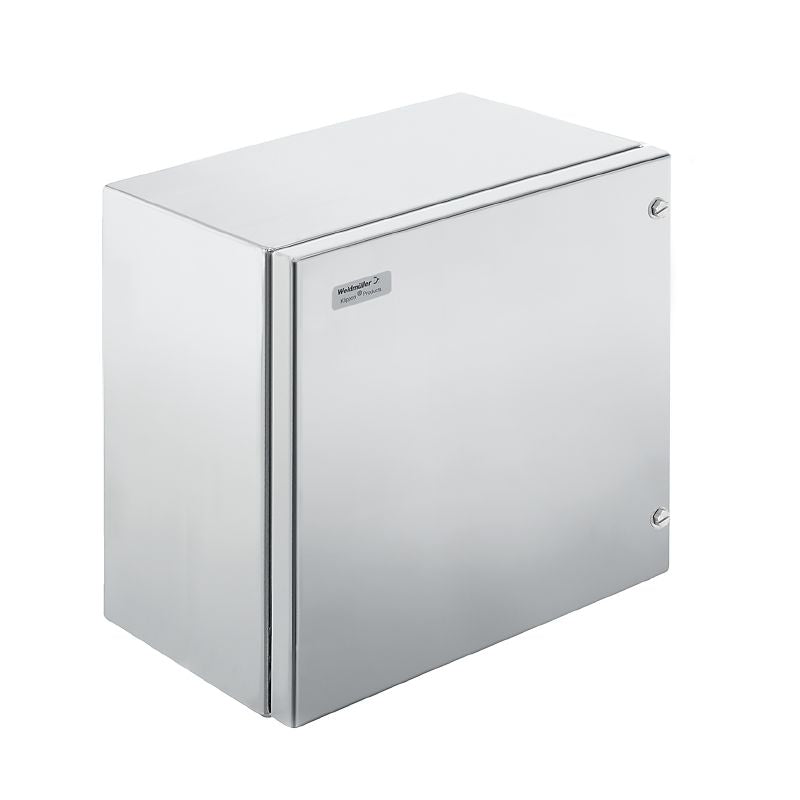

Experience durability and functionality with the Klippon EBi HS series hinged screw enclosures, measuring 300 mm in height, 300 mm in width, and 200 mm in depth Crafted from untreated stainless steel grade 14301 (304), these enclosures are built specifically for industrial applications Each unit includes bottom-mounted gland plates for enhanced usability Additionally, you can trust in its compliance with RoHS guidelines, ensuring it meets environmental standards.

Features and Benefits:

•Constructed from stainless steel 1.4301 (304).

•IP66 protection degree, requiring wall mounting for proper sealing.

•Installation is facilitated through the rear wall of the housing.

•Includes flange plate for secured installation.

•Impact resistance rated at 10 J.

Specifications:

Operating Temperature Range:	-40 °C to 85 °C
Material Thickness of Cover:	1.5 mm
Material Thickness of Enclosure:	1.5 mm
Material Thickness of Flange:	3 mm
Seal Material:	Chloroprene
Lid Attachment:	M5 hexagonal screw with slot
Gland Plates:	Bottom
Declaration of Conformity No.:	DE PS2650 220428 001ISS01
Net Weight:	6461.626 g
Cable Glands Left:	M12: 72, M16: 45, M20: 28, M25: 18, M32: 15, M40: 8
Cable Glands Right:	M12: 72, M16: 45, M20: 28, M25: 18, M32: 15, M40: 8
Cable Glands Top/Bottom:	M12: 55, M16: 36, M20: 21, M25: 18, M32: 8, M40: 6
ETIM Classifications:	ETIM 9.0: EC000261
