2698400000 - Stainless Steel Terminal Box 1000mm x 500mm x 300mm

SKU: SKU: 2698400000 Download PDF

Select a Variant:

2698400000 - Stainless Steel Terminal Box 1000mm x 500mm x 300mm

SET THE QTY:

Now $8,990.50 Web pricing policy

~~BEFORE $0.00~~ Now $8,990.50 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

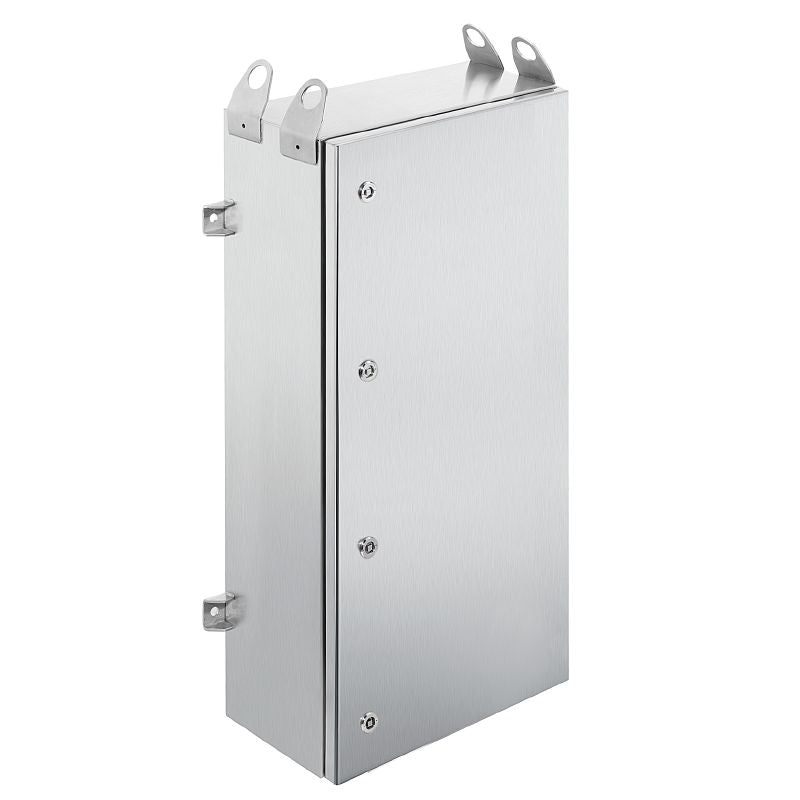

Introducing the Klippon TBL (Terminal Box Large), a robust empty enclosure built for versatility With dimensions of 1000 mm in height, 500 mm in width, and 300 mm in depth, this enclosure is perfect for various applications Crafted from high-grade stainless steel 14404 (316L) with a modern brushed finish, it combines durability with a sleek aesthetic The design incorporates gland plates positioned at the bottom for efficient connectivity.

This product is RoHS compliant and meets several safety certification standards, ensuring it adheres to strict environmental regulations.

Features and Benefits:

•Constructed from high-quality stainless steel 1.4404 (316L).

•Brushed surface finish for aesthetic appeal.

•Includes mounting plates made of galvanised sheet steel.

•Provides protection degree of IP66.

•Supports operating temperatures from -50 °C to 135 °C.

Specifications:

Height	1000 mm
Width	500 mm
Depth	300 mm
Net weight	88,000 g
Operating temperature	-50 °C...135 °C
Material thickness	2 mm
Material thickness of cover	2.5 mm
Material thickness of flange	3 mm
Impact resistance	7 J ATEX version, 10 J version standard
Protection degree	IP66
Seal material	Silicone
Lid attachment	Quarter-turn fastener with square insert
Access opening height	925 mm
Access opening width	425 mm
