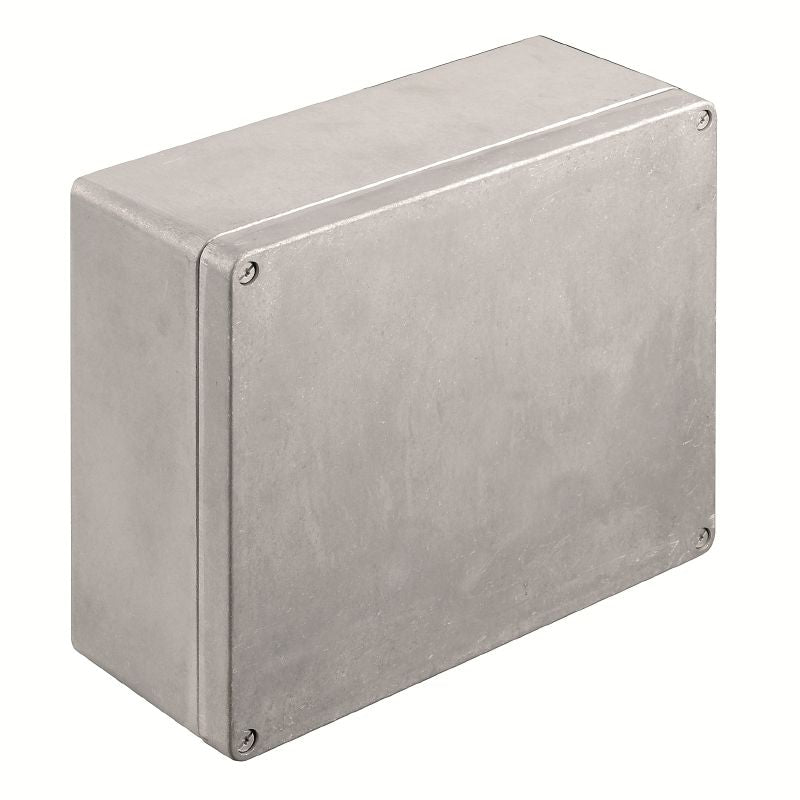

1939730000 - 230mm Aluminum Enclosure with IP68 Protection Class

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

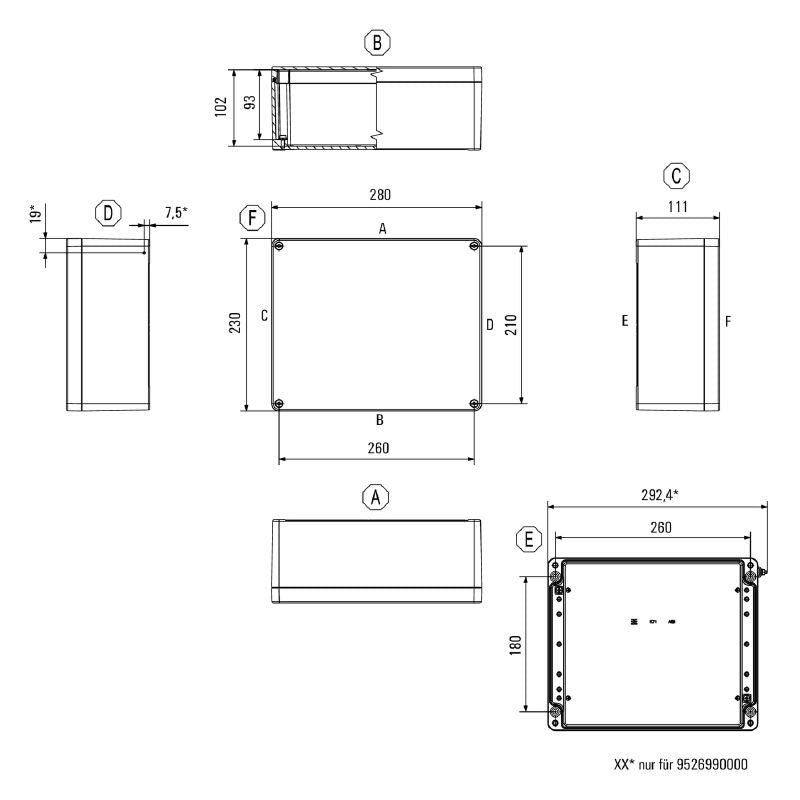

Discover the versatility of the KLIPPON K71 VMQ aluminum enclosure, perfect for a range of applications from process industries to marine engineering Constructed from untreated aluminum AlSi12, this robust enclosure boasts dimensions of 230 mm in height, 280 mm in width, and 100 mm in depth It adheres to RoHS standards, ensuring no substances of very high concern exceed 01 wt% With an impact resistance of 10 J and a maximum load capacity of 6.

44 kg, this enclosure is built to withstand various environments Additionally, it features an IP68 protection rating, highlighting its durability and suitability for demanding conditions.

Features and Benefits:

•Designed for process industry, transportation, marine engineering, packaging industry, harbor facilities, and machine construction.

•Includes access openings of height 221 mm and width 271 mm.

•Holes for securing the enclosure are 6 mm in size.

•Threaded holes M5 for integral fixing.

•Lid is included with attachment via M6 torx stainless steel screws.

•Untreated surface finish.

•Max. operating temperature of 135 °C and minimum of -50 °C.

•Protection degrees IP66, IP67, and IP68 available.

•Process industry.

•Transportation.

•Marine engineering.

•Packaging industry.

•Harbor facilities.

•Machine construction.

Specifications:
