1937870000 - Silver Grey Aluminum Enclosure 160mm H x 200mm W x 100mm D

1937870000 - Silver Grey Aluminum Enclosure 160mm H x 200mm W x 100mm D

SKU: SKU: 1937870000 Download PDF

Variant:
  • 1937870000 - Silver Grey Aluminum Enclosure 160mm H x 200mm W x 100mm D
Regular price Now $172.28
Regular price BEFORE   $0.00 Sale price Now $172.28
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

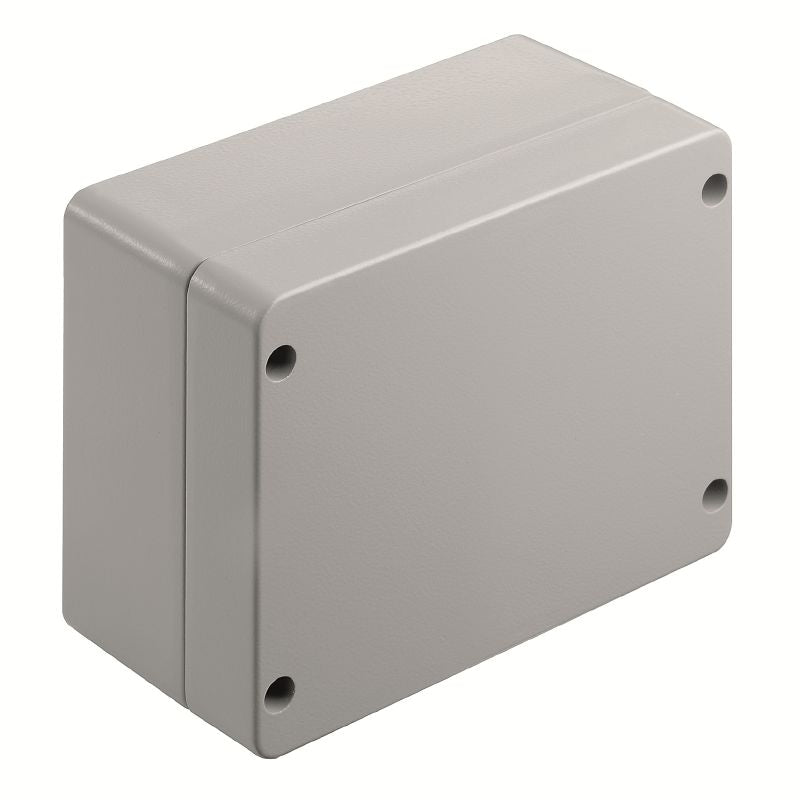

Introducing the KLIPPON K6 VMQ RAL7001 aluminum enclosure, expertly designed to meet your needs Measuring 160 mm in height, 200 mm in width, and 100 mm in depth, this enclosure is crafted from high-quality AlSi12 aluminum Its attractive silver grey finish is complemented by a textured powder-coated surface, ensuring both style and durability Perfect for a variety of applications, this enclosure combines functionality with a modern aesthetic, making it an ideal choice for any project.

Features and Benefits:

    •RoHS compliant without exemption.

    •Impact resistance of 10 J version standard.

    •Has a lid attached with M5 torx stainless steel screws.

    •Designed for environments such as process industry, marine engineering, and transportation.

    •Process industry.

    •Marine engineering.

    •Transportation.

    •Packaging industry.

    •Harbour facilities.

    •Machine construction.

Specifications:

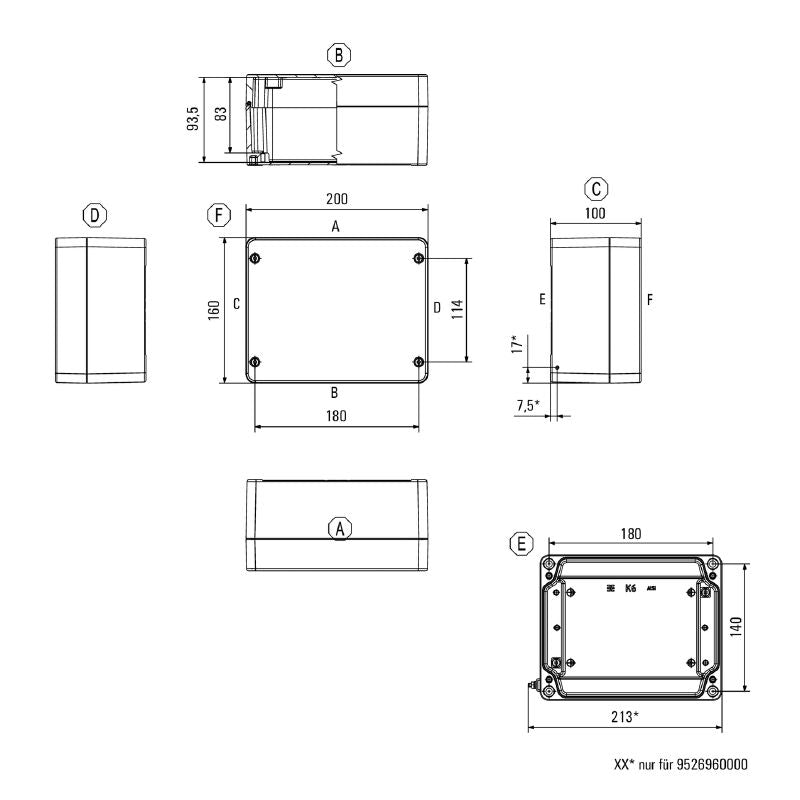

 Dimensions (Height x Width x Depth): 160 mm x 200 mm x 100 mm
 Material: Aluminium AlSi12
 Operating temperature range: -60 °C to 135 °C
 Protection class: IP68 (t=72h, h=1m)
 Max payload: 3.2 kg
 Net weight: 1,640.32 g
 Mounting dimensions: Height: 140 mm, Width: 180 mm
 Access opening dimensions: Height: 150.8 mm, Width: 190.8 mm
 Number of lid screws: 4
 Torque for lid screws: 2.5 Nm
 Seal material: Silicone
