1565280000 - Untreated Aluminium Enclosure 120mm x 220mm x 81mm, RoHS Compliant

1565280000 - Untreated Aluminium Enclosure 120mm x 220mm x 81mm, RoHS Compliant

SKU: 1565280000   Download PDF

Select a Variant:
  • 1565280000 - Untreated Aluminium Enclosure 120mm x 220mm x 81mm, RoHS Compliant
Qty:
Now $97.82   Web pricing policy
BEFORE   $0.00 Now $97.82 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

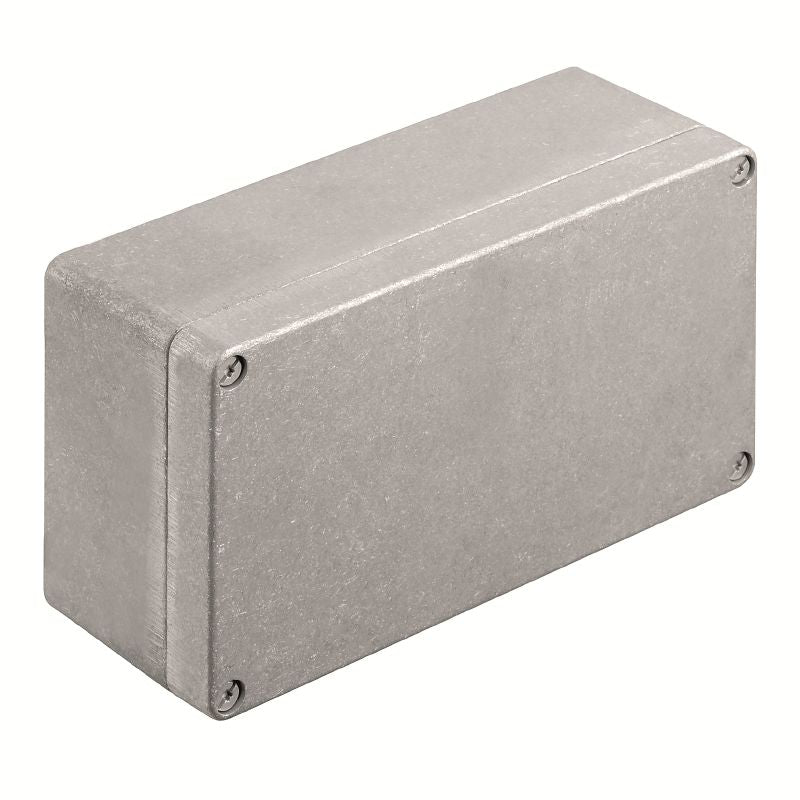

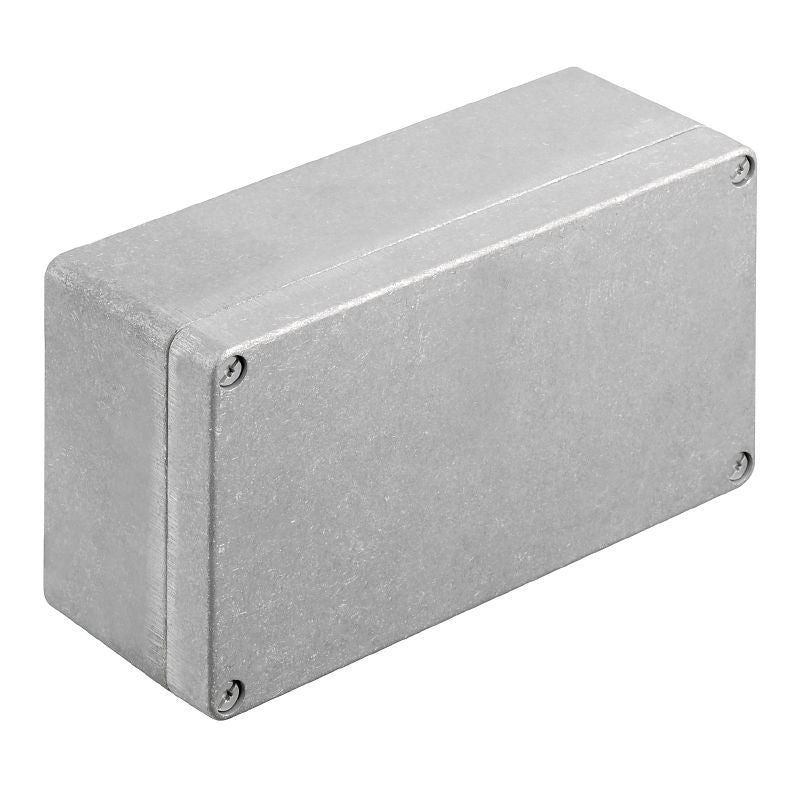

Introducing the KLIPPON K51, a versatile empty enclosure crafted from untreated aluminum With dimensions of 120 mm in height, 220 mm in width, and 81 mm in depth, this enclosure is built for compliance with RoHS standards and boasts UL certification (E197061) Its robust design makes it suitable for diverse uses in sectors such as process industries, marine engineering, packaging, transportation, harbor facilities, and machine construction.

Features and Benefits:

    •Made from untreated aluminium AlSi12.

    •Dust and moisture protection class IP68.

    •Impact resistance rated at 10 J.

    •Integral fixing with M5 threaded holes.

    •Lid secured with M6 torx stainless steel screws.

    •Max payload capacity of 2.64 kg.

    •Operating temperature range of -40 °C to 80 °C.

    •Process industry.

    •Marine engineering.

    •Packaging industry.

    •Transportation.

    •Harbour facilities.

    •Machine construction.

Specifications:

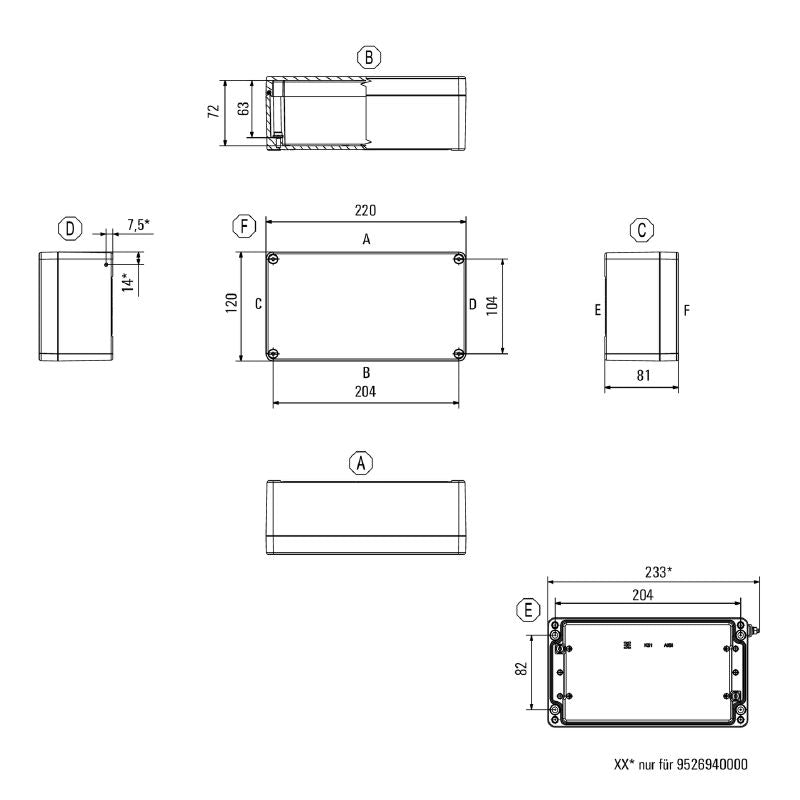

 Dimensions (mm) Height: 120, Width: 220, Depth: 81
 Material thickness of cover (mm) 4
 Material thickness of enclosure (mm) 4.5
 Access opening dimensions (mm) Height: 111, Width: 211
 Number of cable glands (left) {'M12': 6, 'M16': 3, 'M20': 2, 'M25': 1, 'M32': 1}
 Number of cable glands (right) {'M12': 6, 'M16': 3, 'M20': 2, 'M25': 1, 'M32': 1}
 Cable glands (top/bottom) {'M12': 23, 'M16': 14, 'M20': 8, 'M25': 5, 'M32': 3, 'M40': 3}
 Protection class (UL) Type 4 and Type 4X
 Protection degree IP66, IP67, IP68
 Seal material Chloroprene
 Standards EN 45545-2:2013
 Torque for lid screws (Nm) 2.5
 Approval conditions cULus, RMRS, DNV
