1329770000 - 230mm Aluminum Enclosure RAL7001 with Textured Finish

1329770000 - 230mm Aluminum Enclosure RAL7001 with Textured Finish

SKU: 1329770000 Download PDF

Variant:
  • 1329770000 - 230mm Aluminum Enclosure RAL7001 with Textured Finish
Now $384.00
BEFORE   $0.00 Now $384.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

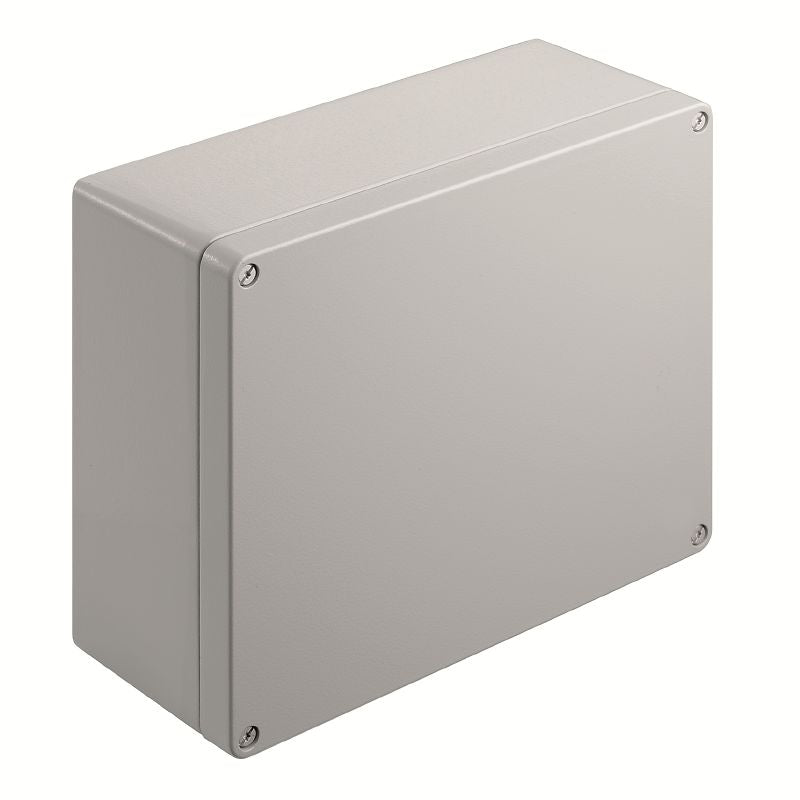

Introducing the Klippon K71 Ex RAL7001, a versatile aluminum enclosure perfect for a range of applications Measuring 230 mm in height, 280 mm in width, and 111 mm in depth, this lightweight enclosure is crafted from durable aluminum AlSi12 Its striking silver grey powder-coated textured finish not only enhances its aesthetic appeal but also adds to its durability, making it an excellent choice for housing equipment safely and stylishly.

Features and Benefits:

    •RoHS compliant without exemption.

    •Includes lid screws.

    •Protection degrees IP66 and IP67.

    •Robust impact resistance rated at 7 J for ATEX version.

    •Access opening dimensions of height: 221 mm, width: 271 mm.

    •Explosive risk zone.

    •Process industry.

    •Transportation.

    •Packaging industry.

    •Marine engineering.

    •Machine construction.

    •Harbour facilities.

Specifications:

 Operating temperature, max. 135 °C
 Operating temperature, min. -60 °C
 Material thickness of cover 3 mm
 Material thickness of enclosure 4.5 mm
 Seal material Silicone
 Number of lid screws 4

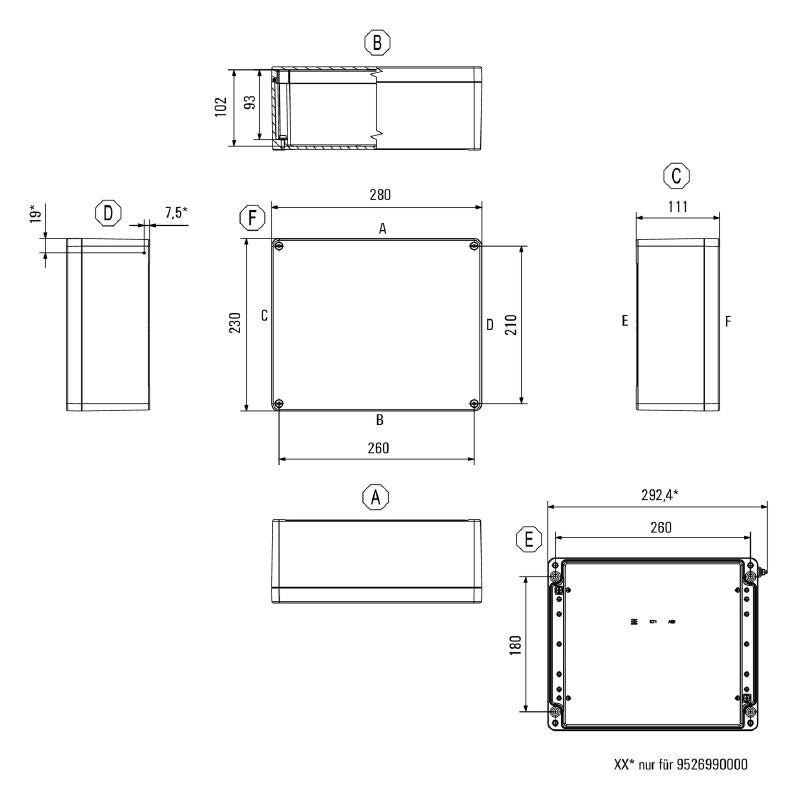

 Mounting dimension - height 180 mm
 Mounting dimension - width 260 mm
 Cable glands, left M12: 28, M16: 18, M20: 10, M25: 8, M32: 3, M40: 2, M50: 2
 Cable glands, right M12: 28, M16: 18, M20: 10, M25: 8, M32: 3, M40: 2, M50: 2
 Cable glands, top/bottom M12: 42, M16: 30, M20: 21, M25: 12, M32: 10, M40: 4, M50: 3
 Torque for lid screws 2.5 Nm
 Flange plate No
 Impact resistance 7 J ATEX version
 Surface finish Powder-coated textured
 access opening: height 221 mm
 access opening: width 271 mm
