1329650000 - 70mm Aluminum Enclosure RAL7001 for Versatile Applications

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

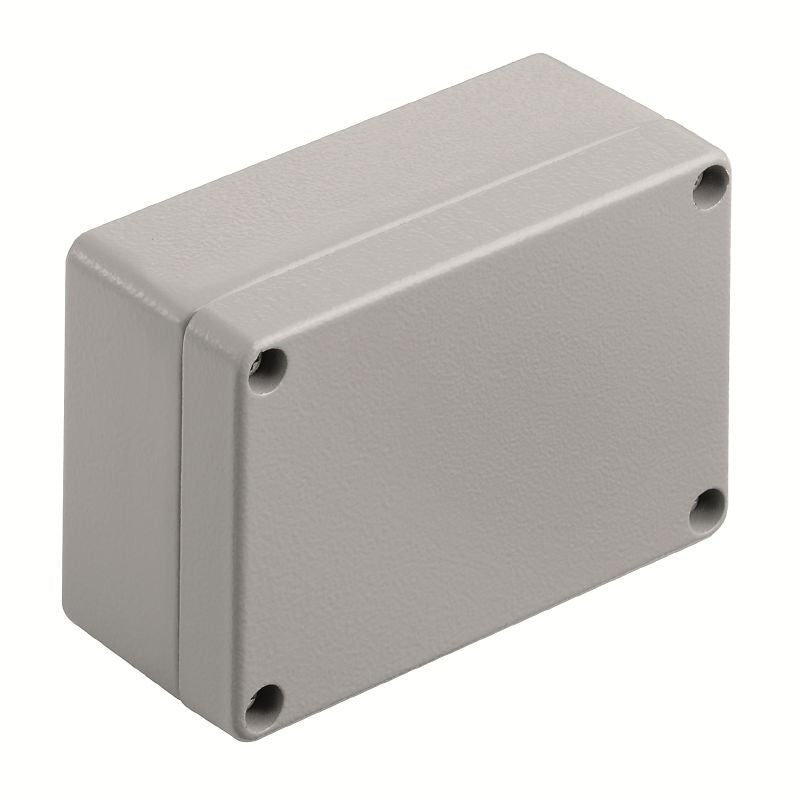

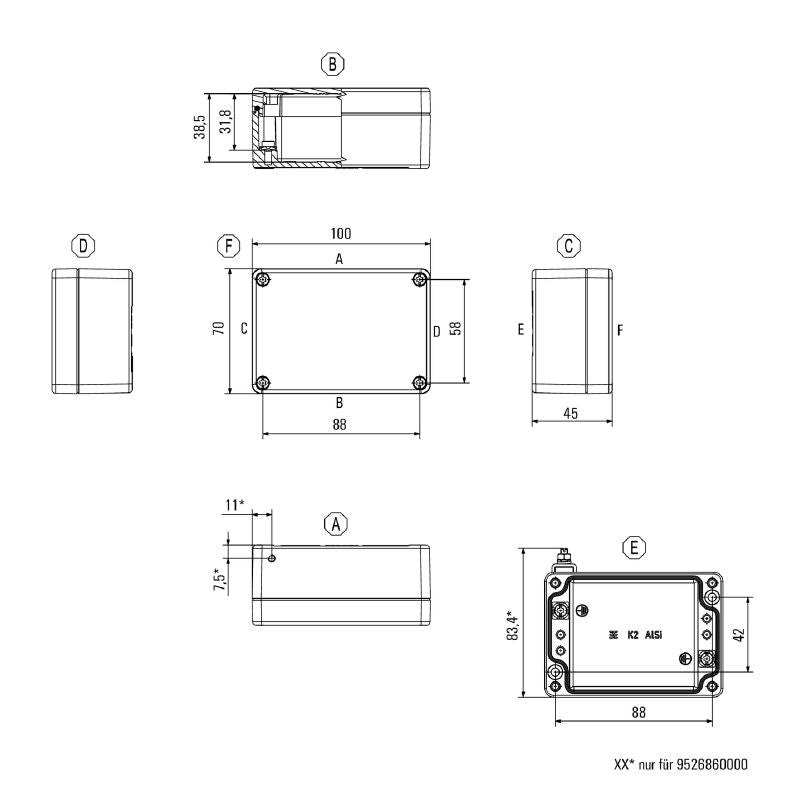

Introducing the Klippon K2 EX RAL7001, a versatile aluminum enclosure perfectly suited for a variety of applications Crafted from high-grade aluminum AlSi12, this enclosure boasts a striking powder-coated textured silver gray exterior With dimensions of 70 mm in height, 100 mm in width, and 45 mm in depth, it’s both compact and functional This enclosure adheres to ROHS standards and operates effectively within a temperature range of -60 °C to 135 °C.

It features a designated access opening and includes mounting provisions, complete with lid screws for easy assembly.

Features and Benefits:

•Powder-coated surface finish in textured silver grey.

•Built from aluminum AlSi12 for durability.

•IP66 and IP67 protection degree.

•Includes M4 torx stainless steel screws for lid attachment.

•Impact resistance of 7 J for ATEX version.

•Explosive risk zone.

•Process industry.

•Transportation.

•Packaging industry.

•Marine engineering.

•Machine construction.

•Harbour facilities.

Specifications:
