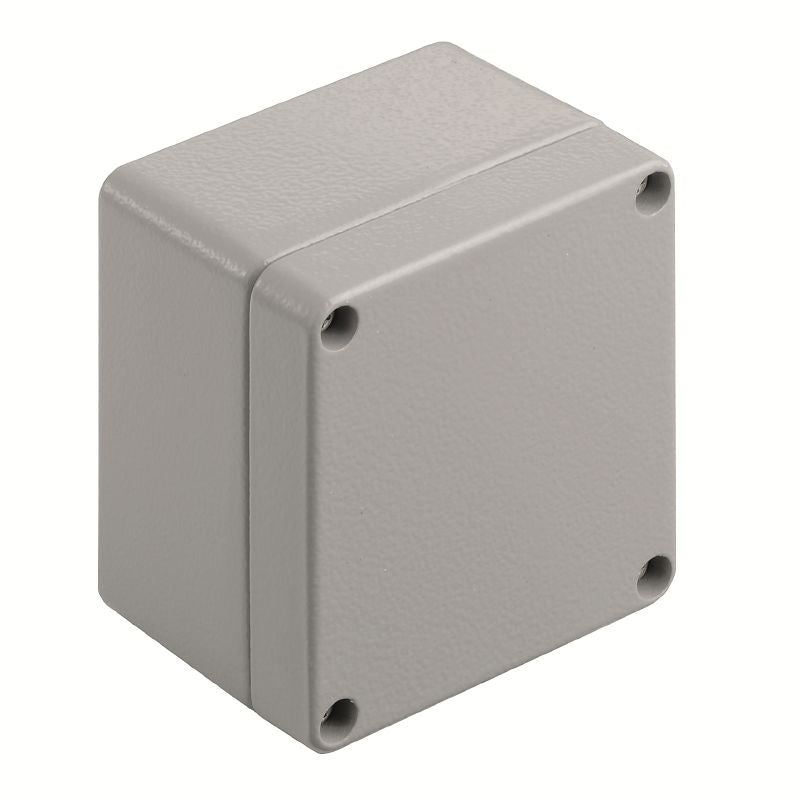

1329640000 - Durable 80mm Aluminium Enclosure in Silver Grey Finish

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

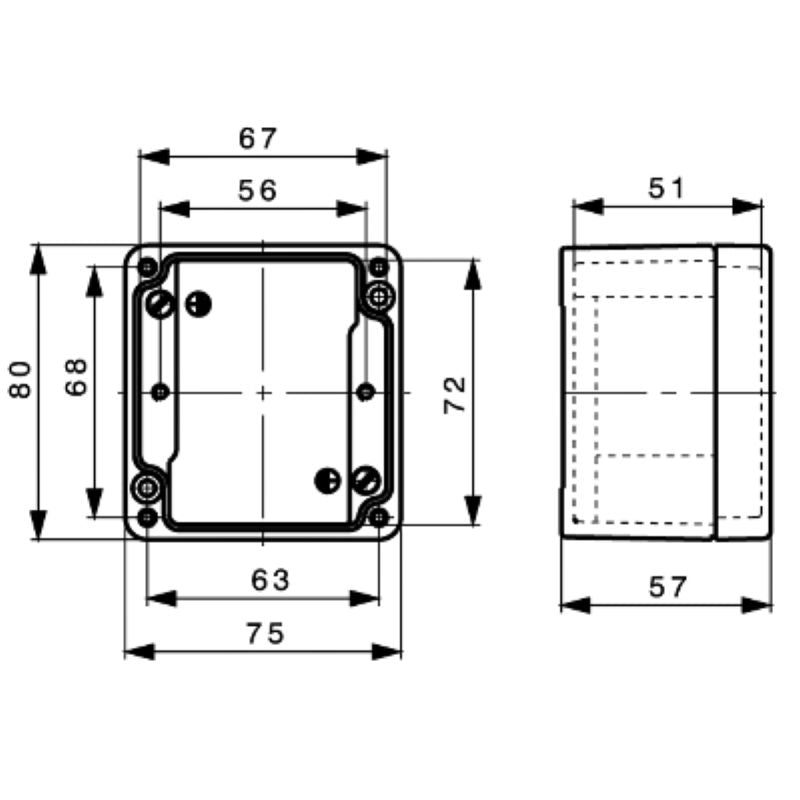

Introducing the Klippon K11 EX RAL7001, a sturdy aluminium enclosure designed as a structural case Measuring 80 mm in height, 75 mm in width, and 57 mm in depth, this model is crafted from AlSi12 aluminium It features a textured, powder-coated surface in a sophisticated silver-grey finish, making it an ideal choice for various applications.

Features and Benefits:

•Access opening: height 72 mm, width 67 mm.

•Four cable glands available (2 M12, 2 M16, 1 M20 on left and right sides, and top/bottom).

•Impact resistance of 7 J for the ATEX version.

•Integral fixing with M4 threaded holes.

•Operating temperature range from -60 °C to 135 °C.

•Protection rating of IP66 and IP67.

•Lid held in place by 4 M4 torx stainless steel screws with a slot.

•Compliant with RoHS without exemptions.

•Explosive risk zones.

•Process industry.

•Transportation.

•Packaging industry.

•Marine engineering.

•Machine construction.

•Harbour facilities.

Specifications:
