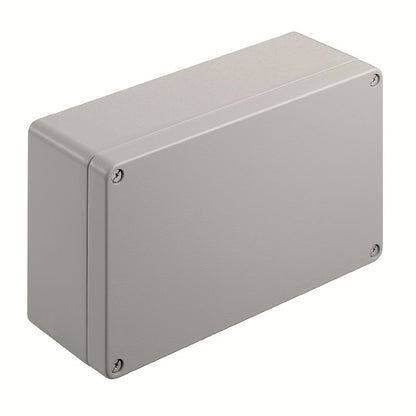

1328140000 - 160mm Aluminum Enclosure for Harsh Environments

1328140000 - 160mm Aluminum Enclosure for Harsh Environments

SKU: 1328140000   Download PDF

Select a Variant:
  • 1328140000 - 160mm Aluminum Enclosure for Harsh Environments
Qty:
Now $256.81   Web pricing policy
BEFORE   $0.00 Now $256.81 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

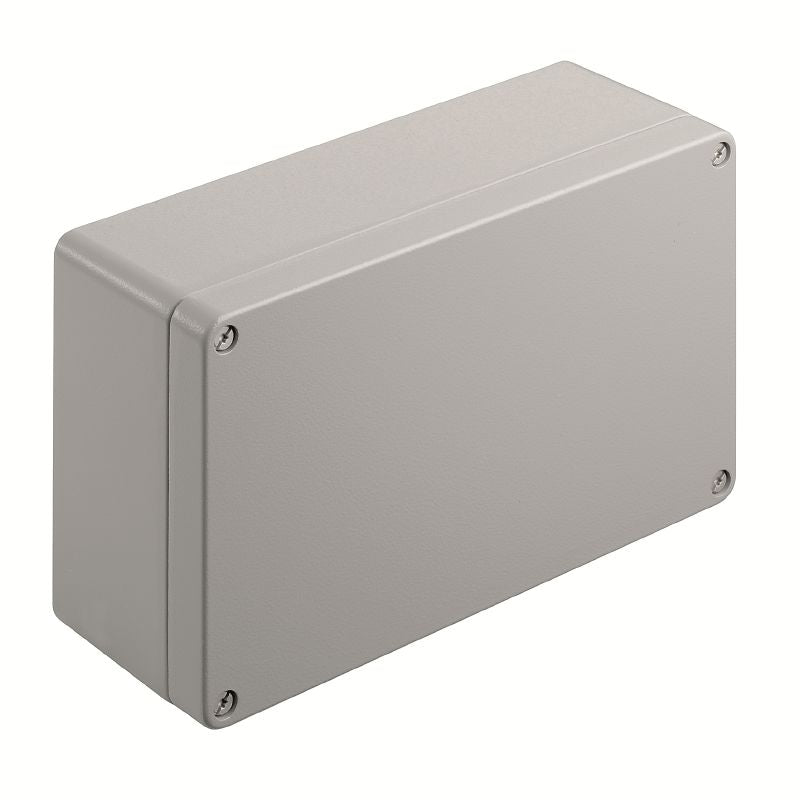

Discover the Klippon K61 EX RAL7001, an exceptional empty enclosure crafted from durable aluminum, engineered to endure extreme temperatures ranging from -60 °C to 135 °C With compact dimensions of 160 mm in height, 260 mm in width, and 91 mm in depth, this enclosure is made from premium AlSi12 aluminum, featuring a sleek silver grey powder-coated finish that adds both style and protection It offers a variety of cable gland options and adheres to rigorous safety standards, including ATEX and IECEx certifications, making it ideal for explosive environments and diverse industrial settings.

Features and Benefits:

    •Made from aluminum AlSi12, ensuring durability.

    •Powder-coated and textured surface finish for enhanced protection.

    •IP66 and IP67 rated for superior water and dust ingress protection.

    •Designed with access openings for ease of use.

    •Compliant with RoHS and other environmental regulations.

    •Explosive risk zones.

    •Process industry.

    •Transportation.

    •Packaging industry.

    •Marine engineering.

    •Machine construction.

    •Harbour facilities.

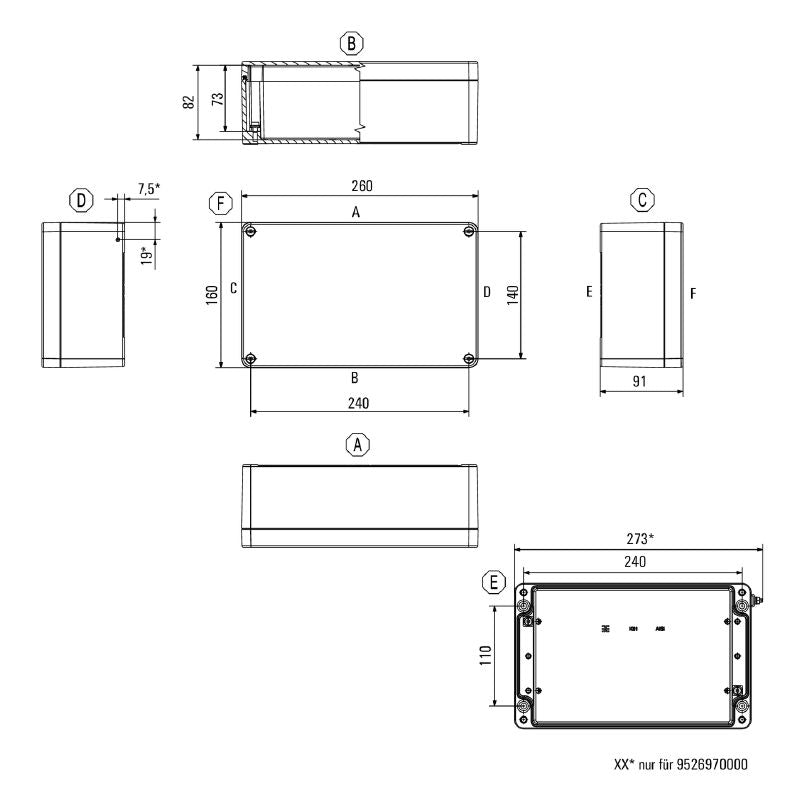

Specifications:

 Height 160 mm
 Width 260 mm
 Depth 91 mm
 Operating temperature -60 °C...135 °C
 Protection degree IP66, IP67
 Material thickness of cover 4 mm
 Material thickness of enclosure 4.5 mm
 Lid Yes
 Cable glands (left) {'M12': '8', 'M16': '6', 'M20': '3', 'M25': '2', 'M32': '1', 'M40': '1'}
 Cable glands (right) {'M12': '8', 'M16': '6', 'M20': '3', 'M25': '2', 'M32': '1', 'M40': '1'}
 Cable glands (top/bottom) {'M12': '27', 'M16': '23', 'M20': '13', 'M25': '8', 'M32': '4', 'M40': '3'}
 Net weight 2,249 g
 Access opening height 151 mm
 Access opening width 251 mm
 Impact resistance 7 J
 Torque for lid screws 2.5 Nm
 Standard compliance ['IEC 60079-0', 'IEC 60079-7', 'IEC 60079-31', 'EN 45545-2:2013']
