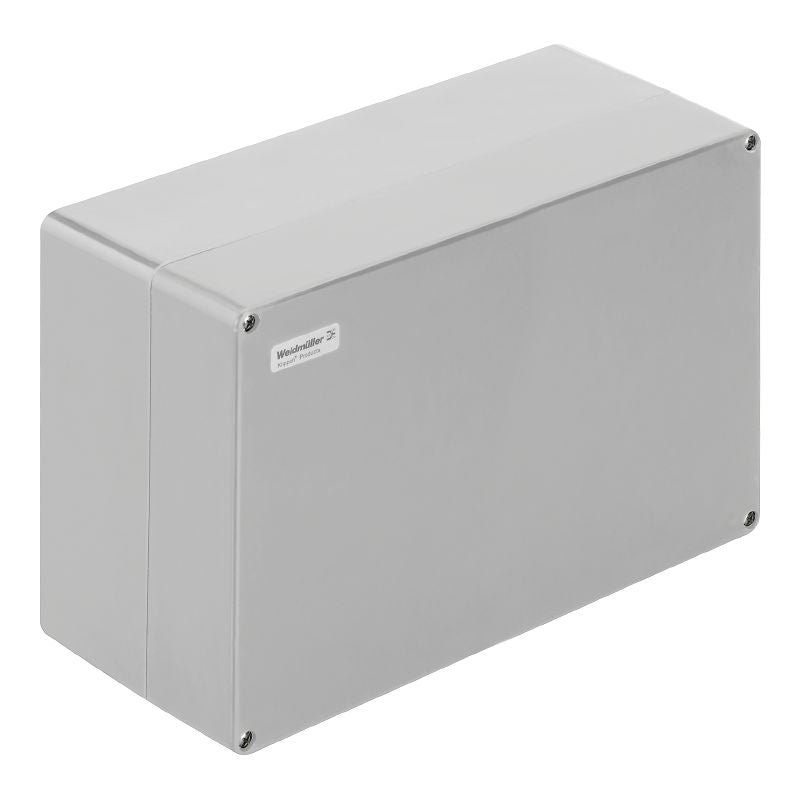

1305990000 - Silver Grey Polyester Enclosure, 250mm x 400mm x 160.5mm

1305990000 - Silver Grey Polyester Enclosure, 250mm x 400mm x 160.5mm

SKU: SKU: 1305990000 Download PDF

Variant:
  • 1305990000 - Silver Grey Polyester Enclosure, 250mm x 400mm x 160.5mm
Regular price Now $347.46
Regular price BEFORE   $0.00 Sale price Now $347.46
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the KLIPPON POK 254016, a versatile empty enclosure crafted from untreated, polished glass-fibre-reinforced polyester This enclosure measures 250 mm in height, 400 mm in width, and 1605 mm in depth, finished in an elegant silver grey With a commitment to safety, it adheres to RoHS standards and carries a UL File Number E256877, making it a reliable choice for various applications.

Features and Benefits:

    •Compliant with RoHS Exemption 6c.

    •Impact resistance rated at 5 J.

    •IP66 protection grade.

    •Operating temperature range from -40 °C to 100 °C.

    •Untreated and polished surface finish.

    •Lid attachment via slotted/Phillips screws.

    •Can hold a maximum payload of 40 kg.

    •Harbour facilities.

    •Machine construction.

    •Process industry.

    •Transportation.

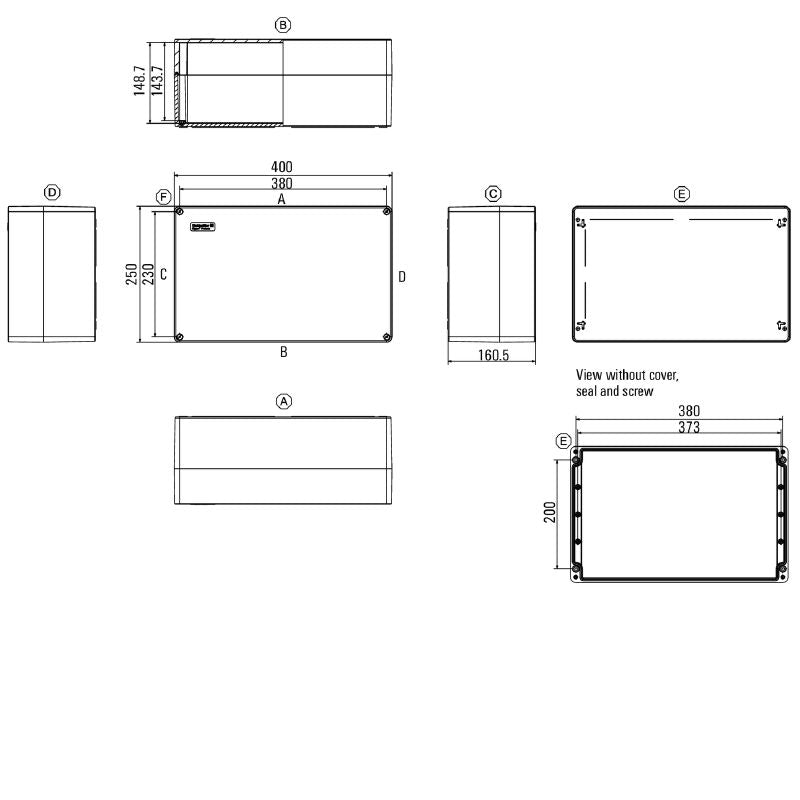

Specifications:

 Depth 160.5 mm
 Height 250 mm
 Width 400 mm
 Material thickness of cover 5.8 mm
 Material thickness of enclosure 5.99 mm
 Max. payload 40 kg
 Protection class (UL) Type 4, Type 4X
 Seal material Chloroprene
 Standard compliance DIN EN 62208 - Empty enclosure standard, DIN 4102-12
 UL 94 flammability rating V-0
 Number of lid screws 4
