1305950000 - 250mm x 600mm Polyester Enclosure in Silver-Grey

1305950000 - 250mm x 600mm Polyester Enclosure in Silver-Grey

SKU: SKU: 1305950000 Download PDF

Variant:
  • 1305950000 - 250mm x 600mm Polyester Enclosure in Silver-Grey
Regular price Now $411.54
Regular price BEFORE   $0.00 Sale price Now $411.54
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

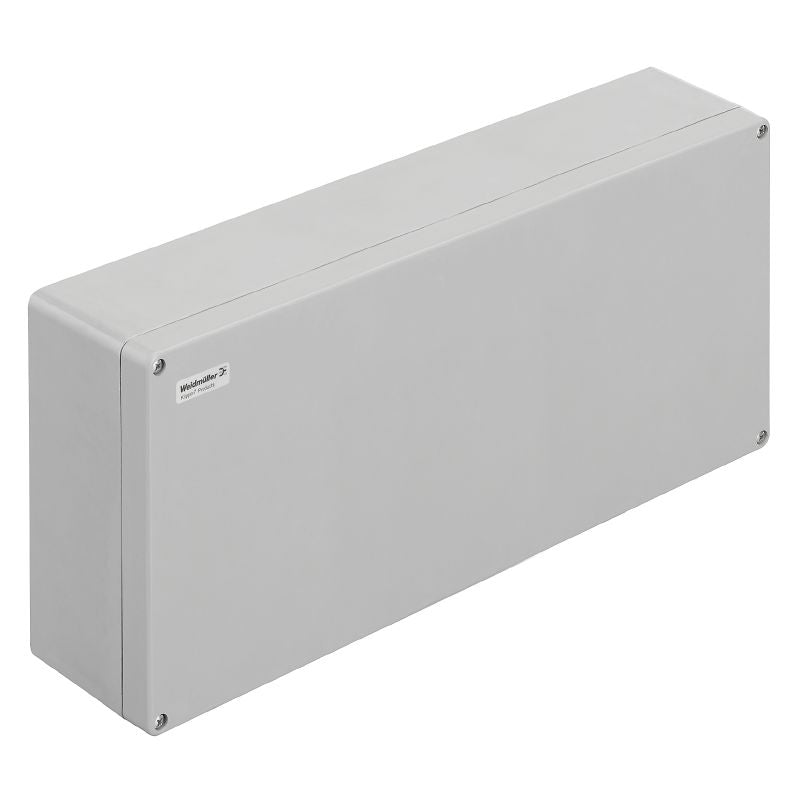

Introducing the KLIPPON POK 256012, a versatile empty enclosure made from high-quality glass-fiber reinforced polyester With dimensions of 250 mm in height, 600 mm in width, and 120 mm in depth, this enclosure offers ample space for various applications Its untreated and polished silver-grey exterior makes it aesthetically pleasing while enhancing its durability Perfect for a wide range of environments, including harbor facilities, machine construction, the process industry, and transportation, this enclosure is a robust solution for your needs.

Features and Benefits:

    •Compliant with RoHS and meets exemption 6c.

    •Lid secured with slotted/Phillips screws.

    •Includes impact resistance rated at 5J.

    •Standard for empty enclosures per DIN EN 62208.

    •UL Protection Class Type 4 and 4X with IP66 rating.

    •Sealed with chloroprene material.

    •Net weight of 5,420 g.

    •Harbor facilities.

    •Machine construction.

    •Process industry.

    •Transportation.

Specifications:

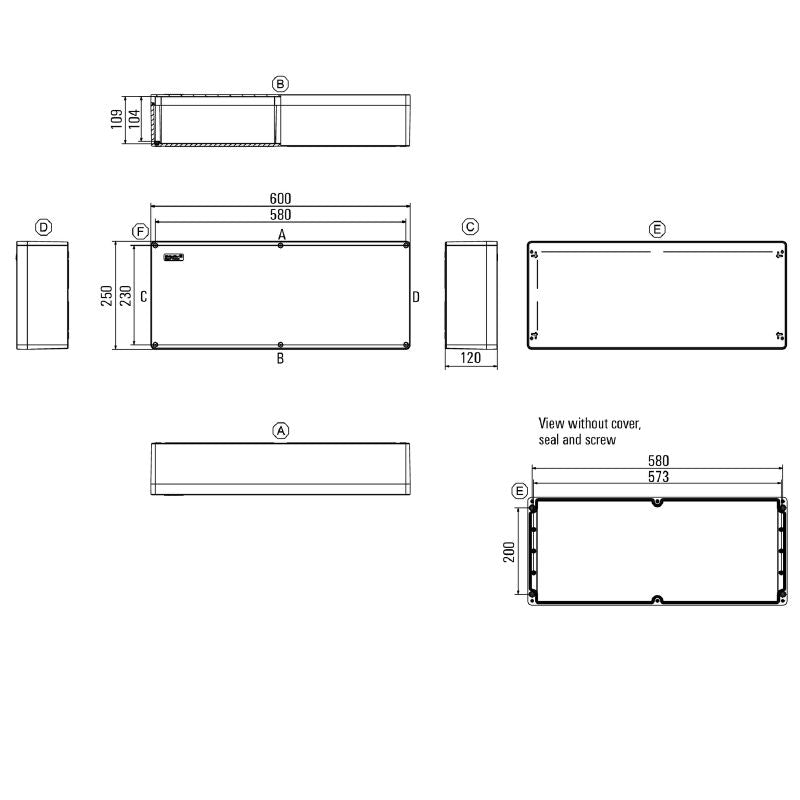

 Dimensions (Height x Width x Depth) 250 mm x 600 mm x 120 mm
 Operating Temperature -40 °C to 100 °C
 Access Opening Dimensions (Height x Width) 237.42 mm x 387.42 mm
 Material Thickness of Cover 5 mm
 Material Thickness of Enclosure 6.29 mm
 Number of Lid Screws 6
 Max Payload 60 kg
 Flammability Rating UL 94 V-0
 Standard Compliance DIN EN 62208 - Empty enclosure standard
