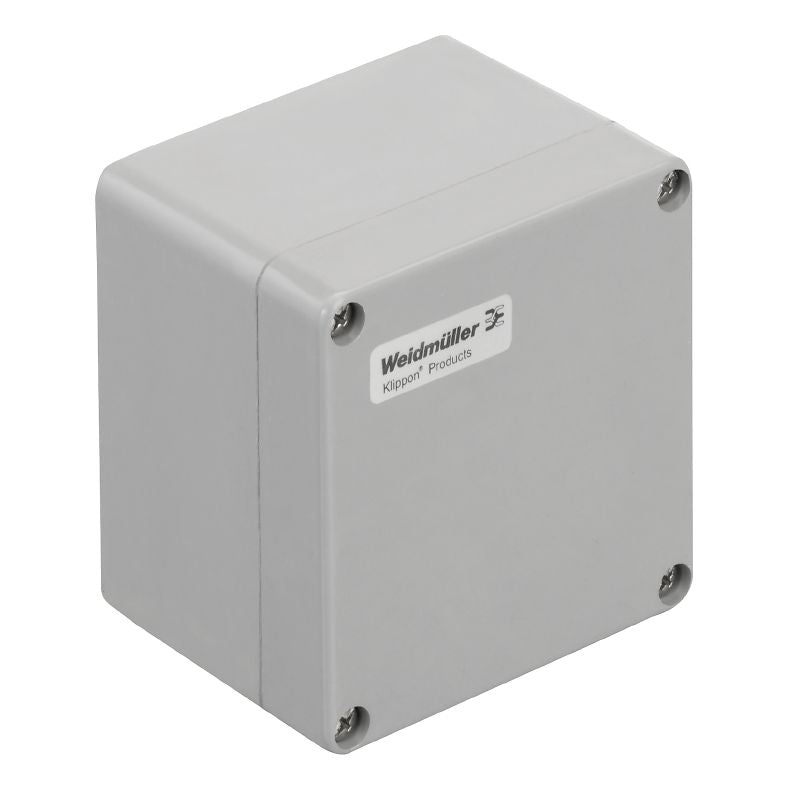

1305870000 - IP66 Glass Fiber Enclosure 120mm for Harbors & Machines

1305870000 - IP66 Glass Fiber Enclosure 120mm for Harbors & Machines

SKU: SKU: 1305870000 Download PDF

Variant:
  • 1305870000 - IP66 Glass Fiber Enclosure 120mm for Harbors & Machines
Regular price Now $72.27
Regular price BEFORE   $0.00 Sale price Now $72.27
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the KLIPPON POK empty enclosure, expertly crafted for a wide array of applications such as harbor facilities, machinery construction, industrial processes, and transport solutions This versatile enclosure is made from untreated, polished glass fiber-reinforced polyester, featuring a sophisticated silver grey hue Measuring 120 mm in height, 122 mm in width, and 90 mm in depth, it is designed to withstand extreme temperatures ranging from -40 °C to 100 °C, ensuring reliability in challenging environments.

The KLIPPON POK adheres to RoHS standards and boasts a robust protection rating of IP66, along with an impact resistance of 5 J For installation, simply secure it through the rear wall, allowing for flexible deployment across various settings Perfect for those who demand quality and versatility in their solutions.

Features and Benefits:

    •Compliant with RoHS and includes exemptions.

    •Constructed of glass fiber-reinforced polyester.

    •Versatile usage in multiple industries.

    •Harbour facilities.

    •Machine construction.

    •Process industry.

    •Transportation.

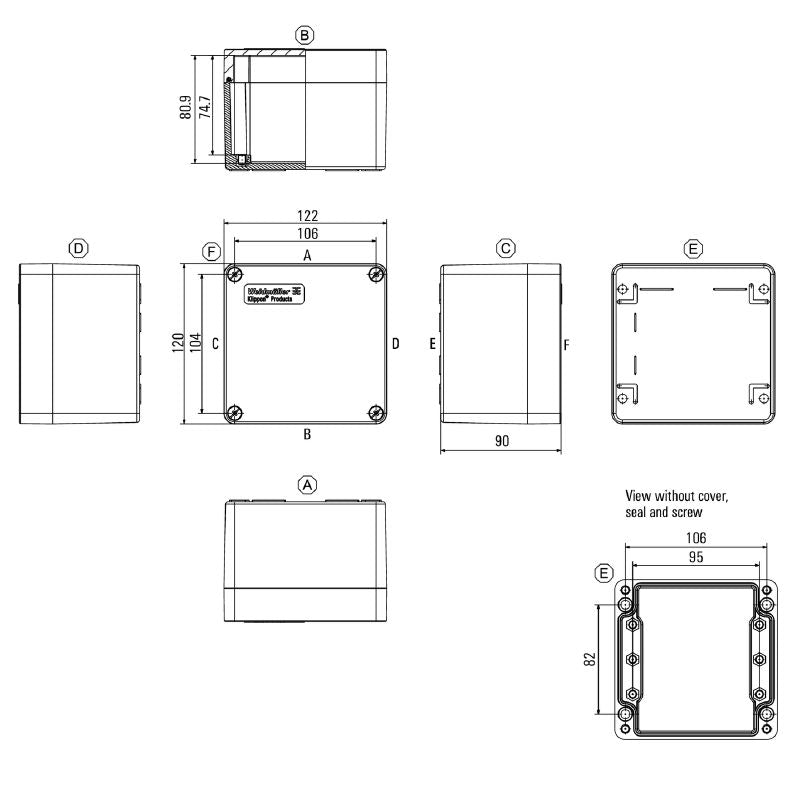

Specifications:

 Height 120 mm
 Width 122 mm
 Depth 90 mm
 Operating temperature -40 °C...100 °C
 Protection class (UL) Type 4, Type 4X
 Protection degree IP66
 Seal material Chloroprene
 Material thickness of cover 4.4 mm
 Material thickness of enclosure 4.39 mm
 Max. payload 5.86 kg
 Approvals cULus, DNV
 Flammability rating V-0
