1305840000 - 75mm High Silver Grey Polyester Enclosure with Flexible Installation

1305840000 - 75mm High Silver Grey Polyester Enclosure with Flexible Installation

SKU: SKU: 1305840000 Download PDF

Variant:
  • 1305840000 - 75mm High Silver Grey Polyester Enclosure with Flexible Installation
Regular price Now $58.52
Regular price BEFORE   $0.00 Sale price Now $58.52
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

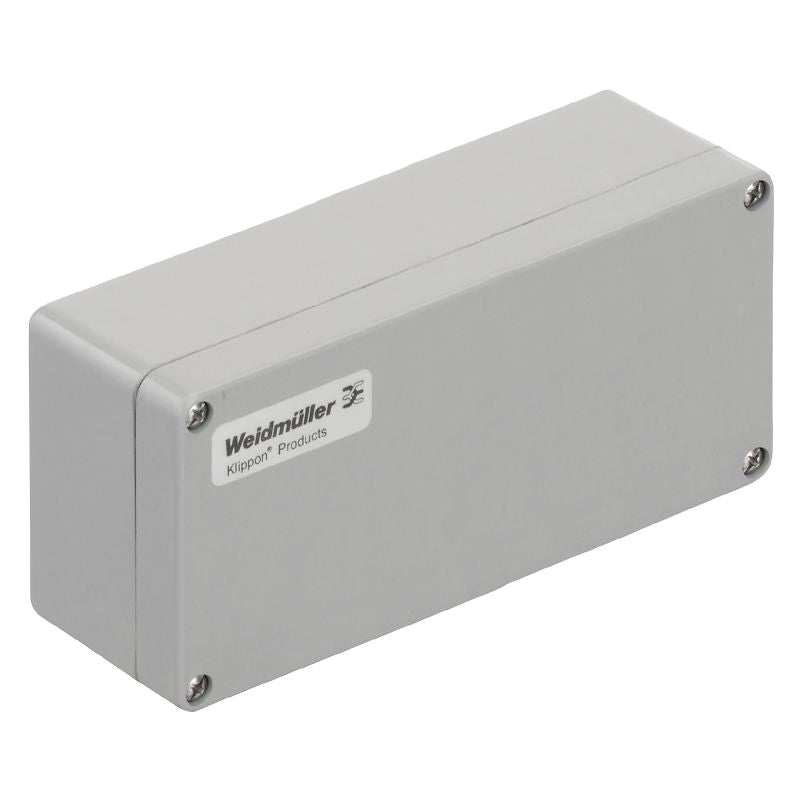

Introducing the KLIPPON POK 081906, an expertly crafted empty enclosure made from high-quality glass fibre-reinforced polyester This robust enclosure boasts dimensions of 75 mm in height, 190 mm in width, and 55 mm in depth, all finished in an elegant silver grey hue It adheres to ROHS standards and holds the prestigious cULus E256877 certification, ensuring reliability and safety With versatile cable gland options, installation is a breeze, making it an excellent choice for a wide array of applications including harbors, machine construction, process industries, and transportation.

Features and Benefits:

    •Constructed from untreated, polished glass fibre-reinforced polyester.

    •Offers multiple cable glands and fixing options.

    •Lid attached with slotted/Phillips screws.

    •High impact resistance with a standard of 5 J.

    •Protection class Type 4 and Type 4X.

    •IP66 protection degree.

    •Harbour facilities.

    •Machine construction.

    •Process industry.

    •Transportation.

Specifications:

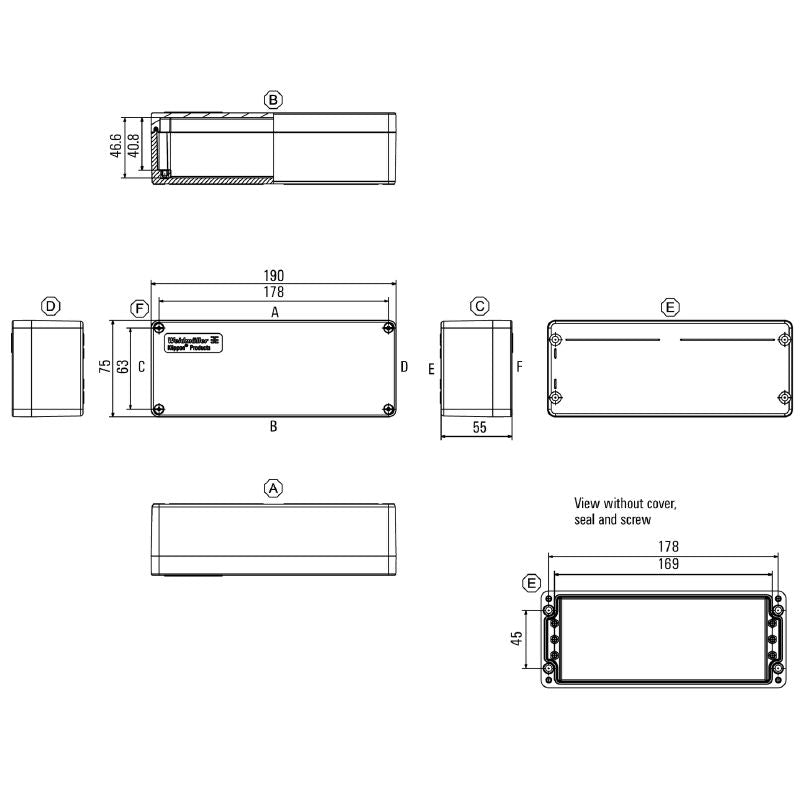

 Height 75 mm
 Width 190 mm
 Depth 55 mm
 Environmental Compliance ROHS Compliant with exemption
 Approval Conditions cULus E256877
 Protection Degree IP66
 Operating Temperature Min -40 °C
 Operating Temperature Max 100 °C
 Material Thickness of Cover 3.7 mm
 Material Thickness of Enclosure 4.44 mm
 Seal Material Chloroprene
 Number of Lid Screws 4
 Torque for Lid Screws 2.5 Nm
 Standards DIN EN 62208 - Empty enclosure standard
