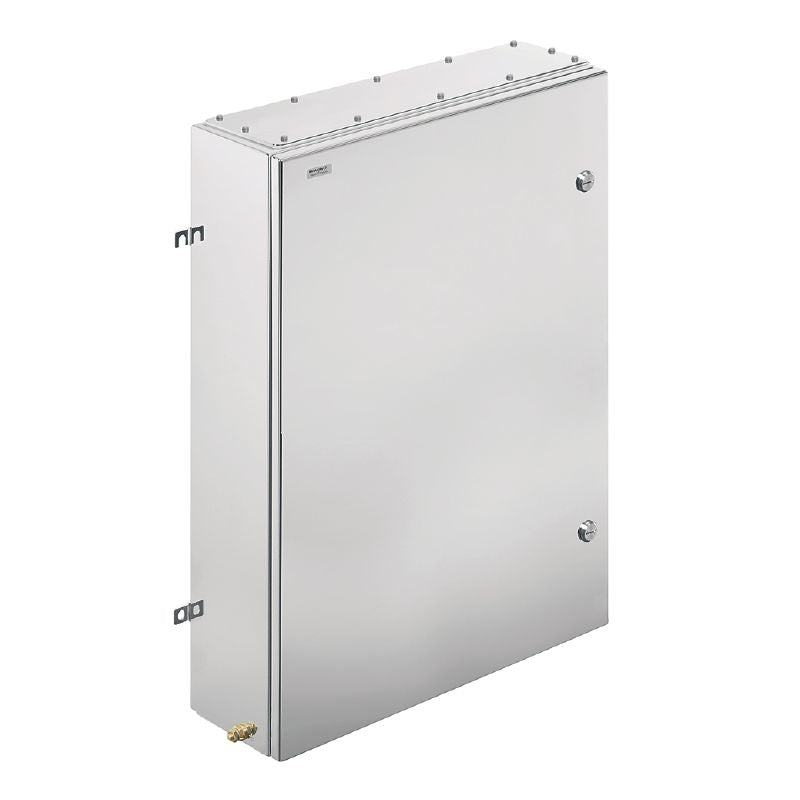

1200910000 - Stainless Steel 914mm Terminal Box with Quarter Lock Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

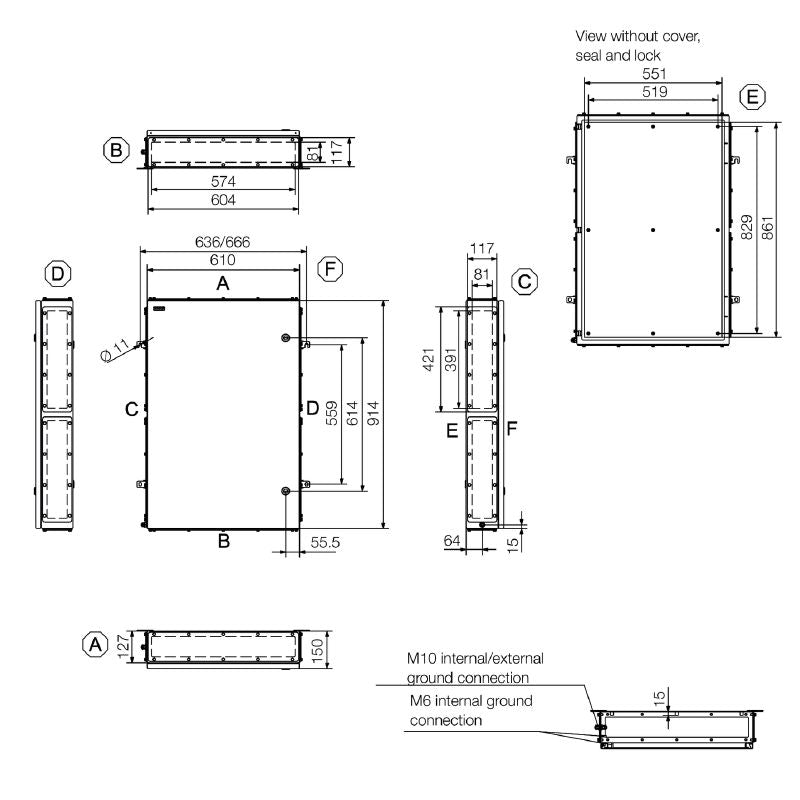

Discover the Klippon TB QL Quarter Lock terminal box, expertly crafted from durable 14404 (316L) stainless steel with an electropolished finish This robust enclosure offers ample space, measuring 914 mm in height, 610 mm in width, and 150 mm in depth Its practical design includes gland plates located at both the top and bottom, accommodating a variety of installation needs Ideal for versatile applications, this terminal box combines strength and functionality seamlessly.

Features and Benefits:

•Made of electropolished stainless steel 1.4404 (316L).

•IP66 protection when used within specified temperature limits.

•Impact resistance rating of 7 J for ATEX version and 10 J for standard version.

•Quarter-turn fastener lid attachment for easy access.

•Max payload capacity of 223 kg.

•Includes 4 welded-on mounting feet for secure installation.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore applications.

•Onshore applications.
