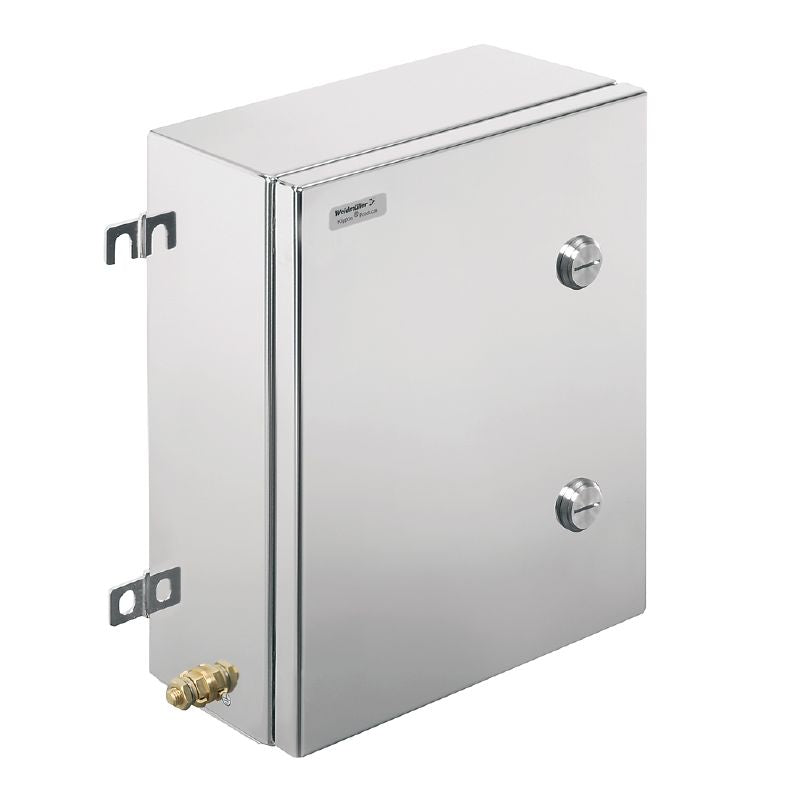

1200260000 - Klippon TB QL 400mm Stainless Steel Terminal Box Enclosure

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

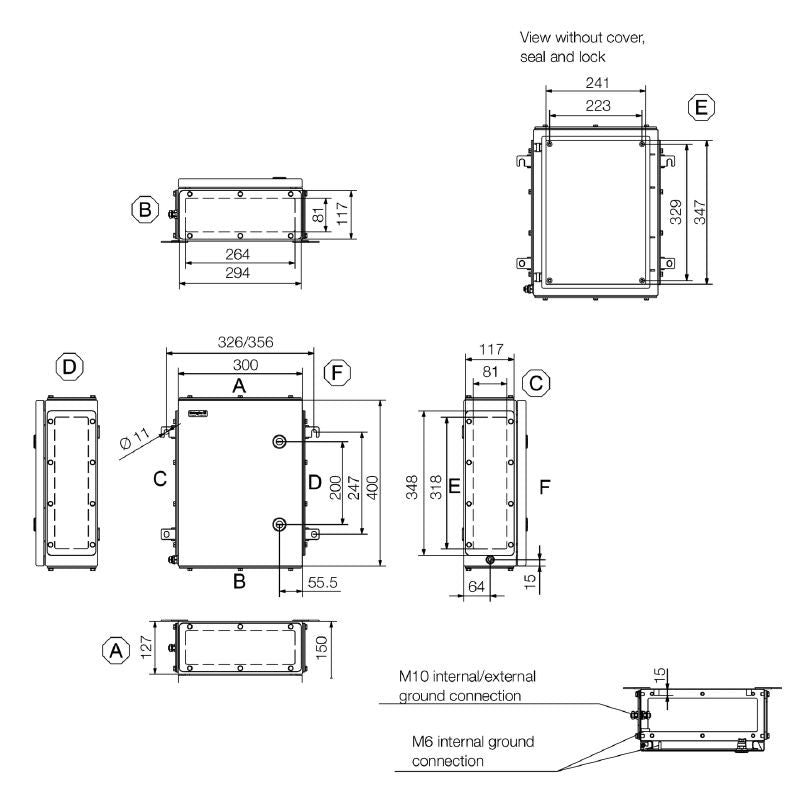

Introducing the KTB QL 403015 S4E4, also referred to as Klippon TB QL, an unfilled enclosure made from high-grade stainless steel This robust enclosure measures 400 mm in height, 300 mm in width, and 150 mm in depth It features gland plates strategically located at the top, bottom, and on both sides for versatile accessibility Constructed from stainless steel 14404 (316L), it boasts an attractive electropolished silver finish, combining aesthetics with durability.

Perfect for various applications, this enclosure promises both functionality and quality for your needs.

Features and Benefits:

•IP66 protection degree.

•Operating temperature range from -60 °C to 135 °C.

•Electropolished surface finish.

•Access openings of 347 mm in height and 241 mm in width.

•Mounting with welded-on feet.

•Includes a flange plate for added stability.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore uses.

Specifications:
