1200070000 - 306mm Stainless Steel Terminal Box for Explosive Environments

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

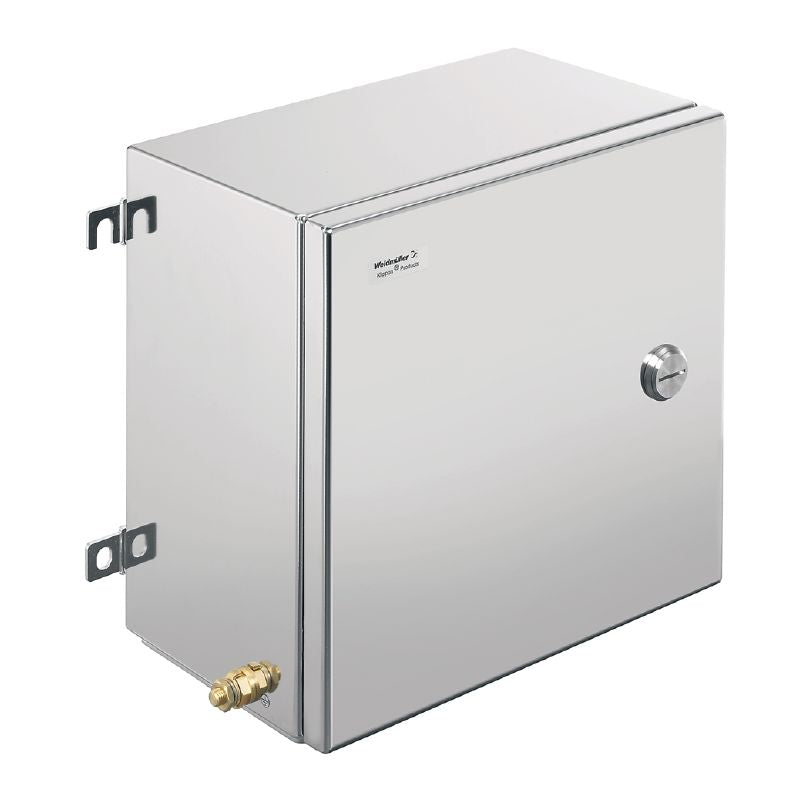

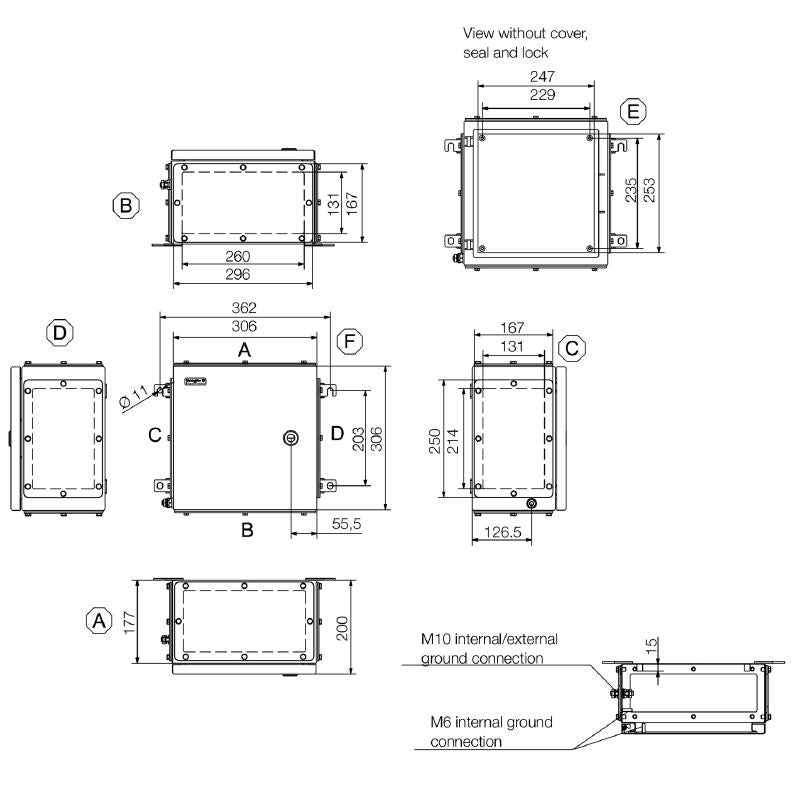

Introducing the KTB QL 303020 S4E1 terminal box, engineered for safe and dependable operation in explosive environments and various industrial applications such as oil, gas, and chemicals This robust enclosure is constructed from high-grade stainless steel 14404 (316L) and showcases dimensions of 306 mm in height, 306 mm in width, and 200 mm in depth With an electropolished finish, it includes bottom gland plates for added functionality.

Moreover, this product adheres to stringent regulatory standards, making it suitable for challenging conditions.

Features and Benefits:

•Gland plates positioned at the bottom.

•Electropolished surface finish for enhanced durability.

•Compliant with multiple certifications including RoHS and ATEX.

•Suitable for mounting with four welded-on mounting feet.

•High impact resistance with 10 J standard and 7 J for ATEX version.

•Compact dimensions for reduced space occupation.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore applications.

•Onshore applications.

Specifications:
