1196660000 - 914mm Stainless Steel Terminal Box, Electropolished, ATEX Approved

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

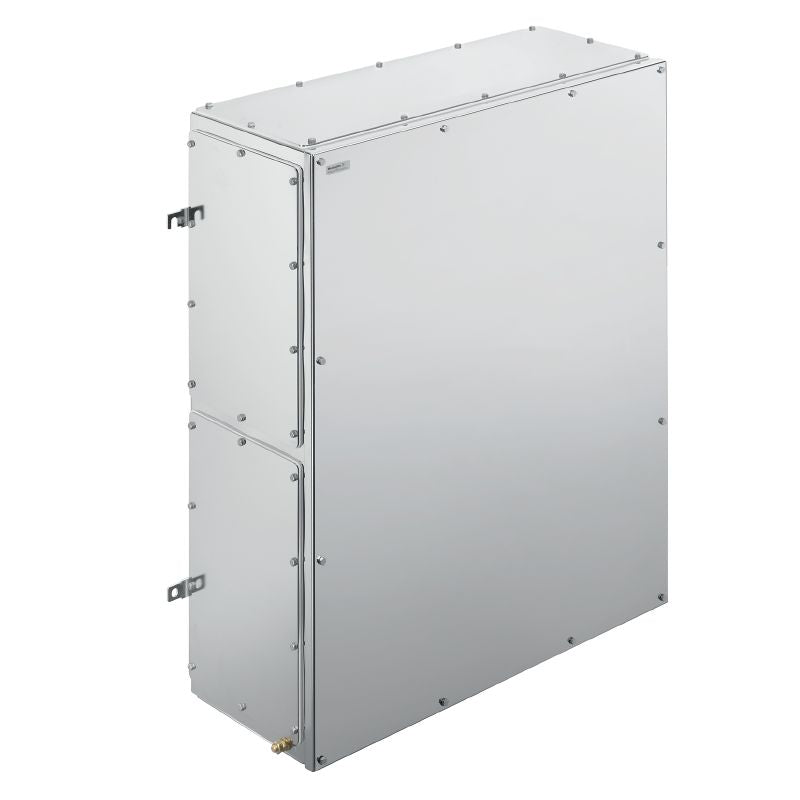

Discover the KTB FS 916120 S4E1, a robust terminal box crafted from high-grade electropolished stainless steel 14404 (316L) This enclosure, featuring a spacious interior, measures 914 mm in height, 610 mm in width, and 200 mm in depth Equipped with bottom gland plates, it is built to withstand tough conditions and adheres to stringent standards, including cULus and ATEX certifications, making it an excellent choice for potentially explosive environments.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L).

•Electropolished surface finish for enhanced corrosion resistance.

•Provides a maximum payload capacity of 223 kg.

•IP66 and IP67 rated for protection against dust and water ingress.

•Operating temperature range: -60 °C to 135 °C.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.
