1196620000 - 914mm Stainless Steel Terminal Box with Gland Plates

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

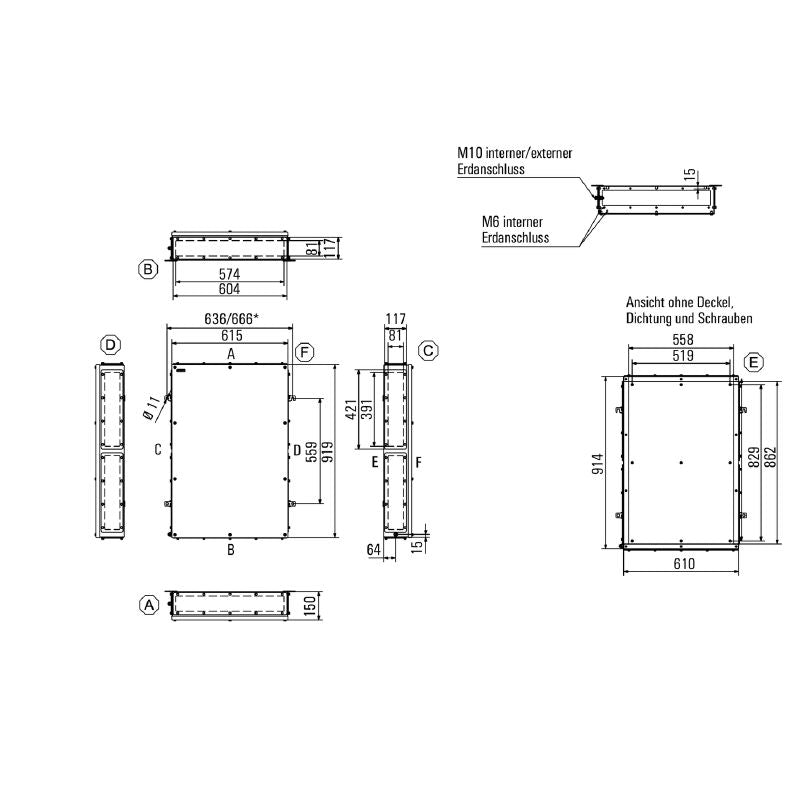

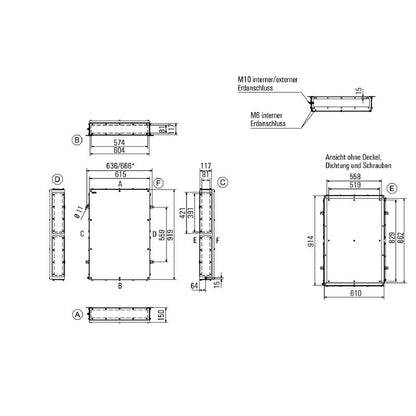

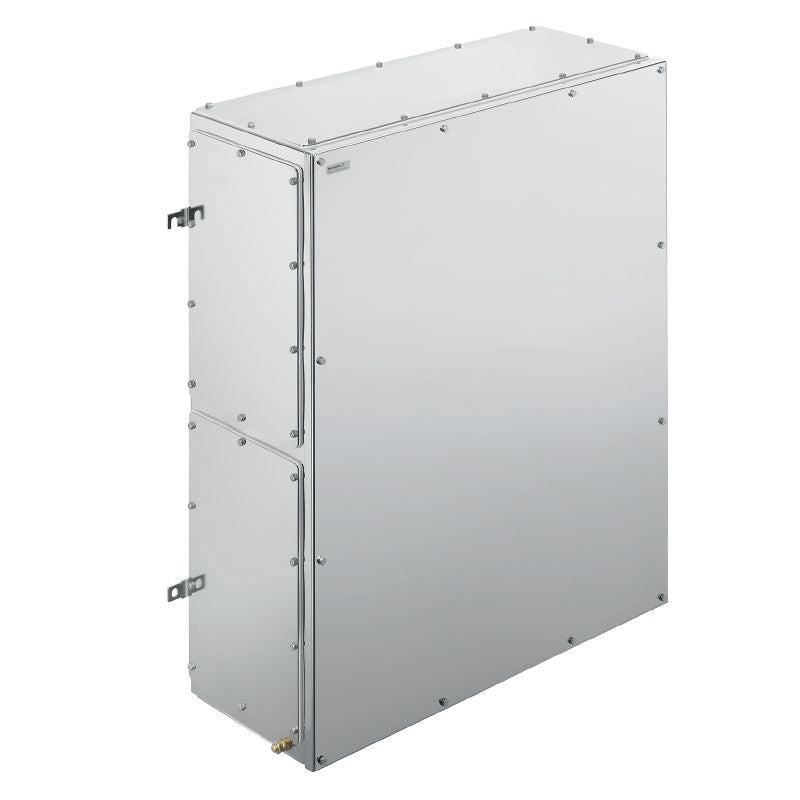

Introducing the Klippon TB FS (Terminal Box - Fixing Screw), an empty enclosure crafted from high-quality electropolished stainless steel 14404 (316L), tailored for diverse industrial uses This robust box measures 914 mm in height, 610 mm in width, and 150 mm in depth, featuring gland plates situated on both the top and bottom Adhering to RoHS regulations, it has also passed rigorous international standard tests, earning certifications including cULus and ATEX.

Features and Benefits:

•Manufactured from stainless steel 1.4404 (316L).

•Electropolished finish for enhanced corrosion resistance.

•Designed for explosive risk zones and chemical industry applications.

•Includes flange plate for added stability during installation.

•IP66 and IP67 protection classes for reliable performance in harsh environments.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
