1196490000 - 620mm Stainless Steel Terminal Box with Gland Plates

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

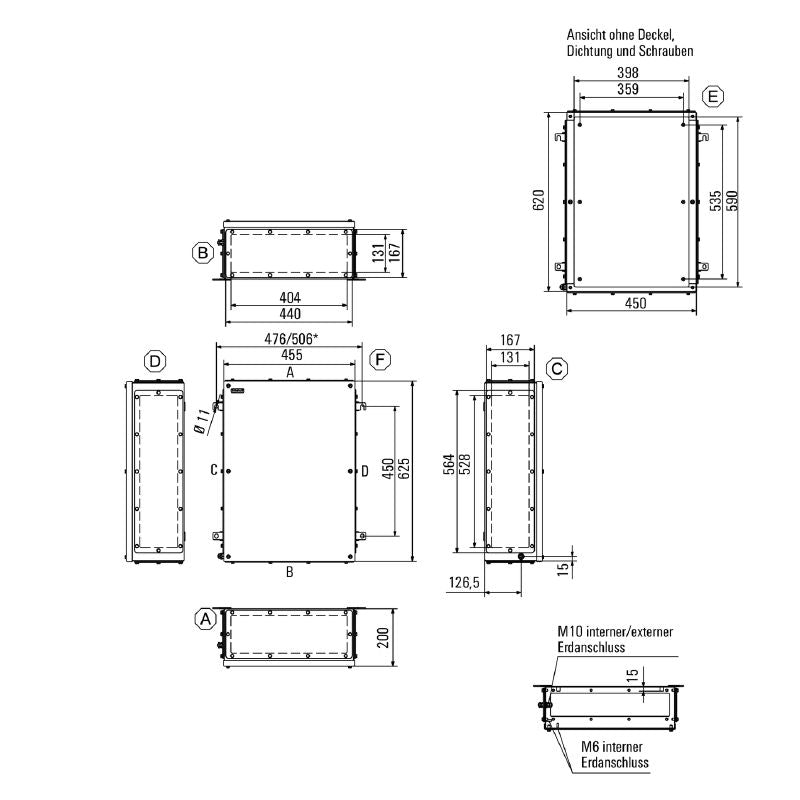

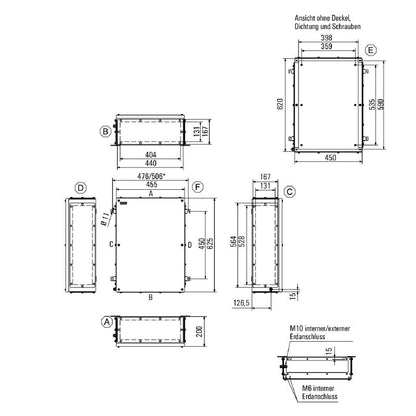

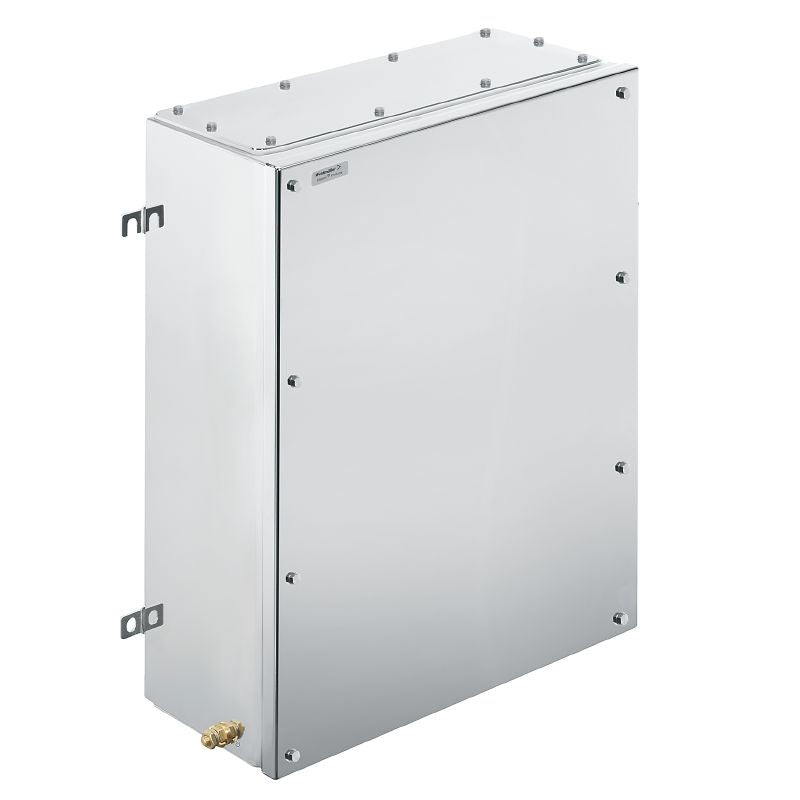

Introducing the Klippon TB FS (Terminal Box - Fixing Screw), an empty enclosure crafted from high-quality stainless steel With overall dimensions of 620 mm in height, 450 mm in width, and a depth of 200 mm, this sturdy box features a sleek electropolished finish in silver Designed for versatility, it includes gland plates located on the bottom, top, left, and right sides, offering numerous mounting options for various applications.

This terminal box also meets several important safety standards, including RoHS compliance, and it holds a UL file number of E256877, ensuring reliability and performance for your needs.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L), which is durable and corrosion-resistant.

•Electropolished surface for improved cleanliness and aesthetic.

•IP66 protection degree, which is ideal for harsh environments.

•Max. payload of 112 kg, suitable for substantial applications.

•Operating temperature range from -60 °C to 135 °C.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
