1196060000 - 400mm Stainless Steel Terminal Box, Electropolished Finish

1196060000 - 400mm Stainless Steel Terminal Box, Electropolished Finish

SKU: SKU: 1196060000 Download PDF

Variant:
  • 1196060000 - 400mm Stainless Steel Terminal Box, Electropolished Finish
Regular price Now $1,156.07
Regular price BEFORE   $0.00 Sale price Now $1,156.07
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

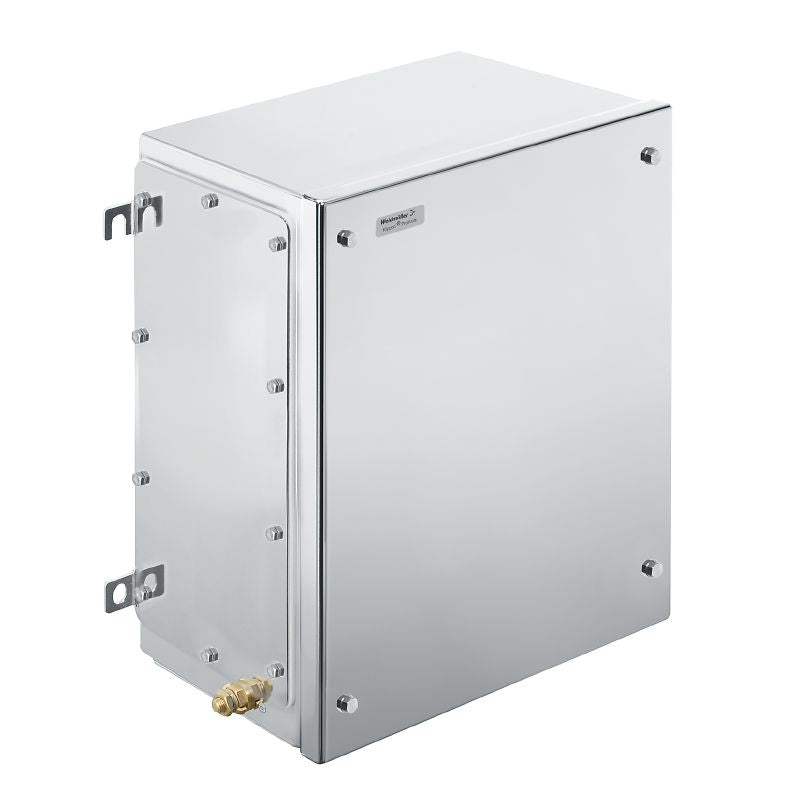

Discover the Klippon TB FS (Terminal Box - Fixing Screw), a spacious empty enclosure crafted from high-quality stainless steel Measuring 400 mm in height, 300 mm in width, and 200 mm in depth, this enclosure is both sturdy and practical for various applications Made from stainless steel 14404 (316L), it boasts an electropolished silver finish, making it highly resistant to corrosion and enhancing its durability for demanding environments.

Features and Benefits:

    •Constructed from stainless steel for high durability.

    •Electropolished finish for improved corrosion resistance.

    •IP66 protection degree, ensuring enclosure integrity.

    •Suitable for explosive risk zones and various industrial applications.

    •Explosive risk zone.

    •Process industry.

    •Oil and gas industry.

    •Chemical industry.

    •Offshore.

    •Onshore.

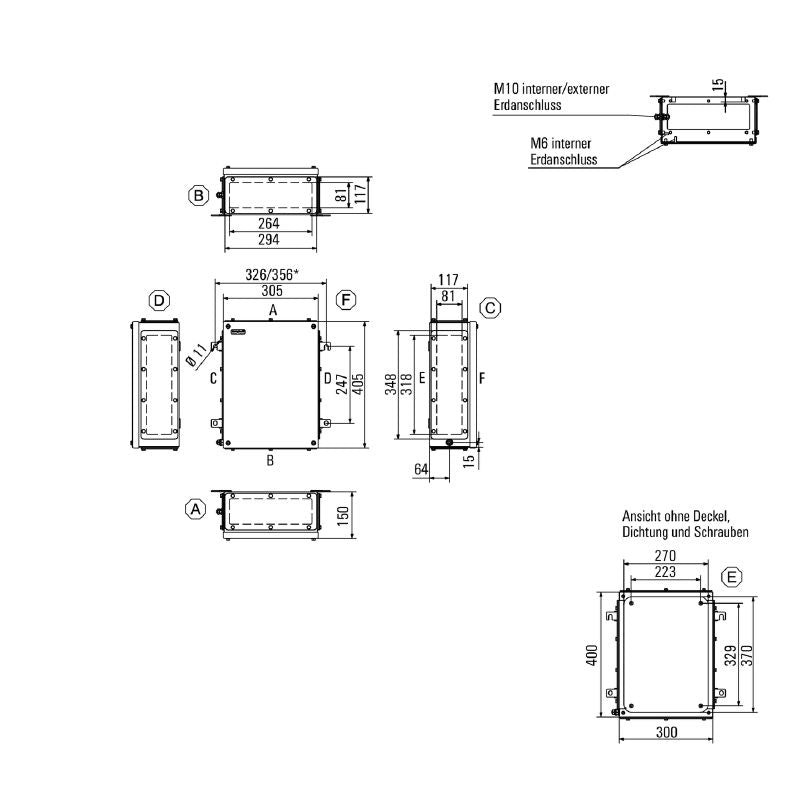

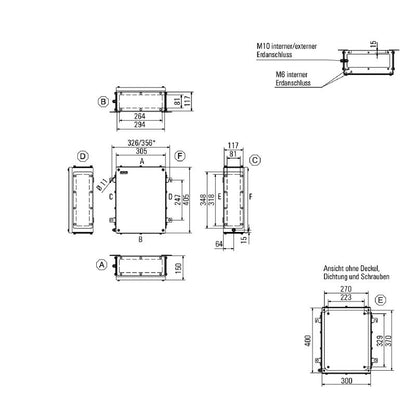

Specifications:

 Depth 200 mm
 Height 400 mm
 Width 300 mm
 Operating temperature (max) 135 °C
 Operating temperature (min) -60 °C
 IP protection IP66
 Material thickness of enclosure 1.5 mm
 Max payload 48 kg
 Approval conditions ATEX, cULus, DNV, IECEX, INMETRO
 Surface finish electropolished
 Gland plates Bottom
