1195910000 - 350mm Stainless Steel Terminal Box with Gland Plates

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

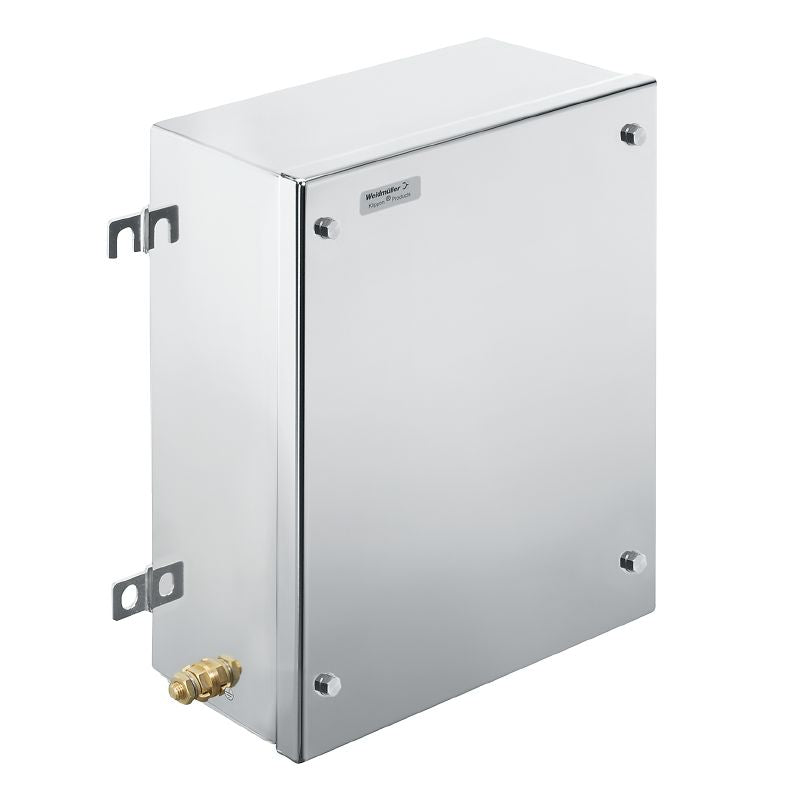

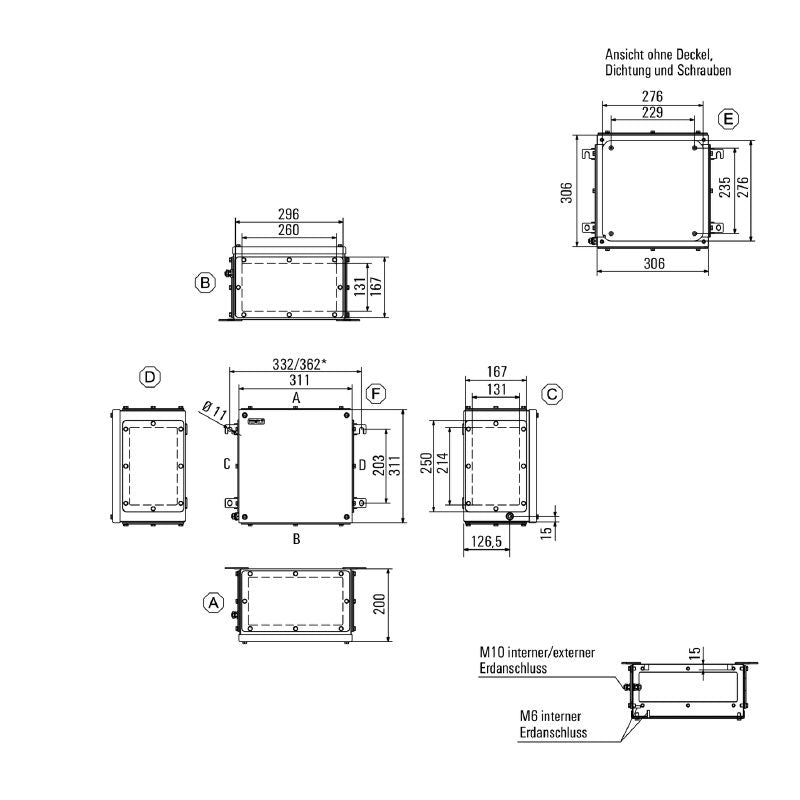

Introducing the Klippon TB FS, a reliable terminal box that provides an empty enclosure crafted from durable stainless steel With a height of 350 mm, a width of 260 mm, and a depth of 150 mm, this enclosure is built to last, featuring high-quality stainless steel 14404 (316L) with an attractive electropolished silver finish It also includes gland plates positioned at the bottom for added functionality.

This product holds several important certifications, including RoHS and cULus, ensuring compliance and safety for various applications.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L), electropolished.

•Includes bottom gland plates.

•Approvals for various certifications including ATEX and IECEx.

•Max payload capacity of 36 kg.

•Operating temperature range from -60 °C to 135 °C.

•Protection class rating of IP66.

•Impact resistance of 7 J for ATEX version and 10 J for standard version.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore environments.

Specifications:
