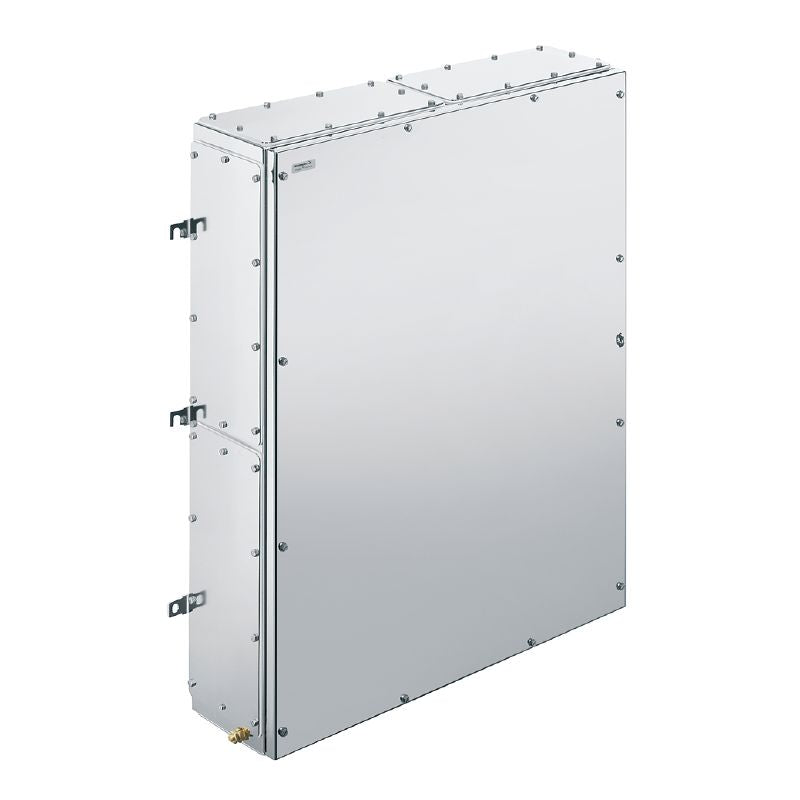

1195640002 - Stainless Steel Terminal Box 980mm for Explosive Environments

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

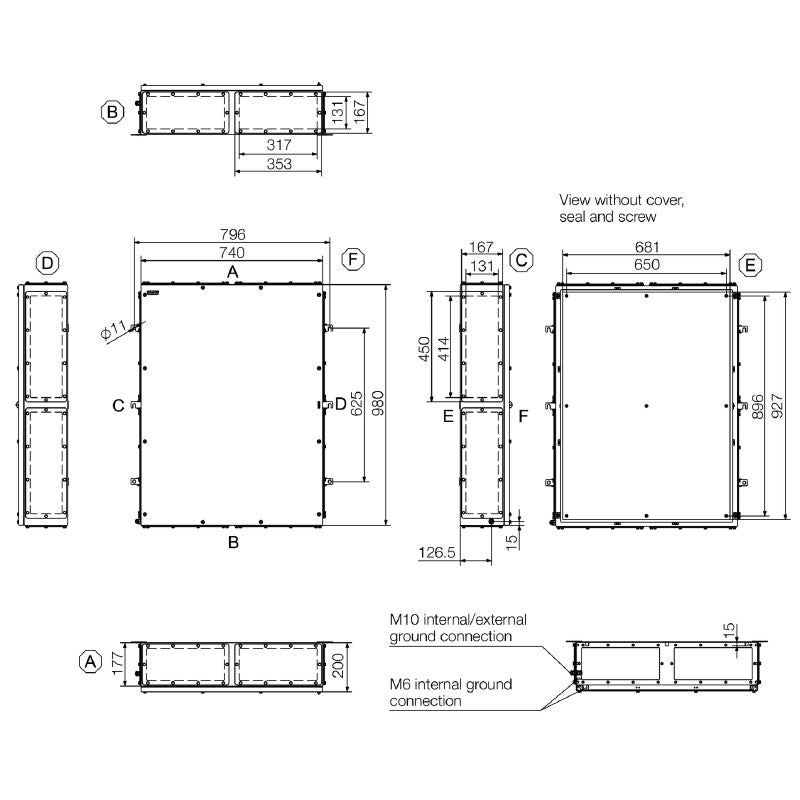

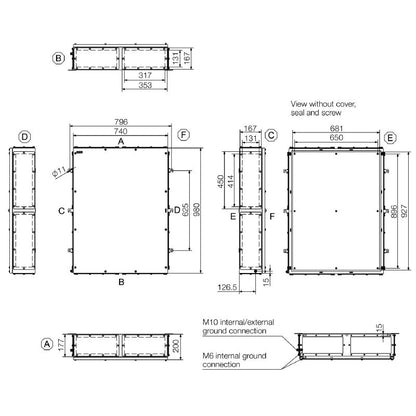

Introducing the Klippon TB MH, a robust empty enclosure crafted from high-grade stainless steel 14404 (316L) With dimensions of 980 mm in height, 740 mm in width, and 200 mm in depth, this enclosure is ideal for a range of applications It features gland plates located at the bottom, top, left, and right, ensuring versatile connectivity This product meets ROHS standards and carries a cULus certification (E243298), making it compliant with safety regulations.

Its construction is suited for environments with explosive risks, particularly in the oil, gas, and chemical sectors The enclosure is engineered to endure a wide temperature range from -60 °C to 135 °C while maintaining an excellent IP66 protection rating when installed correctly Accessing the interior is made easy with an opening that measures 927 mm in height and 681 mm in width, complemented by a lid that opens at an angle of 130°.

This enclosure is the perfect solution for demanding and hazardous workspace requirements.

Features and Benefits:

•Made of untreated stainless steel 1.4404 (316L).

•Access openings for easy maintenance.

•Designed for explosive risk zones in various industries.

•Includes gasketed lid and multiple cable gland options.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
