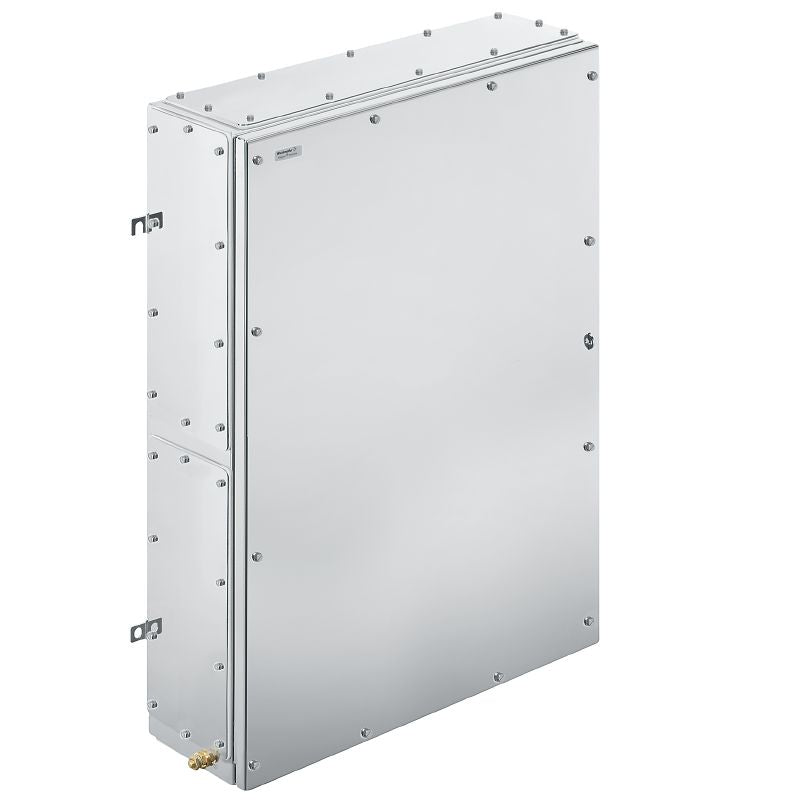

1195590000 - Stainless Steel 914mm Terminal Box with IP66 Protection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Klippon TB MH (Terminal Box - Multi Hinge), a versatile and robust enclosure suited for a range of applications Constructed from high-grade stainless steel 14404 (316L), this empty terminal box boasts a height of 914 mm, a width of 610 mm, and a depth of 200 mm Designed with gland plates on the bottom, top, left, and right sides, it provides excellent functionality and adaptability With a protective rating of IP66, this enclosure is safe to use in environments with temperatures up to 105 °C.

Additionally, it holds multiple certifications including ATEX, UL, and cULus, ensuring reliability for various professional applications.

Features and Benefits:

•Made from stainless steel 1.4404 (316L), electropolished.

•IP66 protection degree.

•Multiple mounting options with 4 welded-on feet.

•Access openings for ease of installation.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
