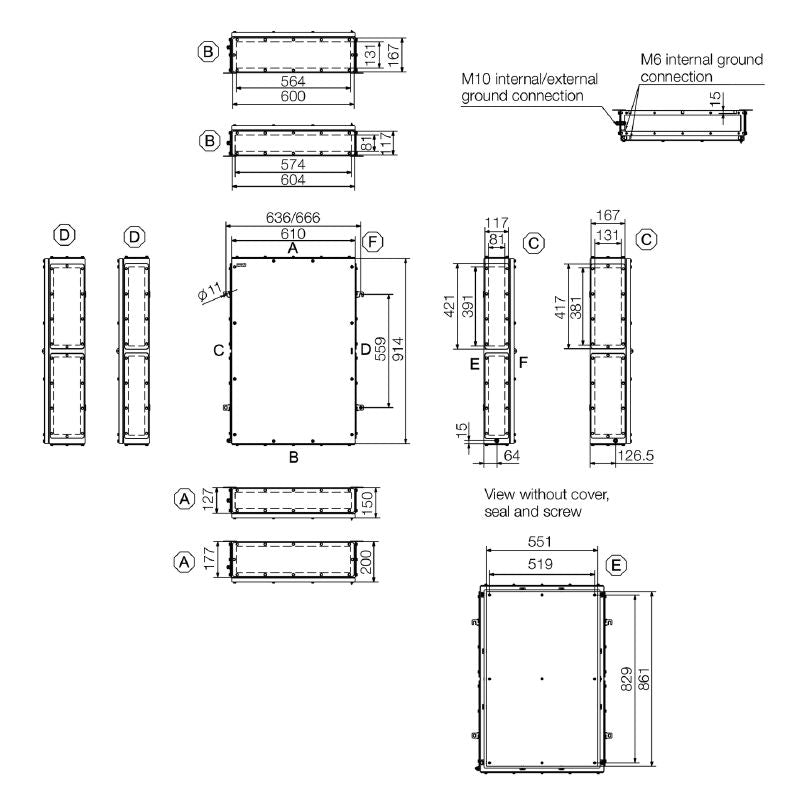

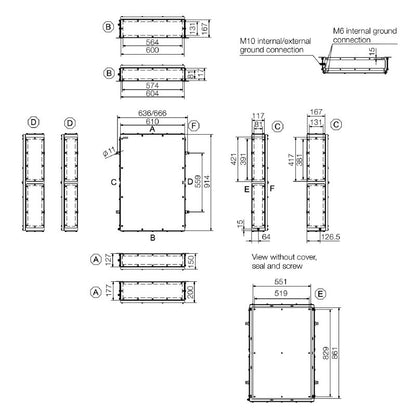

1195580001 - Multi Hinge Stainless Steel Terminal Box, 914x610x200mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

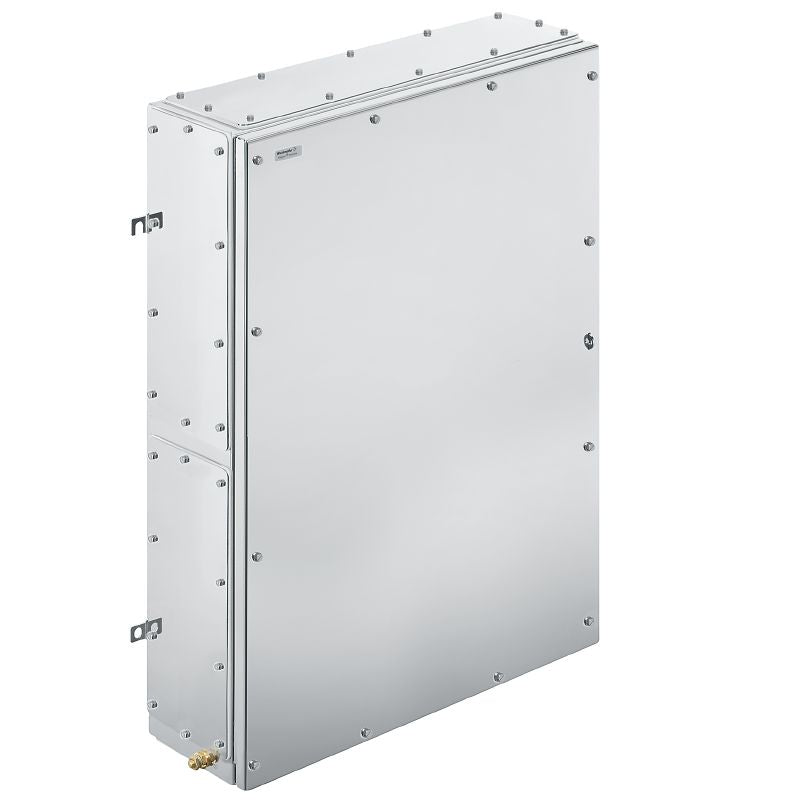

Introducing the KTB MH 916120 S2E3 multi-hinge terminal box, expertly crafted for diverse industrial uses Made from high-quality electropolished stainless steel (14301), this empty enclosure boasts impressive durability and resistance to environmental factors The dimensions of the box are 914 mm in height, 610 mm in width, and 200 mm in depth, making it suitable for various applications It features gland plates located at the bottom, left, and right sides for enhanced versatility.

This terminal box meets multiple safety standards, including cULus and RoHS compliance, and operates effectively within a temperature range of -60 °C to 135 °C.

Features and Benefits:

•Constructed from stainless steel 1.4301 (304), electropolished.

•Includes gland plates on bottom, left, and right.

•IP66 protection degree.

•Impact resistance of 7 J (ATEX version) and 10 J (standard version).

•Maximum payload of 223 kg.

•Access openings measuring 861 mm in height and 551 mm in width.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
