1195540002 - Stainless Steel Terminal Box, 914x610x150mm, Multi-Hinge Access

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

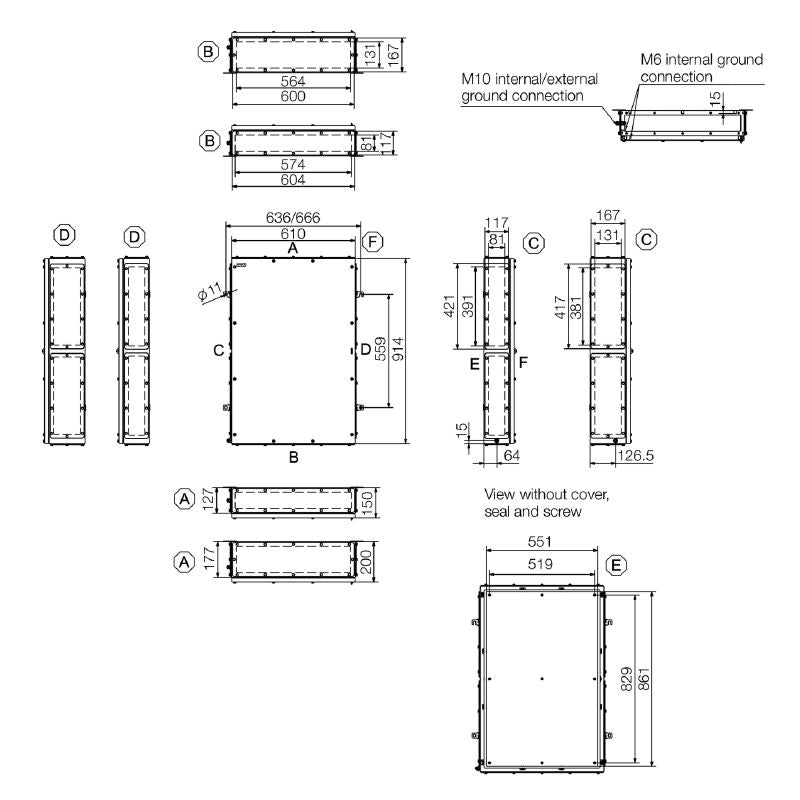

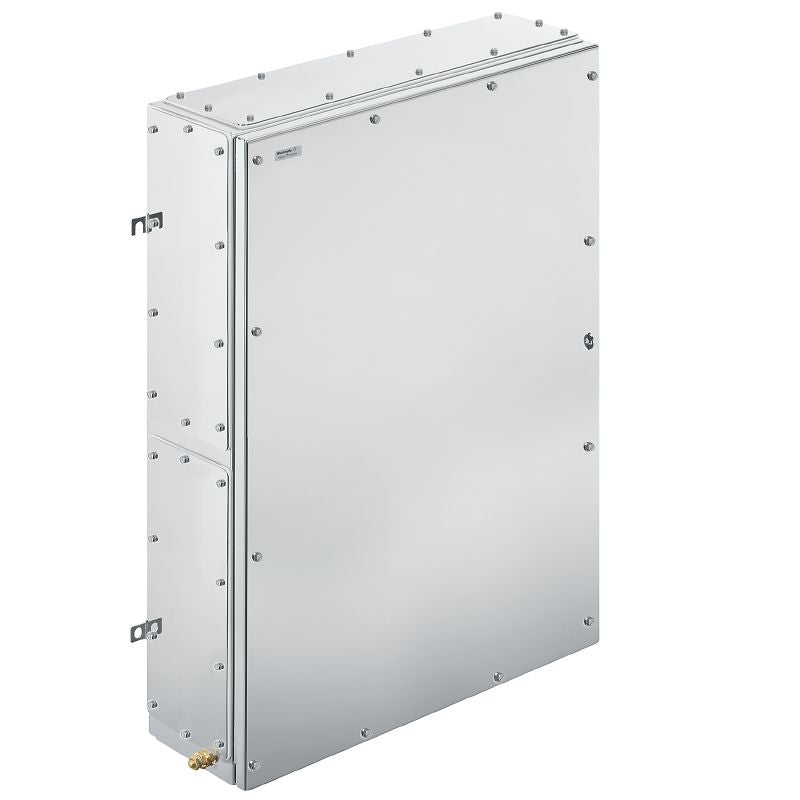

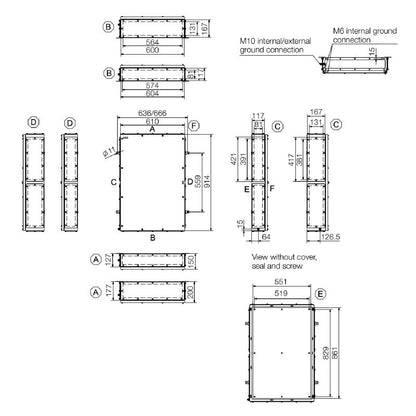

Introducing the Klippon TB MH, an empty terminal box tailored for a variety of uses With dimensions measuring 914 mm in height, 610 mm in width, and 150 mm in depth, this enclosure is crafted from high-grade stainless steel (14404 / 316L) for exceptional durability It boasts gland plates at multiple access points—bottom, top, left, and right—and features a sizeable access opening of 861 mm in height and 551 mm in width.

Weighing significantly due to its robust construction, this terminal box is designed to handle operating temperatures from -60 °C to 135 °C Furthermore, it meets several important certifications, ensuring safety and reliable performance across various environments.

Features and Benefits:

•Made from stainless steel 1.4404 (316L).

•IP66 protection class.

•Impact resistance of 7 J for ATEX version.

•Lid with 130 degree opening angle.

•Includes a flange plate for mounting.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
