1195520003 - 914mm Stainless Steel Terminal Box with Multi-Hinge Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

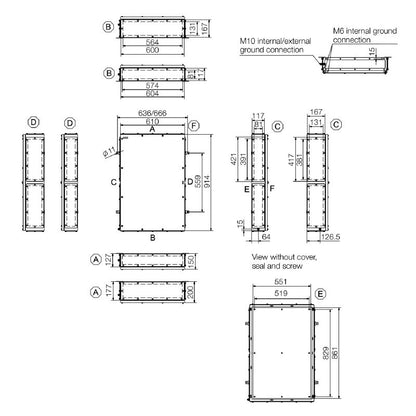

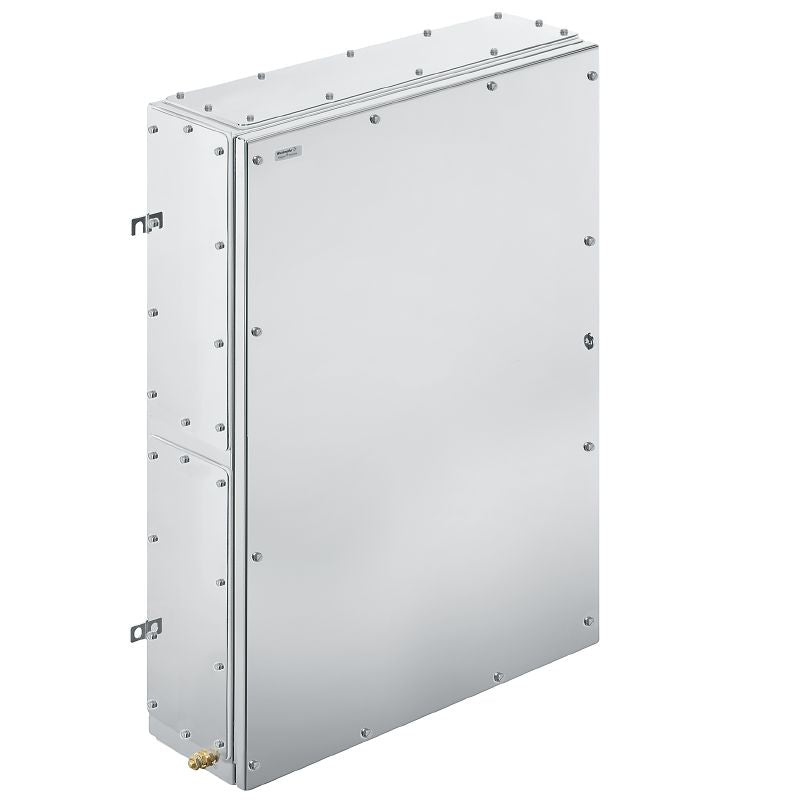

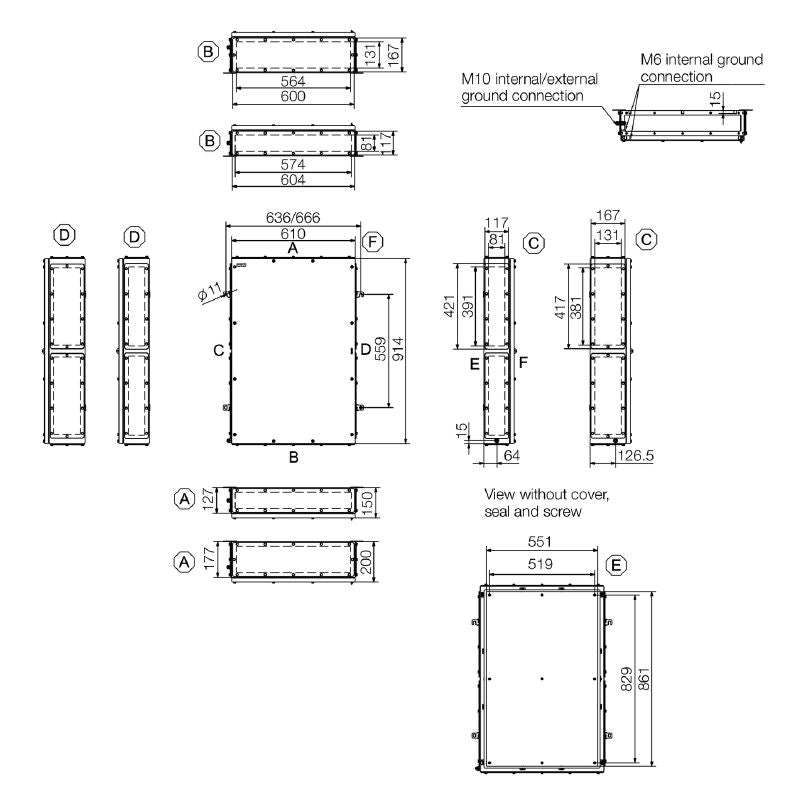

Introducing the KTB MH 916115 S2N2 terminal box, expertly crafted from high-quality stainless steel This versatile enclosure features a unique multi-hinge design and comes empty, offering ample space for your needs With dimensions of 914 mm in height, 610 mm in width, and 150 mm in depth, it is designed to accommodate various applications Constructed from untreated stainless steel 14301 (304), this enclosure is both sturdy and reliable.

Additionally, it is equipped with gland plates at the top and bottom for easy connectivity Ideal for industrial and commercial use, the KTB MH 916115 S2N2 combines functionality with strength.

Features and Benefits:

•RoHS compliant.

•Mounting dimensions include a height of 559 mm and a width of 636 mm.

•Max payload capacity is 223 kg.

•Operating temperatures range from -60 °C to 135 °C.

•Impact resistance: 7 J for ATEX version and 10 J for standard version.

•Includes a seal material made of silicone.

•Used in explosive risk zones.

•Applicable in the process industry.

•Suited for oil and gas industry.

•Suitable for chemical industry.

•Ideal for offshore and onshore usages.
