1195480000 - 762mm Stainless Steel Multi-Hinge Terminal Box, Electropolished Finish

1195480000 - 762mm Stainless Steel Multi-Hinge Terminal Box, Electropolished Finish

SKU: 1195480000 Download PDF

Variant:
  • 1195480000 - 762mm Stainless Steel Multi-Hinge Terminal Box, Electropolished Finish
Now $3,321.57
BEFORE   $0.00 Now $3,321.57
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

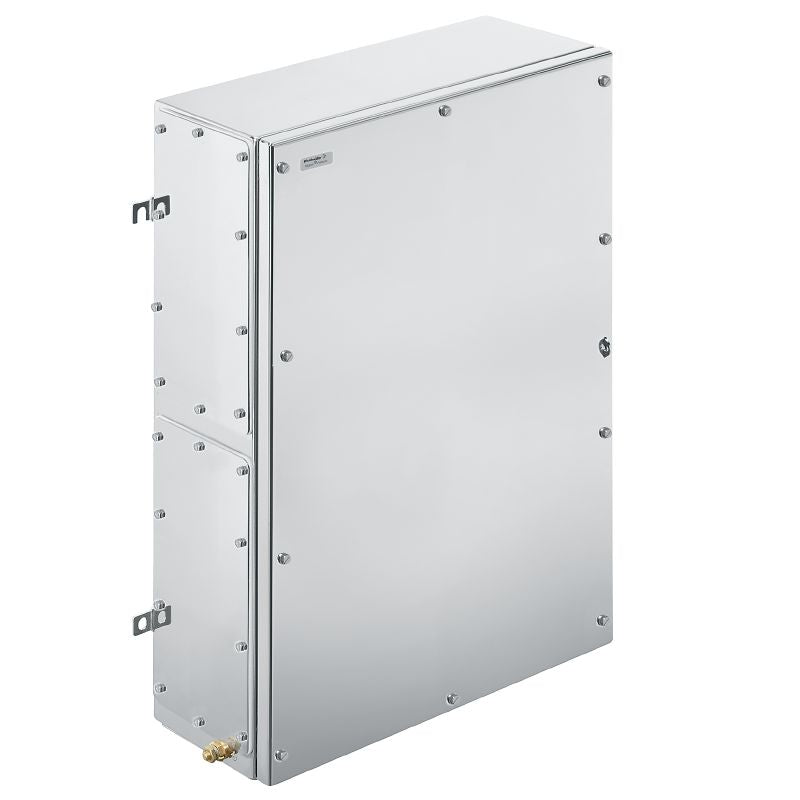

Introducing the KTB MH 765020 S4E3 multi-hinge terminal box, expertly crafted from high-quality stainless steel This empty enclosure measures 762 mm in height, 508 mm in width, and 200 mm in depth, making it a versatile solution for your wiring needs Featuring gland plates on the bottom, left, and right sides, it offers convenient access for cable management The enclosure is made from stainless steel 1.

4404 (316L), which has been electropolished to achieve a stunning silver finish, ensuring both durability and a sleek appearance.

Features and Benefits:

    •ROHS compliant.

    •Explosive risk zone usage.

    •Protection class of IP66 and IP67.

    •Embedded with a silicone seal material.

    •Electropolished surface finish.

    •Designed for various industries including oil and gas, chemical, and offshore.

    •Max payload supported is 155 kg.

    •Explosive risk zone.

    •Process industry.

    •Oil and gas industry.

    •Chemical industry.

    •Offshore.

    •Onshore.

Specifications:

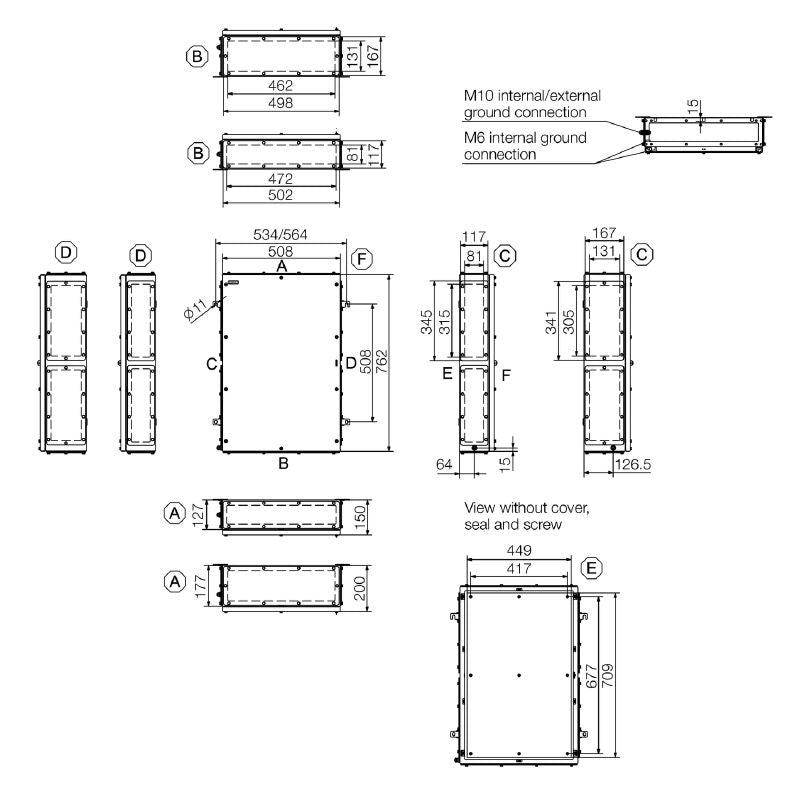

 Dimensions 762 mm x 508 mm x 200 mm
 Mounting dimensions height 508 mm, width 564 mm
 Operating temperature range -60 °C to 135 °C
 Access opening dimensions height 709 mm, width 449 mm
 Material thickness of the enclosure 1.5 mm
 Material thickness of the cover 1.5 mm
 Material thickness of the flange 3 mm
 Number of lid screws 10
 Max payload 155 kg
 Protection degree IP66, IP67
 Impact resistance 7 J ATEX version, 10 J standard version
 Approval conditions ATEX, CCoE, cULus, DNV, IECEX, INMETRO, KC
 Certificate numbers {'cULus': 'E243298', 'ATEX': 'PTB11ATEX2019', 'DNV': 'TAE000013S', 'IECEX': 'IECEXPTB11.0071', 'INMETRO': 'IEX13.0006U'}
