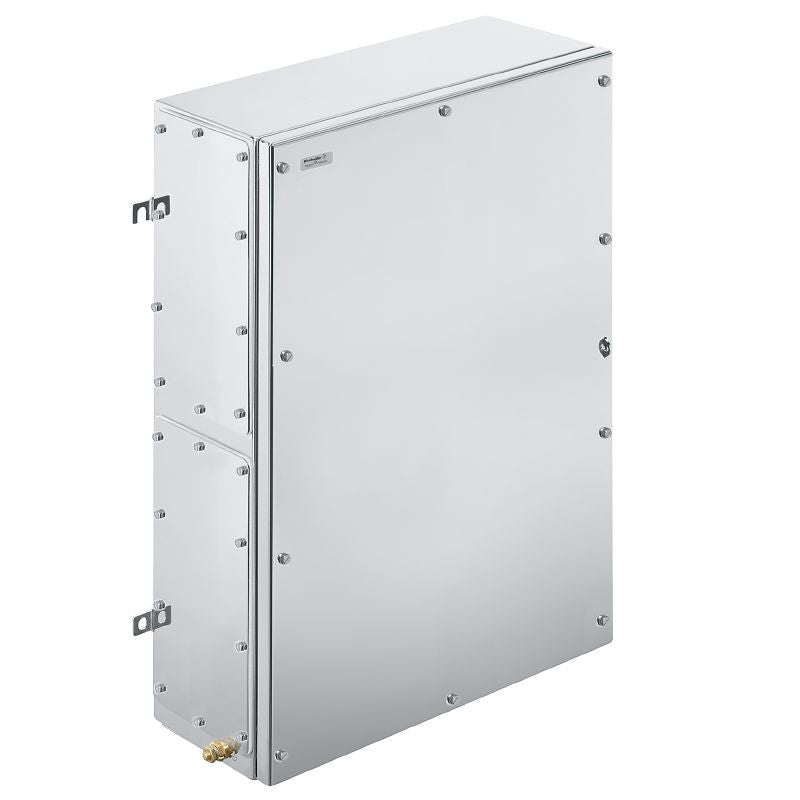

1195430002 - Stainless Steel 762mm Terminal Box for Explosive Environments

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Klippon TB MH (Multi Hinge Terminal Box), a robust enclosure built from 14404 (316L) stainless steel, untreated for a versatile finish With dimensions of 762 mm in height, 508 mm in width, and 150 mm in depth, this terminal box is designed for reliability and safety It includes gland plates positioned at the bottom and on both sides, making it practical for various installations Recognized for its compliance with numerous safety certifications such as ATEX and cULus, this enclosure is ideal for environments with explosive hazards.

It operates effectively within a temperature range of -60 °C to 135 °C, catering to diverse industrial applications in sectors like oil, gas, chemicals, and both offshore and onshore operations.

Features and Benefits:

•Constructed from untreated stainless steel 1.4404 (316L).

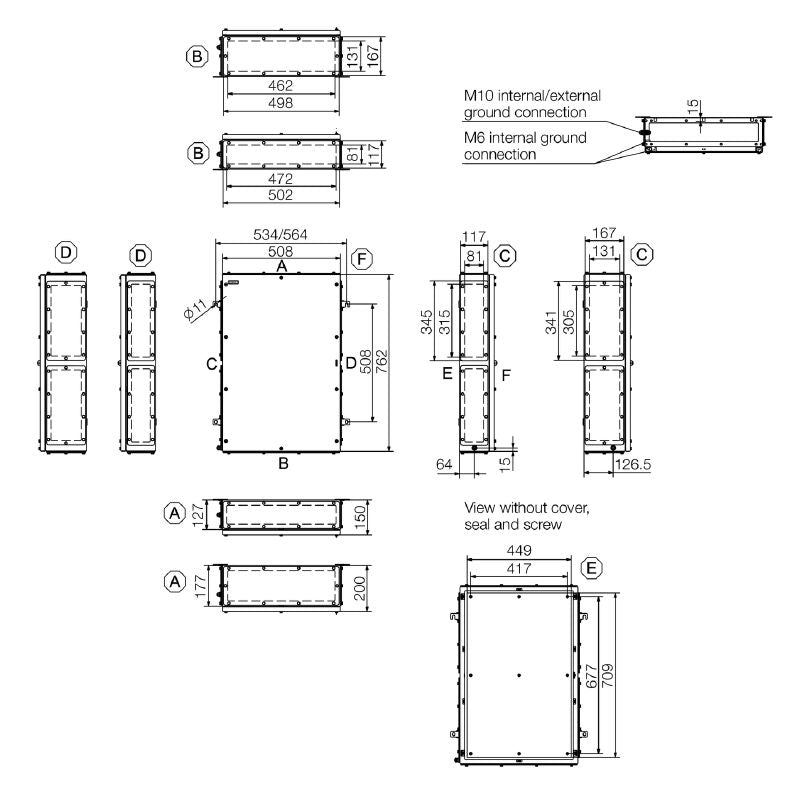

•Access openings measure 709 mm in height and 449 mm in width.

•Hinged lid for easy access.

•Complies with various standards ensuring safety and performance.

•Impact resistance up to 10 J in standard version.

•Gland plates located on multiple sides for flexible mounting options.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore operations.

•Onshore operations.

Specifications:
