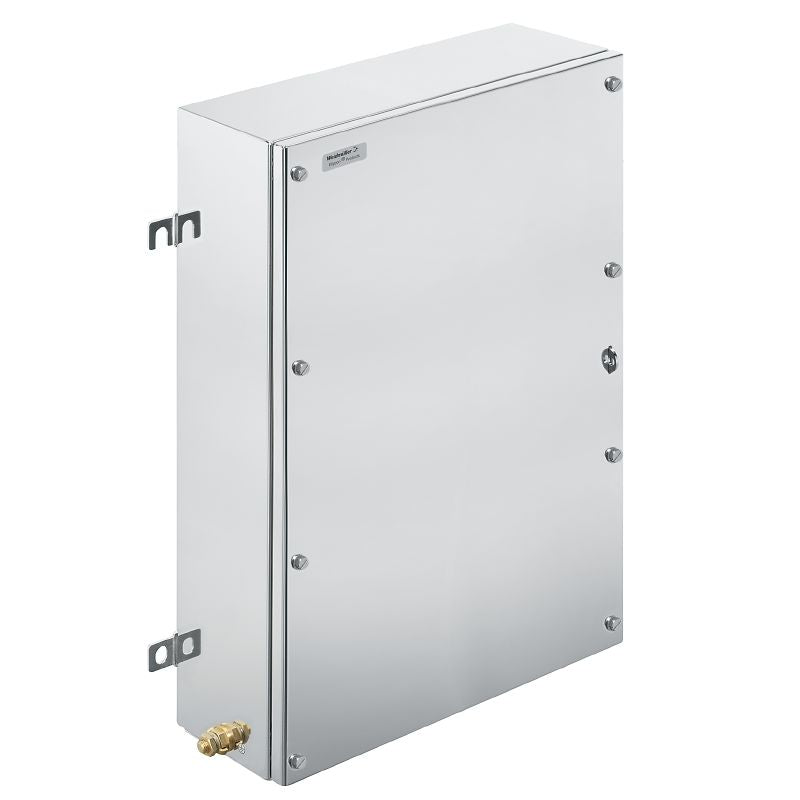

1195240003 - Stainless Steel Terminal Box 550x350x150mm with Multi Hinges

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Klippon TB MH Multi Hinge Terminal Box, expertly crafted from stainless steel and featuring an empty enclosure design With dimensions of 550 mm in height, 350 mm in width, and 150 mm in depth, this terminal box is both compact and sturdy It adheres to RoHS guidelines and holds various certifications, including cULus and ATEX, ensuring its reliability and safety Equipped with multiple gland plates located on the bottom, top, left, and right sides, this enclosure offers versatile connectivity options.

The design includes several cable glands for efficient cable management For impact resistance, the ATEX variant withstands forces of up to 7 J, while the standard model boasts an impressive 10 J rating, making it a robust choice for various applications.

Features and Benefits:

•Compliant with RoHS.

•Constructed from untreated stainless steel 1.4301 (304).

•Available with multiple cable gland options.

•Impact resistance ratings of up to 10 J.

•IP66 and IP67 protection degrees.

•Designed for use in explosive environments.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore applications.

Specifications:
