1195160003 - 480mm Stainless Steel Terminal Box | RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

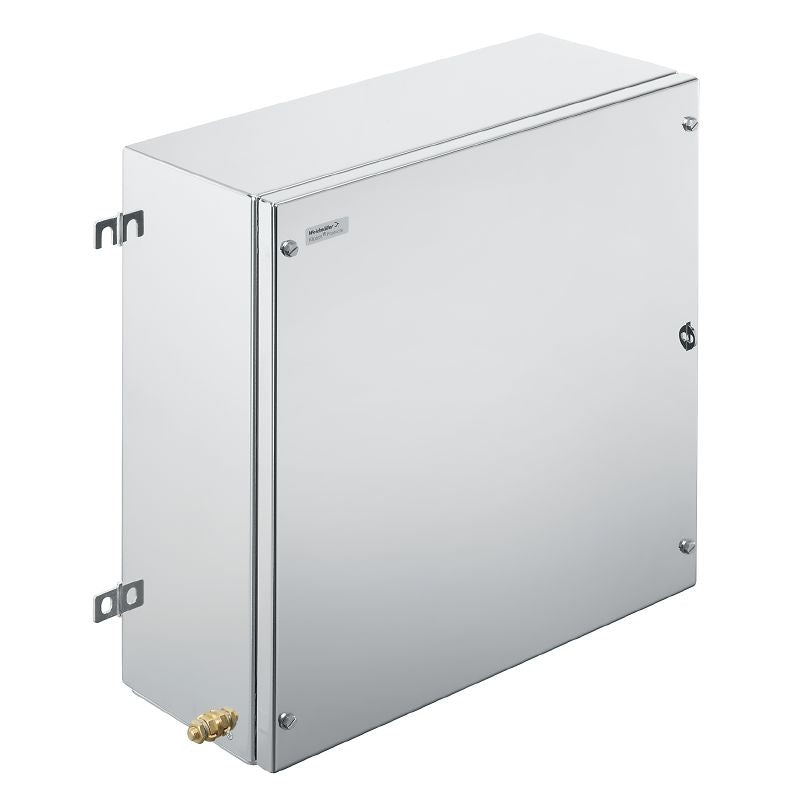

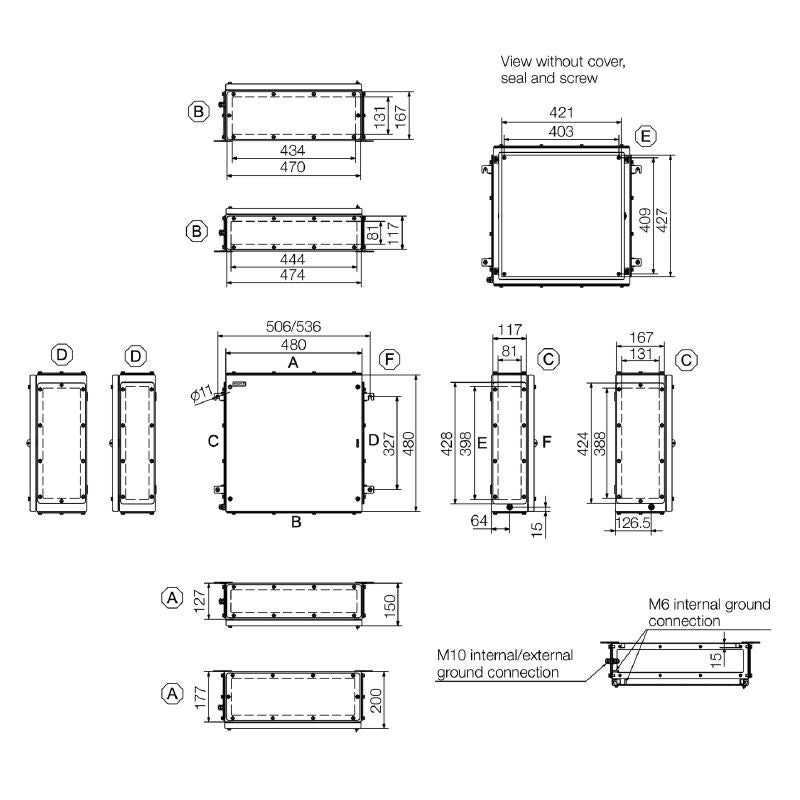

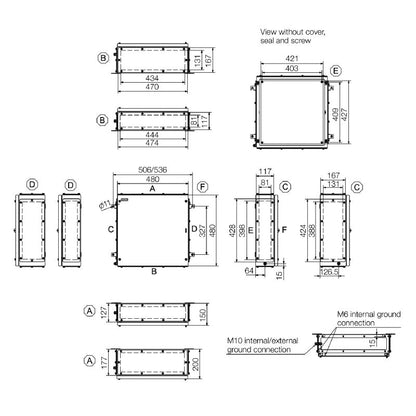

Introducing the Klippon TB MH empty enclosure, expertly crafted from durable stainless steel to meet RoHS compliance With dimensions of 480 mm high, 480 mm wide, and 200 mm deep, this enclosure features gland plates at the bottom for easy integration Made from untreated stainless steel type 14301 (304), it is designed to withstand various industrial conditions Capable of operating in temperatures ranging from -60 °C to 135 °C, this enclosure is suitable for environments with explosive hazards, making it an excellent choice for the oil, gas, and chemical sectors, both offshore and onshore.

Features and Benefits:

•Built with stainless steel 1.4301 (304).

•IP66 protection degree.

•Approval certificates from multiple standards including ATEX and UL 508A.

•Max payload of 92 kg.

•Impact resistance of 7 J for ATEX version and 10 J for standard version.

•Design includes 4 welded-on mounting feet with holes for easier installation.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
