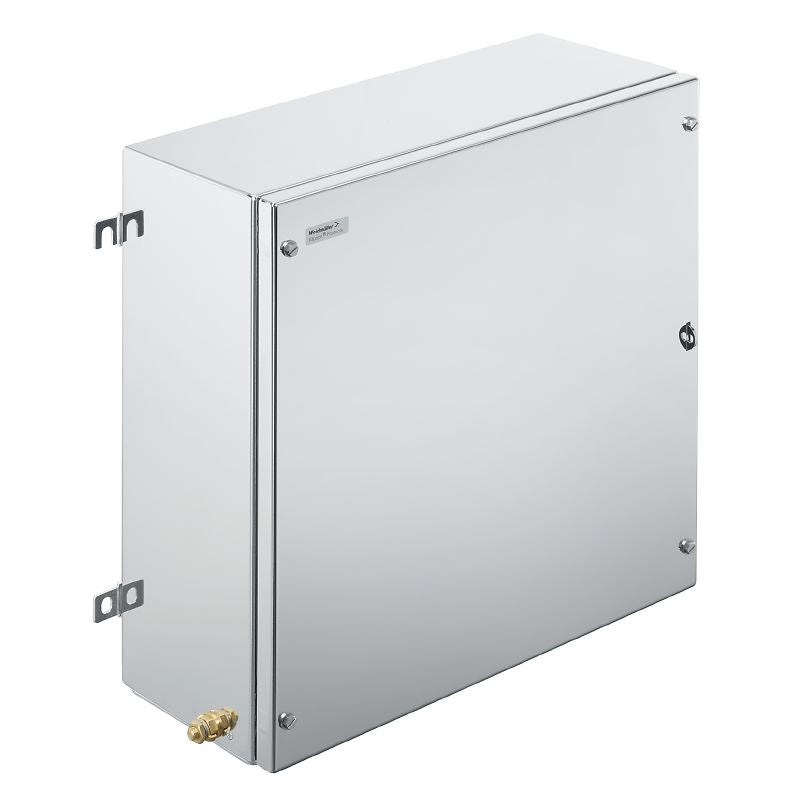

1195160000 - Stainless Steel 480x480x200mm Multi-Hinge Terminal Box

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Klippon TB MH, a versatile multi-hinge terminal box that meets diverse requirements Made from high-grade stainless steel 14404 (316L) with an electropolished finish, this robust enclosure has dimensions of 480 mm in height, 480 mm in width, and 200 mm in depth Equipped with bottom gland plates, it is built to withstand challenging environments while conforming to IP66 protection standards.

Additionally, it holds several certifications, including cULus, and is designed for operation in temperatures up to 105 °C, making it a reliable choice for various applications.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L).

•Electropolished finish.

•Suitable for explosive risk zones.

•Approvals including ATEX, cULus, and IECEx.

•Impact resistance of 7 J for ATEX version.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore applications.

Specifications:
