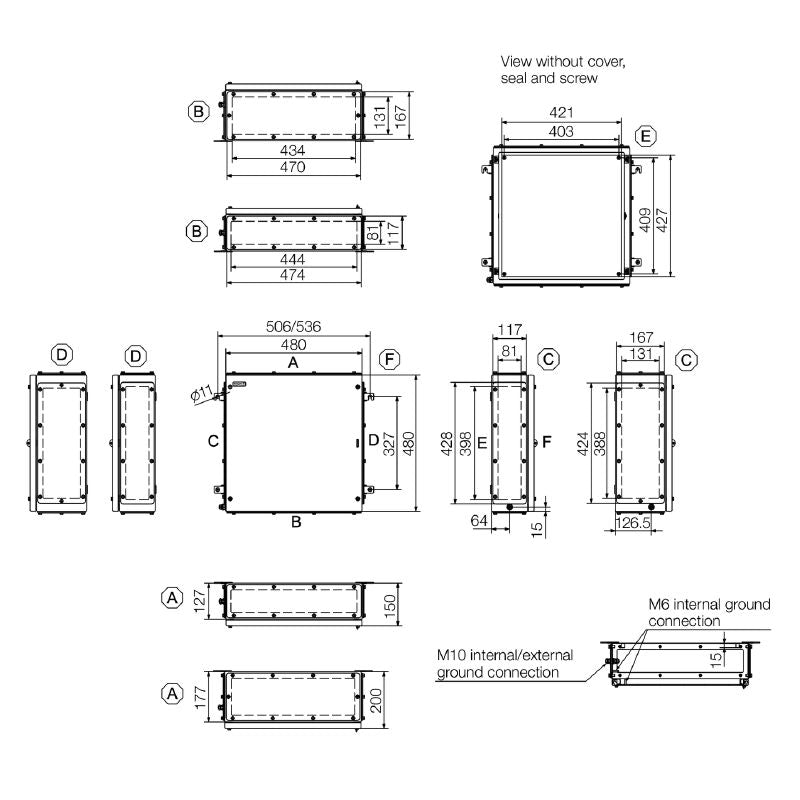

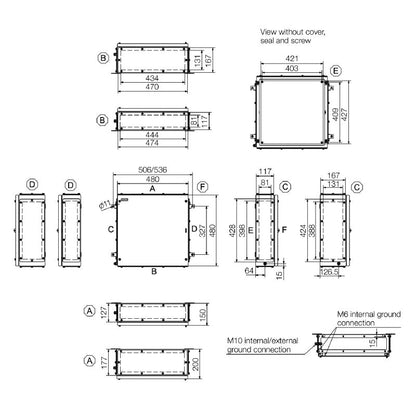

1195140003 - 480mm Stainless Steel Multi-Hinge Terminal Box, Empty Enclosure

1195140003 - 480mm Stainless Steel Multi-Hinge Terminal Box, Empty Enclosure

SKU: 1195140003 Download PDF

Variant:
  • 1195140003 - 480mm Stainless Steel Multi-Hinge Terminal Box, Empty Enclosure
Now $2,631.59
BEFORE   $0.00 Now $2,631.59
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

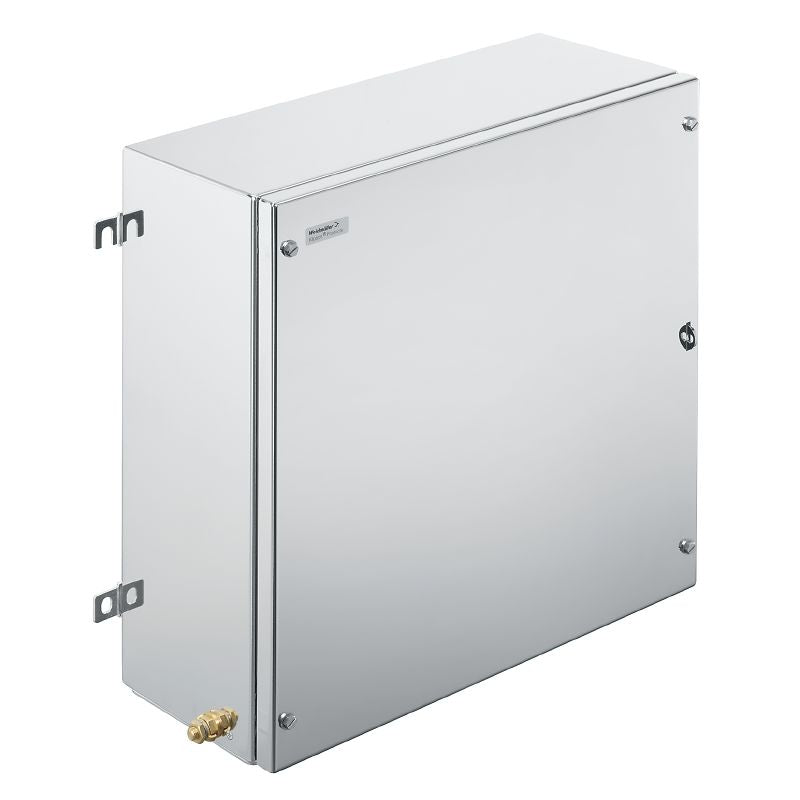

Introducing the KTB MH 484815 S2N4, a versatile empty multi-hinge terminal box crafted from untreated stainless steel (grade 14301, also known as 304) This robust enclosure is engineered for diverse applications and measures 480 mm in height, 480 mm in width, and 150 mm in depth Featuring gland plates on the bottom, top, left, and right sides, it offers convenient installation options and compliance with RoHS regulations.

Additionally, this product boasts various approvals, including ATEX, cULus, and IECEX, ensuring reliability and safety across multiple environments.

Features and Benefits:

    •Empty enclosure for flexible use.

    •Constructed of untreated stainless steel.

    •Compliant with RoHS and other industrial standards.

    •Explosive risk zone.

    •Process industry.

    •Oil and gas industry.

    •Chemical industry.

    •Offshore environments.

    •Onshore environments.

Specifications:

 Depth 150 mm
 Height 480 mm
 Width 480 mm
 Operating temperature, max. 135 °C
 Operating temperature, min. -60 °C
 Protection class (UL) Type 3, Type 4X, Type 12
 Protection degree IP66, IP67
 Access opening: height 427 mm
 Access opening: width 421 mm
 Impact resistance 7 J ATEX version, 10 J standard version
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Material thickness of flange 3 mm
 Max. payload 92 kg
 Number of lid screws 4
 Overall dimensions 502 x 561 x 165
 Seal material Silicone
 General information 4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
 Flange plate Yes
