1195130002 - 480mm Stainless Steel Enclosure with IP66 Protection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

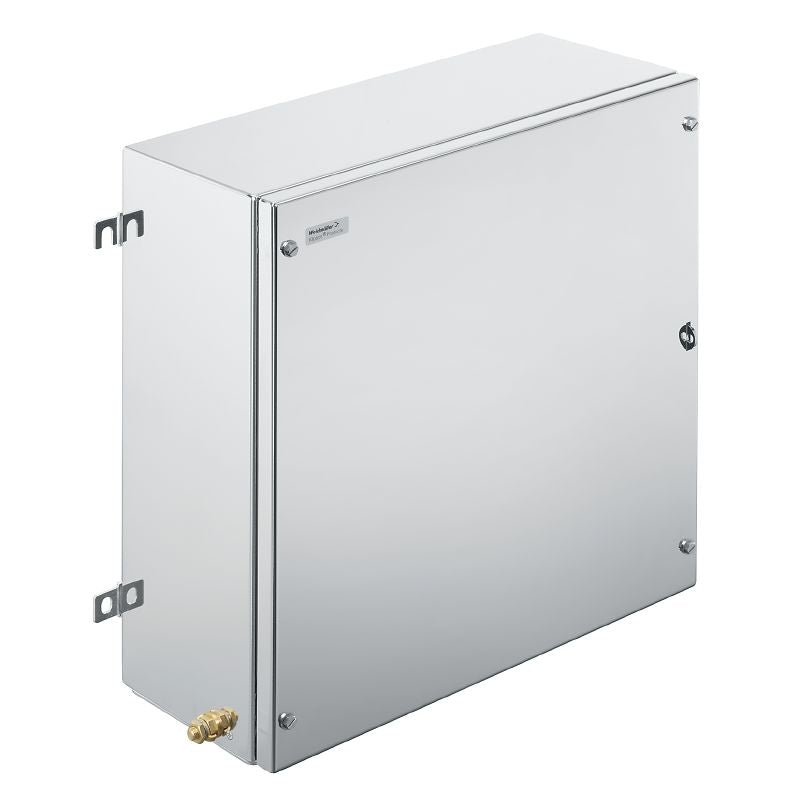

Introducing the Klippon TB MH, a robust empty enclosure crafted from stainless steel With a height and width of 480 mm and a depth of 150 mm, this versatile unit is suited for a range of applications It offers excellent protection against environmental factors, rated at IP66, although it is important to note that this rating is compromised at temperatures above 105 °C Made from untreated stainless steel 1.

4404 (316L) in a sleek silver finish, the enclosure includes multiple mounting options featuring glands located at the bottom, left, and right sides, making installation straightforward and flexible.

Features and Benefits:

•Constructed from durable stainless steel 1.4404 (316L).

•Includes gland plates on the bottom, left, and right sides.

•Designed for use in explosive risk zones, in the oil/gas and chemical industries.

•Compliant with various international standards and approvals.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
