1195120003 - 480mm Stainless Steel Terminal Box for Hazardous Environments

1195120003 - 480mm Stainless Steel Terminal Box for Hazardous Environments

SKU: 1195120003 Download PDF

Variant:
  • 1195120003 - 480mm Stainless Steel Terminal Box for Hazardous Environments
Now $2,179.66
BEFORE   $0.00 Now $2,179.66
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

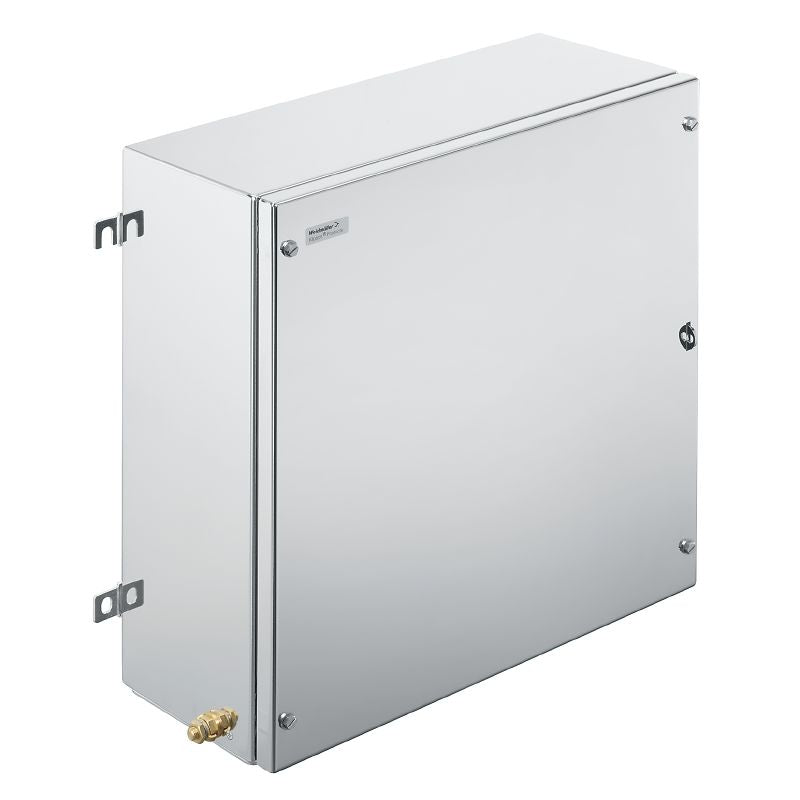

Introducing the Klippon TB MH, a robust empty enclosure crafted from durable stainless steel This enclosure measures 480 mm in height, 480 mm in width, and 150 mm in depth Equipped with gland plates on both the top and bottom, it is made from untreated stainless steel 14301 (304) for enhanced resilience Compliant with stringent safety standards, this enclosure is ideal for use in hazardous environments, including the oil and gas, chemical industries, and both onshore and offshore applications.

Features and Benefits:

    •Constructed from stainless steel 1.4301 (304).

    •Complies with RoHS and various safety standards.

    •Impact resistance rated at 7 J for ATEX version.

    •IP66 protection degree, limited over 105 °C.

    •Maximum payload capacity of 92 kg.

    •Used in explosive risk zones.

    •Applicable in the process industry.

    •Utilized in oil and gas industry.

    •Designed for use in chemical industries.

    •Suitable for offshore and onshore applications.

Specifications:

 Operating temperature (min) -60 °C
 Operating temperature (max) 135 °C

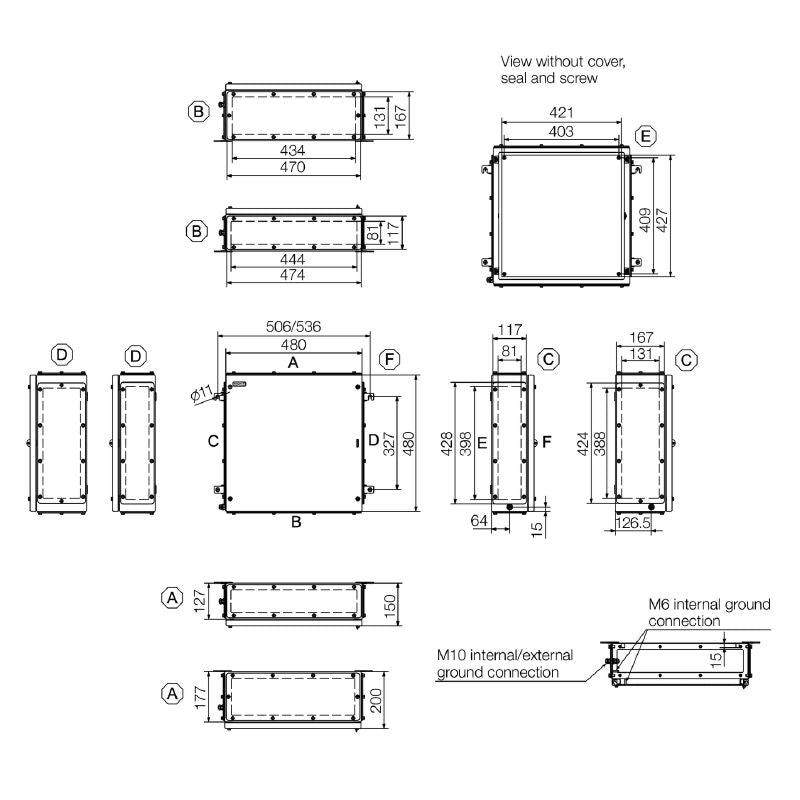

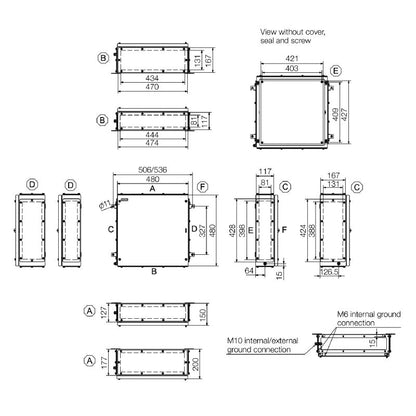

 Dimensions 640x680x240
 Mounting dimension - height 327 mm
 Mounting dimension - width 506 mm
 Access opening: height 427 mm
 Access opening: width 421 mm
 Overall dimensions 502 x 531 x 165
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Material thickness of flange 3 mm
 Protection class (UL) Type 3, Type 4X, Type 12
 Seal material Silicone
 Cable glands {'left': {'M12': 36, 'M16': 20, 'M20': 17, 'M25': 7, 'M32': 6, 'M40': 5, 'M50': 4, 'M63': 0, 'M75': 0}, 'right': {'M12': 36, 'M16': 20, 'M20': 17, 'M25': 7, 'M32': 6, 'M40': 5, 'M50': 4, 'M63': 0, 'M75': 0}, 'top/bottom': {'M12': 39, 'M16': 22, 'M20': 19, 'M25': 8, 'M32': 7, 'M40': 6, 'M50': 5, 'M63': 0, 'M75': 0}}
