1195120001 - Stainless Steel Terminal Box 480mm x 480mm x 150mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

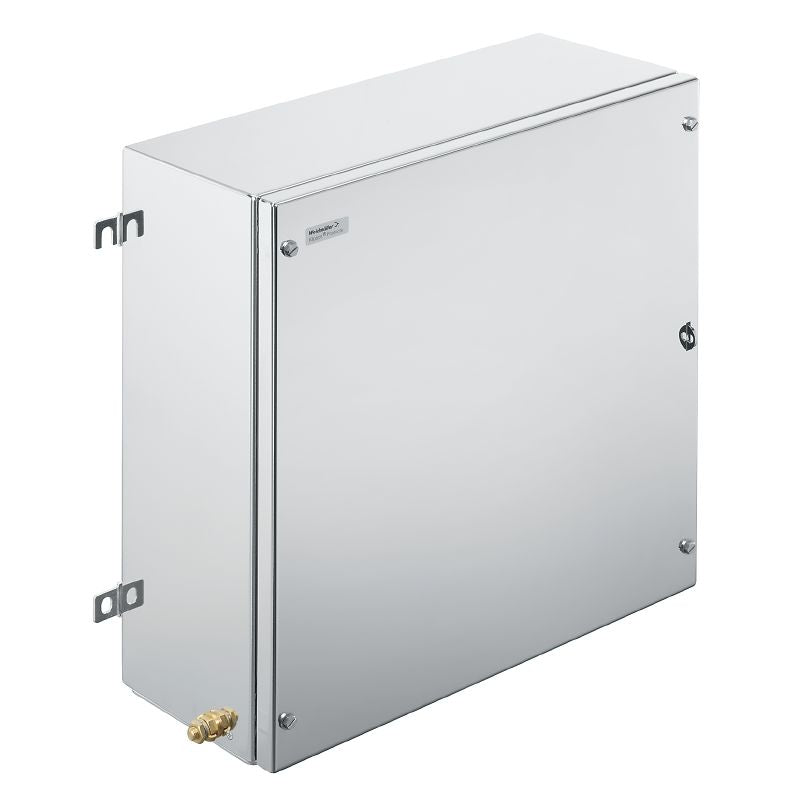

Introducing the Klippon TB MH, a robust enclosure crafted from high-quality stainless steel, specifically 14301 (304) grade Its elegant electropolished surface showcases a striking silver finish With a height of 480 mm, width of 480 mm, and depth of 150 mm, this enclosure is thoughtfully designed with gland plates located on both the top and bottom The Klippon TB MH also comes with multiple certification approvals, guaranteeing its adherence to a variety of regulatory standards for peace of mind.

Features and Benefits:

•Approval conditions include ATEX, cULus, and DNV.

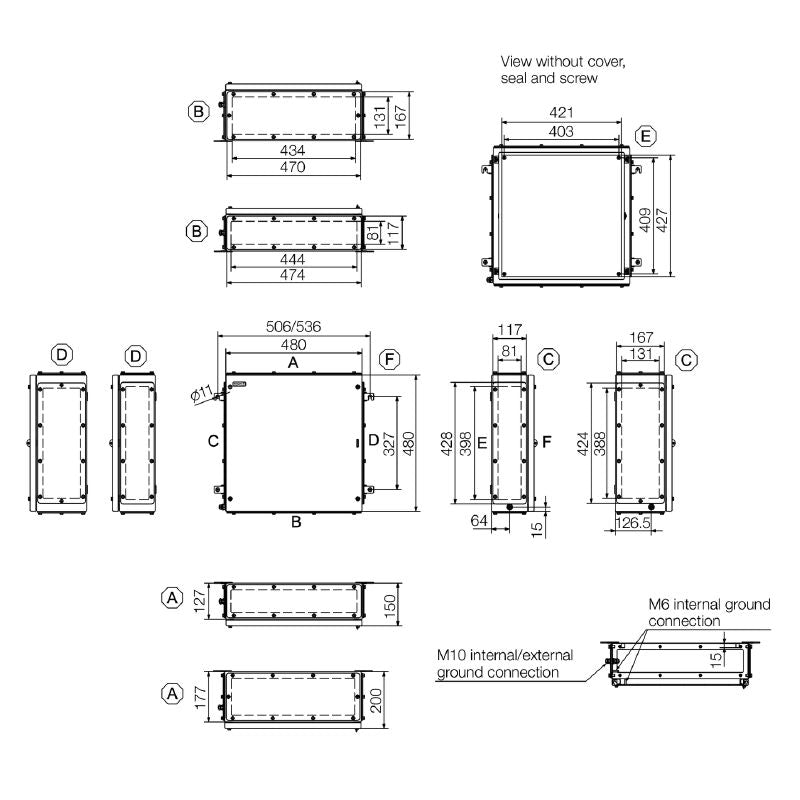

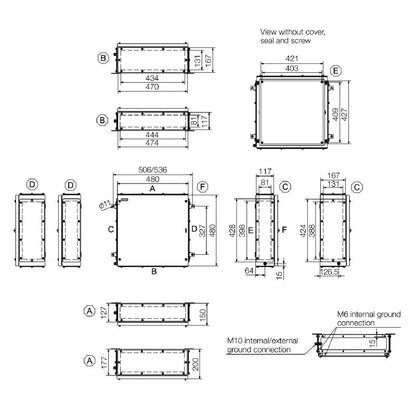

•Height access opening of 427 mm and width of 421 mm.

•Compatible with various mounting systems including 4 welded-on mounting feet with 11 mm holes.

•Protection degree of IP66 and IP67.

•Impact resistance rated at 7 J for ATEX version and 10 J for the standard version.

•Operating temperature ranges from -60 °C to 135 °C.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore applications.

•Onshore applications.

Specifications:
