1195110002 - 480mm Stainless Steel Terminal Box, RoHS & ATEX Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

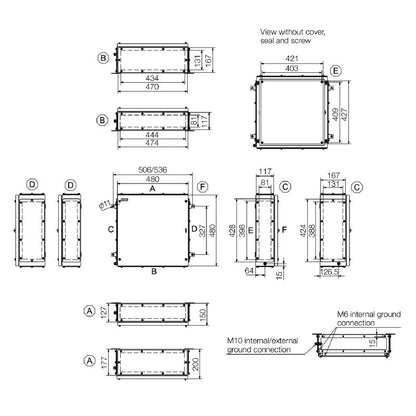

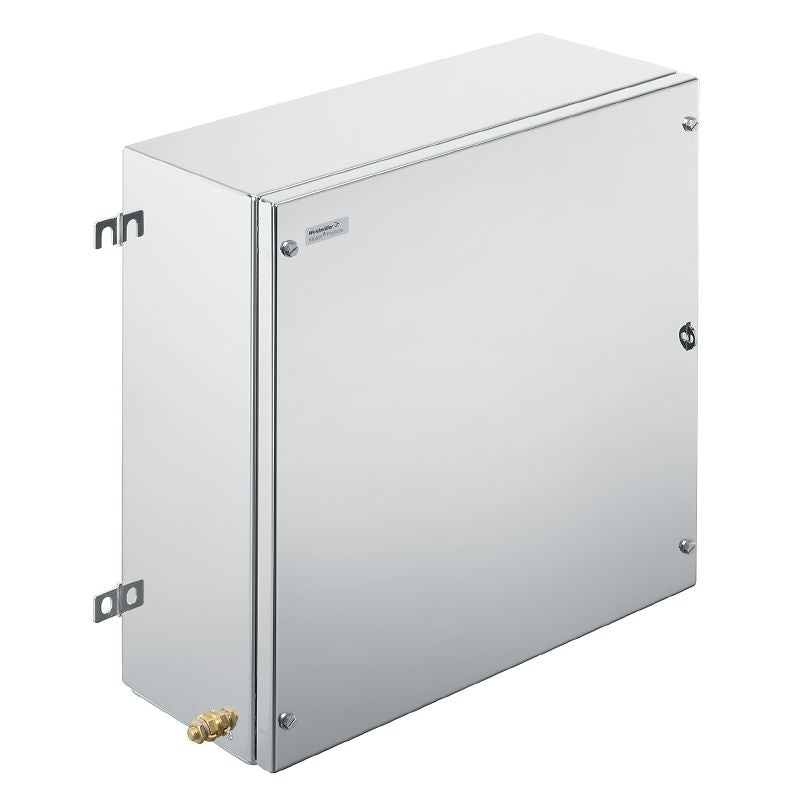

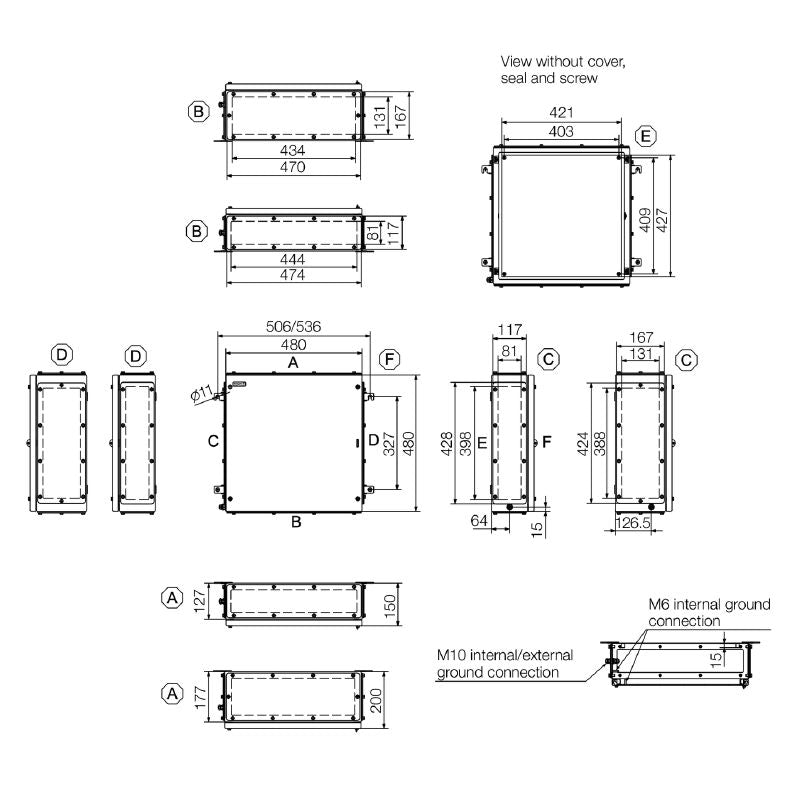

Introducing the KTB MH 484815 S4N1 terminal box, an empty enclosure designed for a wide range of applications Made from premium stainless steel 14404 (316L), this robust box measures 480 mm in height, 480 mm in width, and 150 mm in depth It features gland plates at the base and complies with RoHS guidelines, ensuring it meets environmental standards Additionally, it holds various certifications, including cULus and ATEX, making it ideal for use in potentially explosive environments, particularly in the oil, gas, and chemical sectors.

With an operating temperature range of -60 °C to 135 °C, this terminal box is built for safety and reliability, featuring enhanced attributes to meet demanding industrial needs.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L).

•Compatible with various cable gland sizes and types.

•Appropriate for use in explosive risk zones and harsh industrial environments.

•Includes bottom gland plates.

•Has an IP66 and IP67 protection degree.

•Offers substantial impact resistance with a 7 J ATEX version.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore environments.

•Onshore environments.
