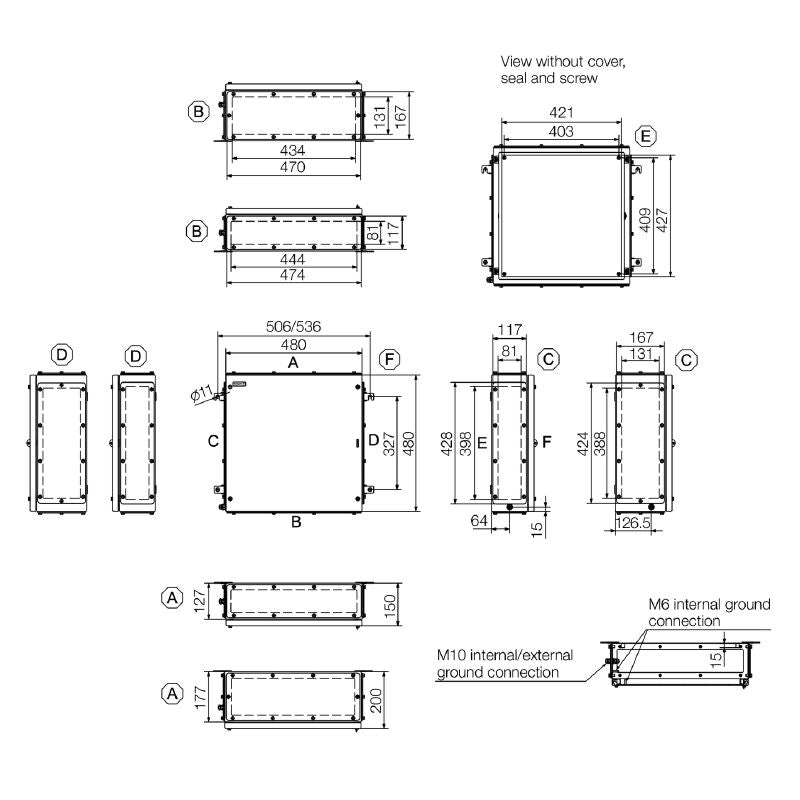

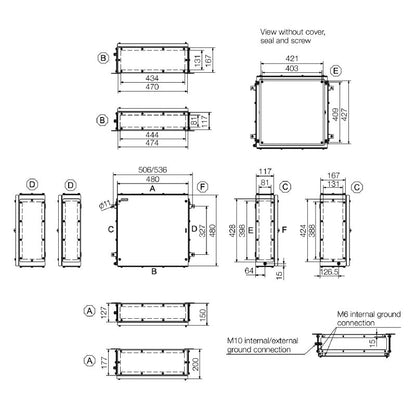

1195110001 - 480x480mm Stainless Steel Terminal Box, Multi-Hinge Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

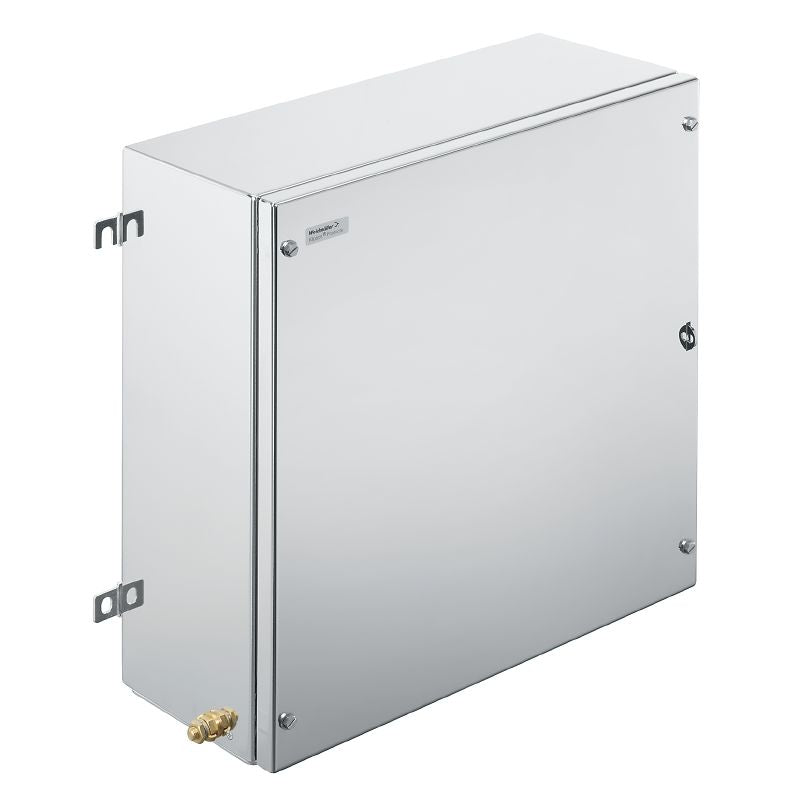

Introducing the KTB MH 484815 S2E1, a versatile empty terminal box crafted for optimal functionality Constructed from high-grade stainless steel (14301, also known as 304), this enclosure has been electropolished to enhance its resistance against wear and tear With dimensions of 480 mm in height, 480 mm in width, and 150 mm in depth, it provides ample space for various installations Adhering to established safety standards, including RoHS compliance, this terminal box comes with multiple certifications, making it ideal for use in safety-sensitive environments.

Features and Benefits:

•Constructed from stainless steel 1.4301 (304), electropolished.

•Dimensions: Height 480 mm, Width 480 mm, Depth 150 mm.

•Designed for use in explosive risk zones and the process industry.

•Includes a hinged lid and integral fixing with 4, 6, or 9 stud bolts M6.

•Impact resistance rated at 10 J for standard version and 7 J for ATEX version.

•Protection class rated IP66, limited IP protection at high temperatures.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
