1195090003 - Stainless Steel Terminal Box, 458mm Height, Multi-Hinge Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

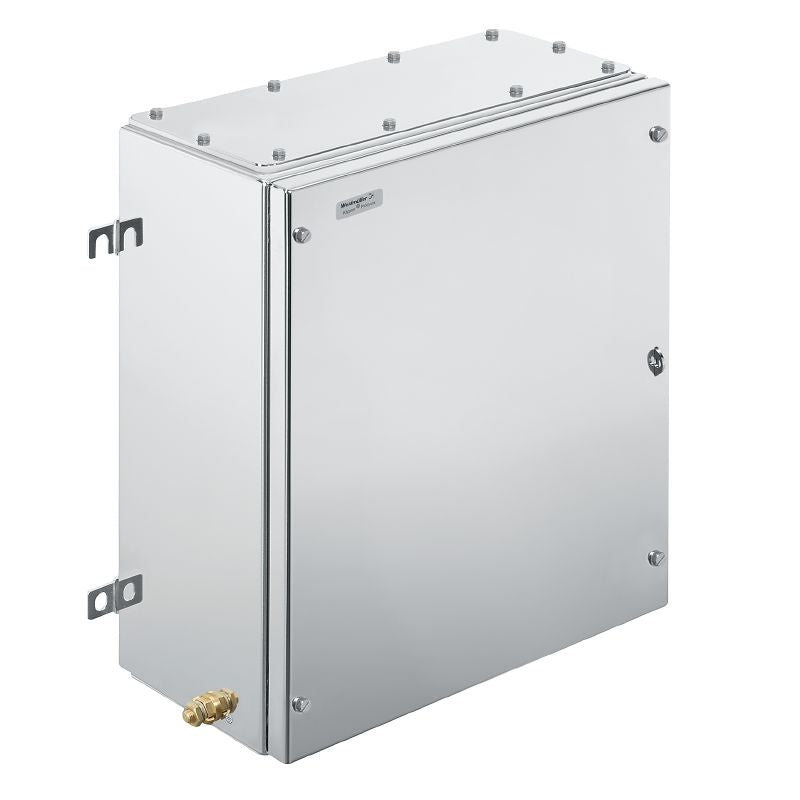

Introducing the Klippon TB MH, a robust multi-hinge terminal box constructed from high-grade stainless steel (material 14301, 304) This enclosure offers dimensions of 458 mm in height, 382 mm in width, and 200 mm in depth Designed without internal components, it features gland plates positioned on the top, bottom, left, and right for versatile connectivity The untreated surface showcases a sleek silver finish, and it meets various standards, including RoHS compliance.

Additionally, it comes with certification for safe use in explosive environments, making it a reliable choice for demanding applications.

Features and Benefits:

•Construction material: Stainless steel.

•Weight: 19,383.388 g.

•Access opening dimensions: height 405 mm, width 323 mm.

•Mounting dimensions: height 305 mm, width 438 mm.

•Protection class: IP66, IP67.

•Operating temperature range: -60 °C to 135 °C.

•Lid with a 130° opening angle.

•Integral fixing with M6 threaded stud bolts.

•Gland plates available.

•Certified for various approvals including ATEX and IECEX.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
