Product Information

Description:

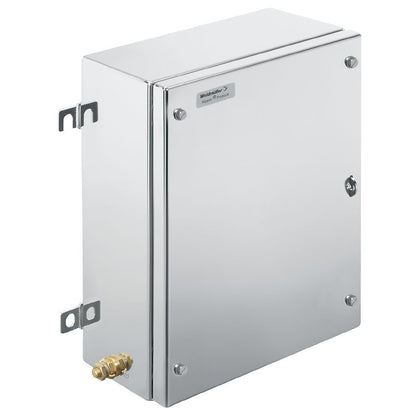

Discover the versatility of this empty enclosure, crafted from durable stainless steel With dimensions of 350 mm in height, 260 mm in width, and 150 mm in depth, this enclosure is suitable for a wide range of applications It features gland plates located on the bottom, top, left, and right sides, offering flexible installation possibilities Made from untreated stainless steel type 14301 (304), this product meets various regulatory standards, ensuring reliable performance for your needs.

Features and Benefits:

•Comprises various approvals including RoHS and ATEX compliance.

•Designed for explosive risk zones, including oil and gas and chemical industries.

•Durable design with impact resistance of up to 10 J.

•Easy access opening dimensions of 297 mm height and 201 mm width.

•Includes integral fixing options for stability during installation.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:

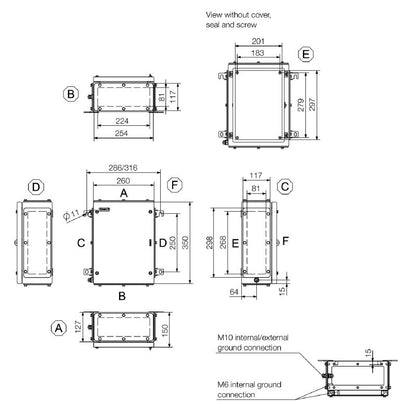

Dimensions (H x W x D)	350 mm x 260 mm x 150 mm
Net weight	12,776.988 g
Operating temperature range	-60 °C to 135 °C
Protection class	IP66, IP67
Material thickness of cover	1.5 mm
Material thickness of enclosure	1.5 mm
Material thickness of flange	3 mm
Max. payload	36 kg
Number of lid screws	4
Seal material	Silicone
