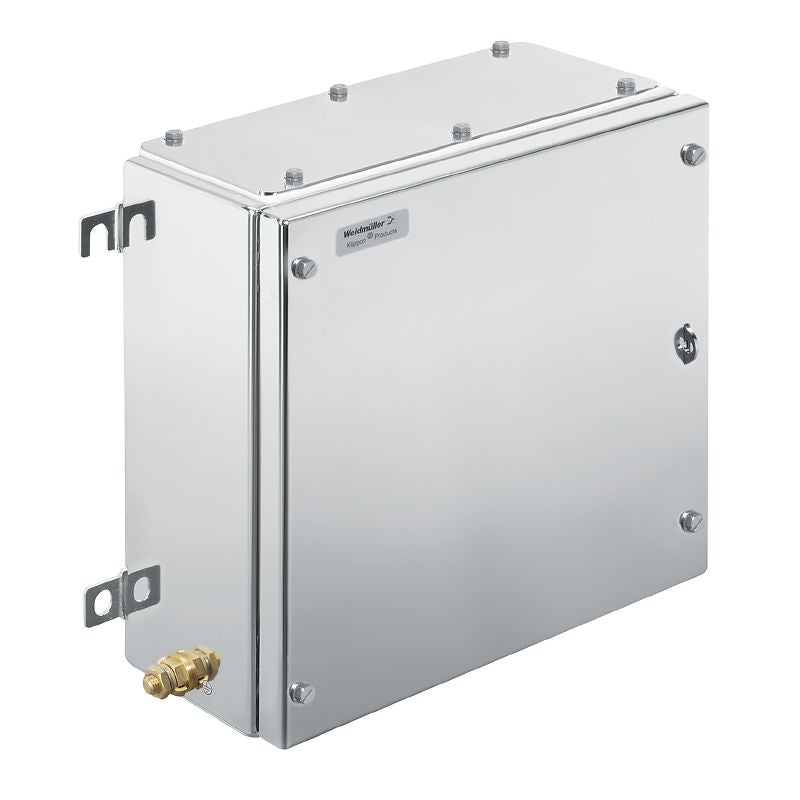

1194770001 - Stainless Steel Terminal Box 306mm with Multi-Hinge Design

Description:

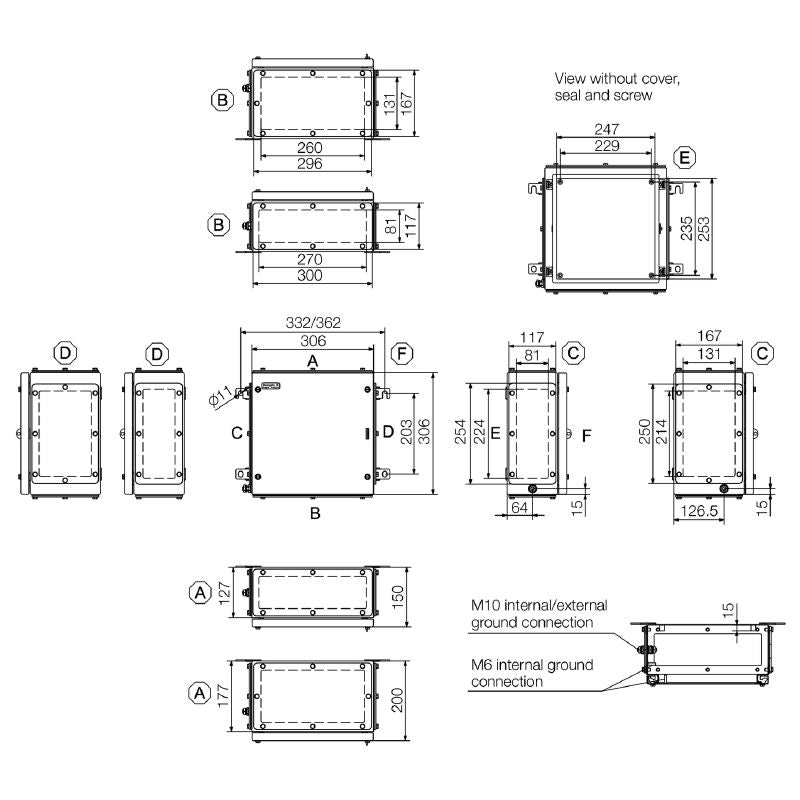

Introducing a robust terminal box designed for versatility, featuring a multi-hinge structure crafted from high-quality stainless steel This enclosure measures 306 mm in height, 306 mm in width, and 200 mm in depth, making it practical for various applications It is equipped with gland plates situated at both the bottom and top, offering accessibility for electrical connections Constructed from electropolished stainless steel (grade 1.

4301, also known as 304), this product is RoHS compliant and ideal for environments with explosive risks, including industries such as oil and gas, chemical processing, and offshore and onshore operations.

Features and Benefits:

•Stainless steel electropolished finish.

•IP66 and IP67 protection degree.

•Hinged lid for easy access.

•Operational temperature range from -60 °C to +135 °C.

•Maximum payload of 37 kg.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore applications.

•Onshore applications.

Specifications:
