1194710000 - Stainless Steel 306mm Multi-Hinge Terminal Box for Harsh Environments

1194710000 - Stainless Steel 306mm Multi-Hinge Terminal Box for Harsh Environments

SKU: 1194710000   Download PDF

Select a Variant:
  • 1194710000 - Stainless Steel 306mm Multi-Hinge Terminal Box for Harsh Environments
Qty:
Now $1,010.74   Web pricing policy
BEFORE   $0.00 Now $1,010.74 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

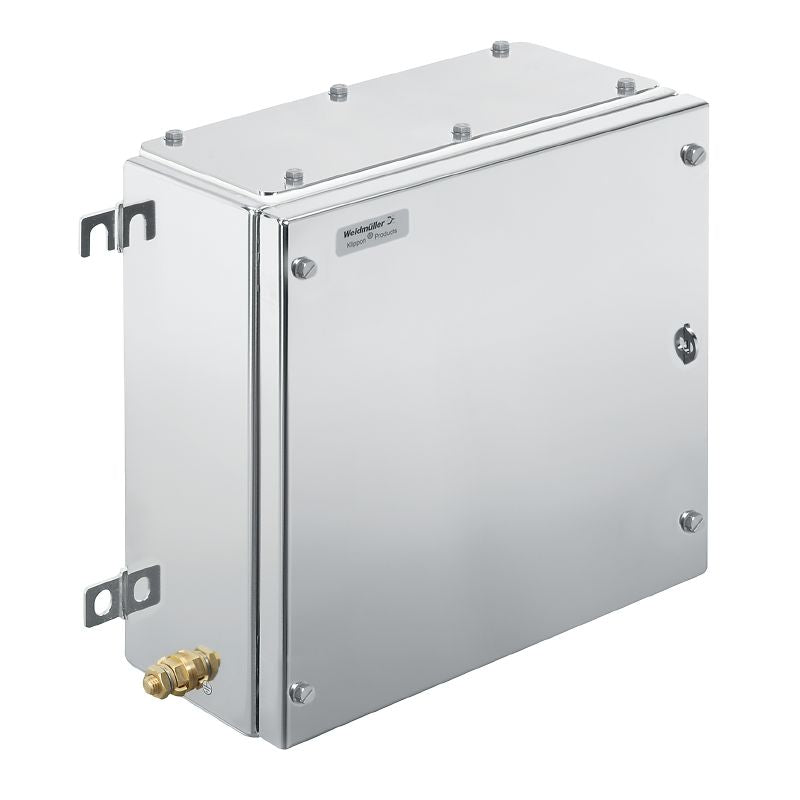

Discover the KTB MH 303015 S4E1, a versatile multi-hinge terminal box crafted from premium stainless steel 14404 (316L) and finished with a sleek electropolished surface Its compact external dimensions of 306 mm x 306 mm x 150 mm make it suitable for various installation environments This robust enclosure is RoHS compliant and features a bottom gland plate with mounting allowances, making it an excellent choice for use in explosive risk zones as well as in industries like oil, gas, and chemicals, for both offshore and onshore settings.

Features and Benefits:

    •Constructed from stainless steel 1.4404 (316L).

    •Electropolished surface finish.

    •IP66 protection degree.

    •Designed for explosive risk zones.

    •Mounting dimension features for easy installation.

    •Explosive risk zone.

    •Process industry.

    •Oil and gas industry.

    •Chemical industry.

    •Offshore.

    •Onshore.

Specifications:

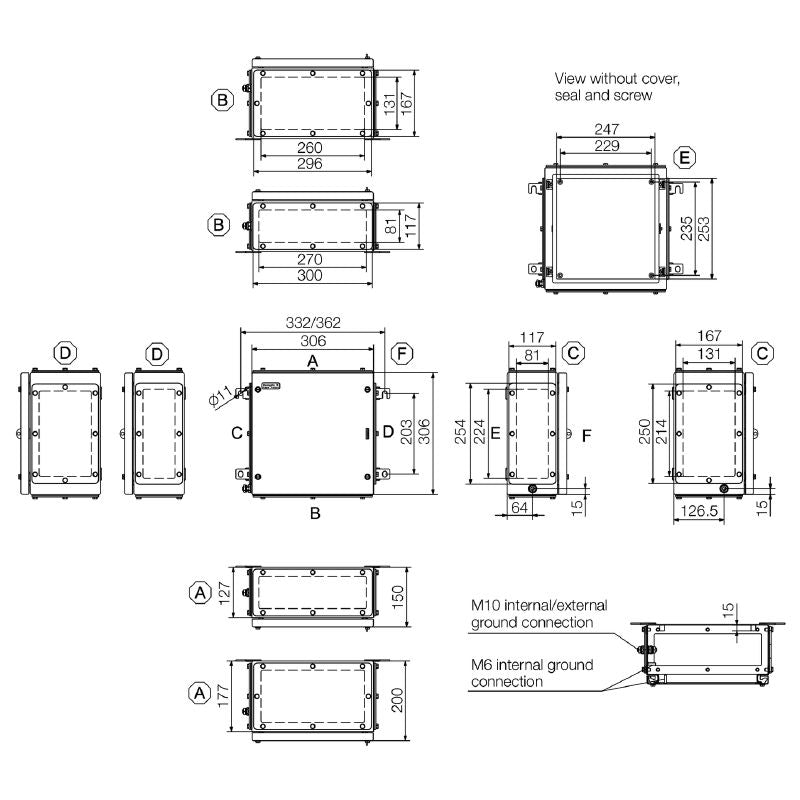

 Dimensions (mm) 306 x 306 x 150
 Operating Temperature -60 °C to 135 °C
 Weight 5.96 kg
 Protection Class (UL) Type 3, Type 4X, Type 12
 Protection Degree IP66, IP67
 Material Thickness of Cover 1.5 mm
 Material Thickness of Enclosure 1.5 mm
 Max Payload 37 kg
