1194670002 - 260mm Stainless Steel Terminal Box with Multi Hinge Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

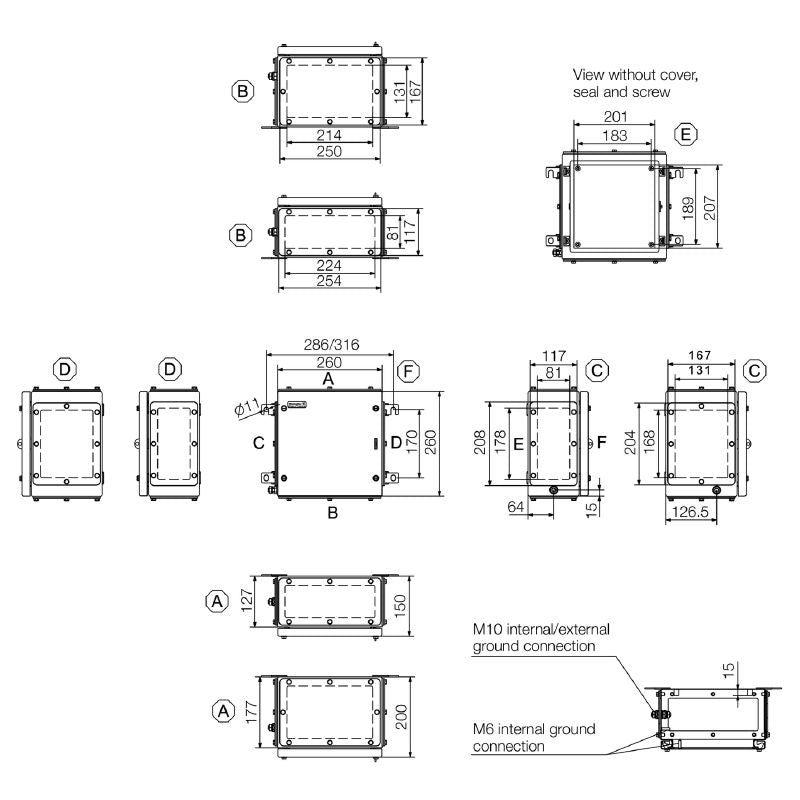

Introducing the Klippon TB MH (Terminal Box - Multi Hinge), a sturdy and versatile empty enclosure made from high-quality stainless steel Measuring 260 mm in height, 260 mm in width, and 200 mm in depth, this enclosure is designed for efficiency and ease of use It comes equipped with gland plates located at both the top and bottom for added functionality Constructed from untreated stainless steel 1.

4404 (316L) with a striking silver finish, this box weighs approximately 1122 kg, making it a reliable choice for your needs.

Features and Benefits:

•Compliant with RoHS.

•Designed for explosive risk zones.

•Suited for process, oil and gas, chemical industries, offshore, and onshore applications.

•Has an overall impact resistance of 10 J for standard version and 7 J for ATEX version.

•Equipped with a flange plate for added security.

•Provides protection degree of IP66/IP67, ensuring robust operation in various environments.

•Operating temperature range of -60 °C to 135 °C.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore applications.

•Onshore applications.

Specifications:
