1194670000 - Stainless Steel Terminal Box 260mm with Multi Hinge Design

SKU: SKU: 1194670000 Download PDF

Select a Variant:

1194670000 - Stainless Steel Terminal Box 260mm with Multi Hinge Design

SET THE QTY:

Now $1,228.49 Web pricing policy

~~BEFORE $0.00~~ Now $1,228.49 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

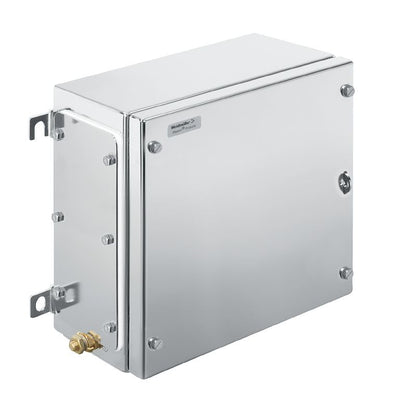

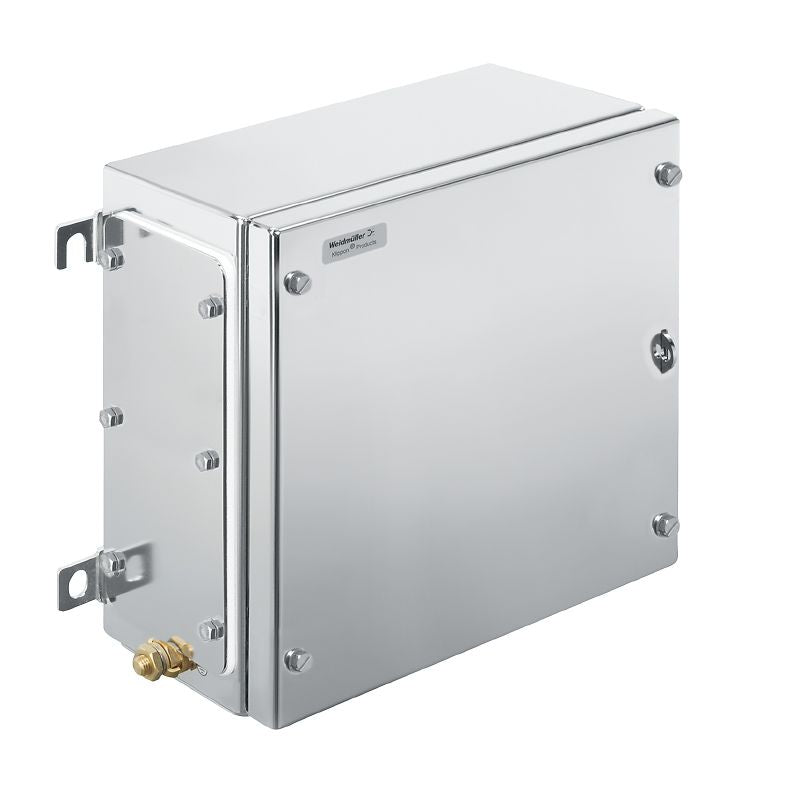

Presenting the Klippon TB MH (Multi Hinge Terminal Box), a durable and spacious enclosure crafted from high-grade stainless steel With dimensions measuring 260 mm in height, 260 mm in width, and 200 mm in depth, this box is engineered for reliability It is equipped with gland plates on both the top and bottom, constructed from stainless steel grade 14404 (316L) and features a sleek electropolished silver finish.

This enclosure adheres to various industry standards, ensuring safety and compliance Weighing in at 6400 grams, it combines a sturdy build with efficient design, making it an excellent choice for a wide range of applications.

Features and Benefits:

•Constructed from high-grade stainless steel 1.4404 (316L).

•Electropolished surface finish for enhanced durability.

•Designed for use in explosive risk zones and various industrial applications.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:

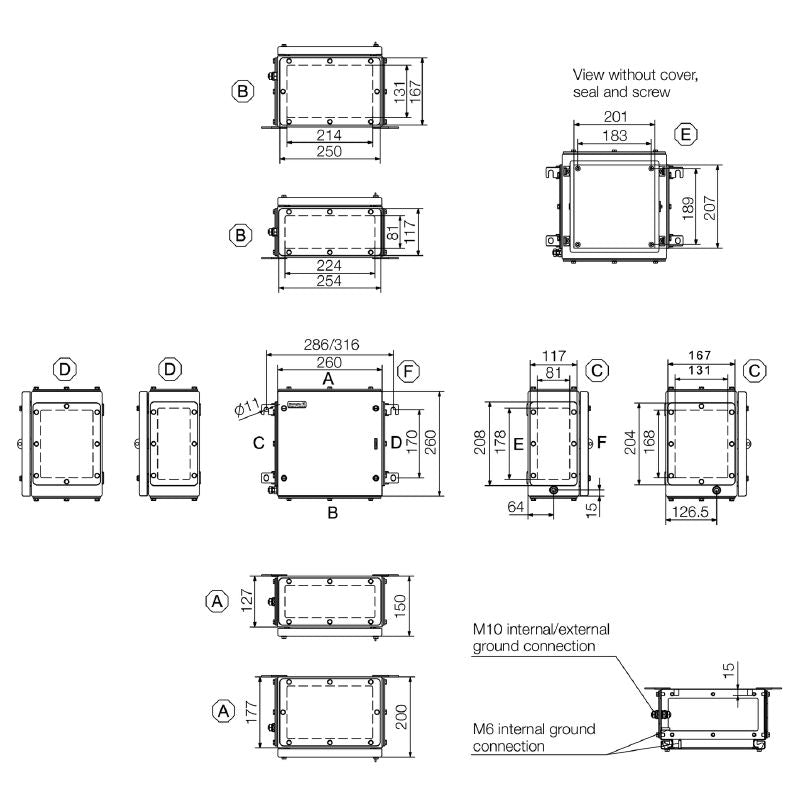

Dimensions	{'Depth': '200 mm', 'Height': '260 mm', 'Width': '260 mm'}
Operating temperature	-60 °C to 135 °C
Protection class	IP66, IP67
Mounting dimension	{'Height': '170 mm', 'Width': '286 mm'}
Access opening	{'Height': '207 mm', 'Width': '201 mm'}
Max payload	27 kg
Material thickness	{'Cover': '1.5 mm', 'Enclosure': '1.5 mm', 'Flange': '3 mm'}
Impact resistance	{'ATEX version': '7 J', 'Standard version': '10 J'}
