1194630003 - Robust 260mm Klippon Terminal Box for Multi-Hinge Applications

Description:

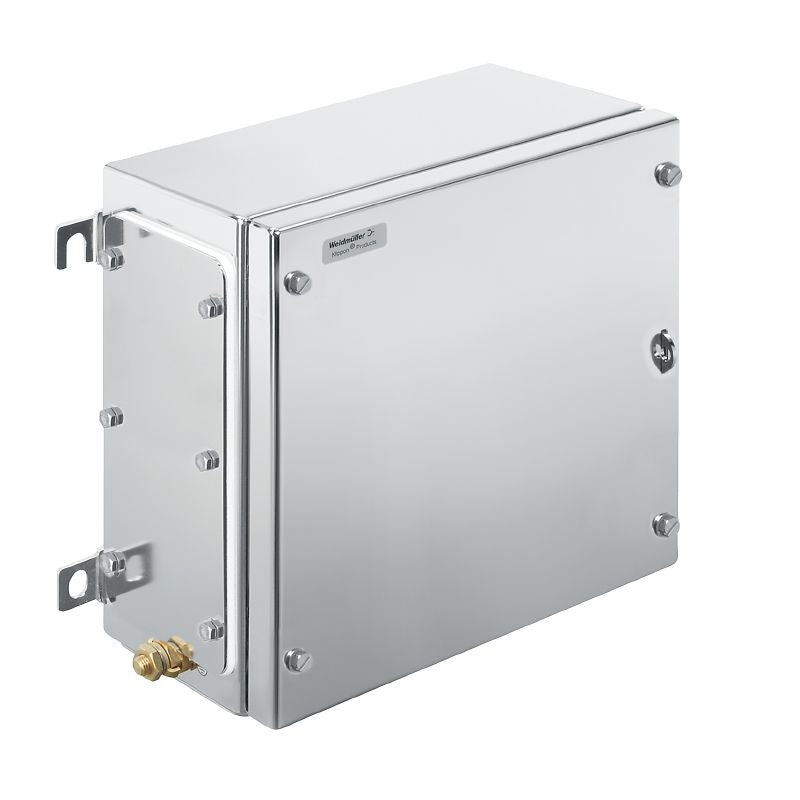

Introducing the Klippon TB MH terminal box, expertly designed for multi-hinge applications Crafted from durable untreated stainless steel 14301 (304), this robust enclosure measures 260 mm in height, 260 mm in width, and 150 mm in depth It offers convenient gland plates located at the bottom, left, and right sides Meeting RoHS standards and equipped with various certifications including cULus and ATEX, this box is built for reliability.

With a maximum operating temperature range of -60 °C to 135 °C, it is engineered to perform reliably even in extreme conditions.

Features and Benefits:

•Constructed from stainless steel 1.4301 (304).

•Compliant with IP66 and IP67 protection degrees.

•Includes multiple approvals such as ATEX and UL.

•Operational temperature range from -60 °C to 135 °C.

•Features four welded-on mounting feet.

•Lid secured with four hinges and screws.

•Impact resistance ratings of 7 J for ATEX versions and 10 J for standard versions.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore environments.

Specifications:
