1194620003 - Stainless Steel Terminal Box 260mm x 150mm - Multi Hinge

SKU: SKU: 1194620003 Download PDF

Select a Variant:

1194620003 - Stainless Steel Terminal Box 260mm x 150mm - Multi Hinge

SET THE QTY:

Now $1,119.73 Web pricing policy

~~BEFORE $0.00~~ Now $1,119.73 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

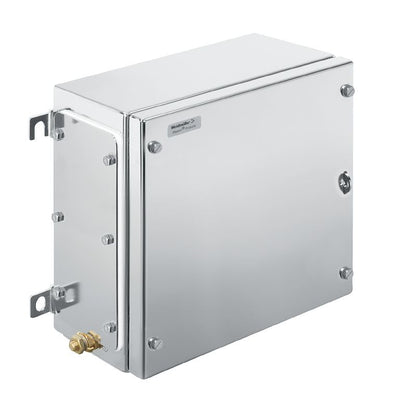

Introducing the Klippon TB MH (Terminal Box - Multi Hinge), a robust empty enclosure constructed from stainless steel With a height and width of 260 mm and a depth of 150 mm, this enclosure is both functional and reliable It includes gland plates at the top and bottom for efficient cable management Made from untreated stainless steel 14301 (304) with a sleek silver finish, it's designed for durability and versatility in various applications.

Features and Benefits:

•IP66 protection when used within specified temperature limits.

•Robust construction suitable for environments with explosive risks.

•Compliant with various industry standards and directives such as RoHS and REACH.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

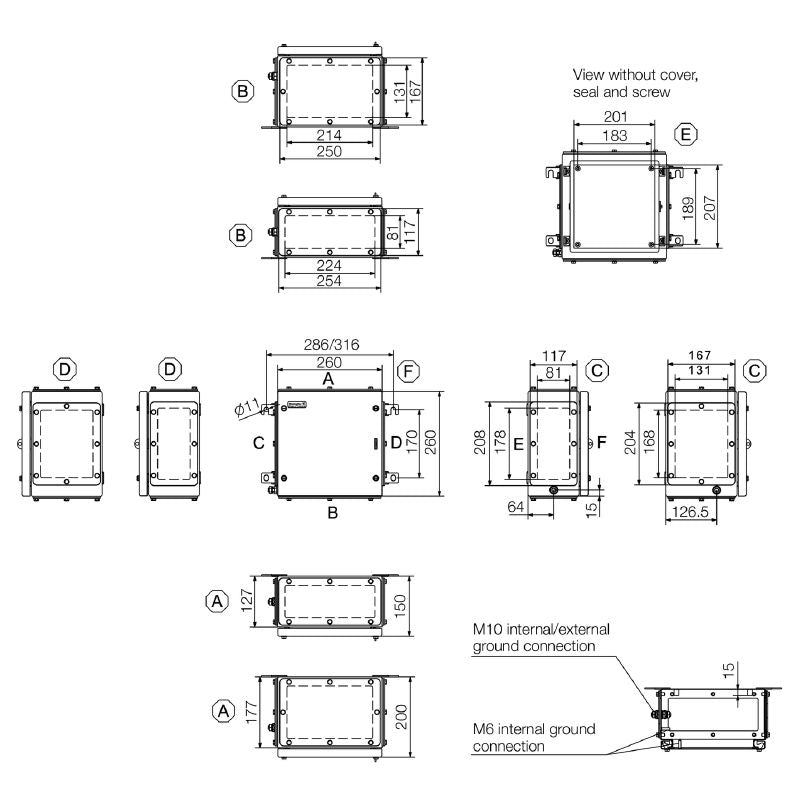

Specifications:

Depth	150 mm
Height	260 mm
Width	260 mm
Material	Stainless steel 1.4301 (304)
Protection Degree	IP66, IP67
Operating Temperature Min	-60 °C
Operating Temperature Max	135 °C
Net Weight	10,188.188 g
Access Opening Height	207 mm
Access Opening Width	201 mm
Max Payload	27 kg
Gland Plates	Bottom, top
Impact Resistance	7 J ATEX version, 10 J version standard
Seal Material	Silicone
Mounting Dimensions	Height: 170 mm, Width: 286 mm
