1194570002 - Stainless Steel Terminal Box 229mm for Hazardous Areas

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

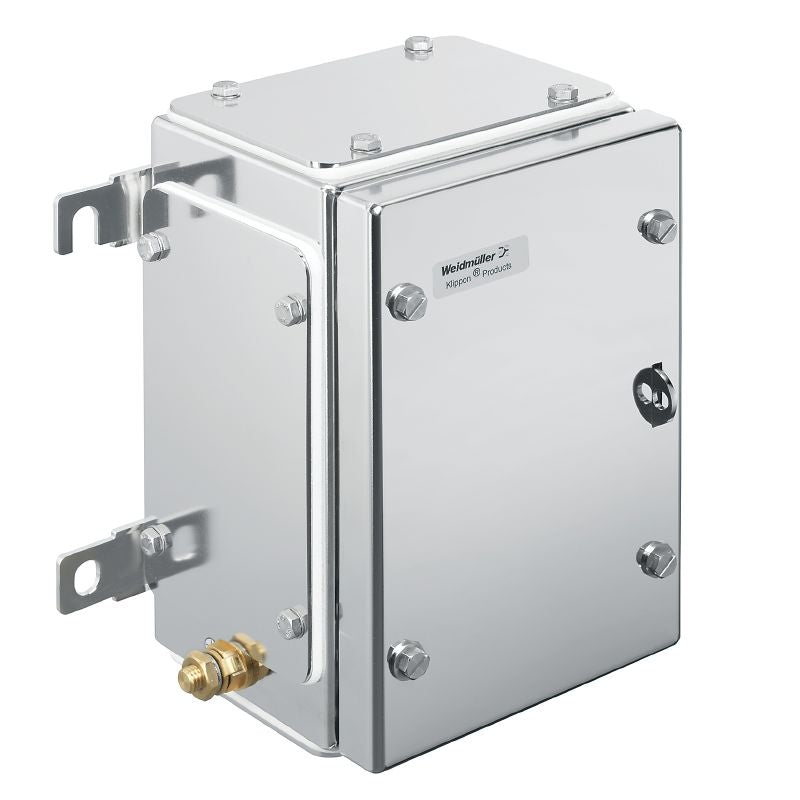

Introducing the Klippon TB MH (Terminal Box - Multi Hinge), a sturdy empty enclosure crafted from untreated stainless steel 14404 (316L) With dimensions of 229 mm in height, 152 mm in width, and 133 mm in depth, this versatile terminal box is designed for environments prone to explosions Equipped with gland plates on both the top and bottom, it serves a broad range of applications across the oil, gas, and chemical industries, suitable for both onshore and offshore setups.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L).

•Gland plates included at both bottom and top.

•Approvals include ATEX, cULus, DNV, IECEX, and others.

•Impact resistance rated at 7 J for ATEX versions and 10 J for standard versions.

•Flange plate included for secure mounting.

•Lid secured by 4 hinges and hex-head slotted screws.

•4 welded-on mounting feet included.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
