1194560001 - 229mm Stainless Steel Terminal Box for Hazardous Areas

1194560001 - 229mm Stainless Steel Terminal Box for Hazardous Areas

SKU: 1194560001   Download PDF

Select a Variant:
  • 1194560001 - 229mm Stainless Steel Terminal Box for Hazardous Areas
Qty:
Now $819.70   Web pricing policy
BEFORE   $0.00 Now $819.70 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

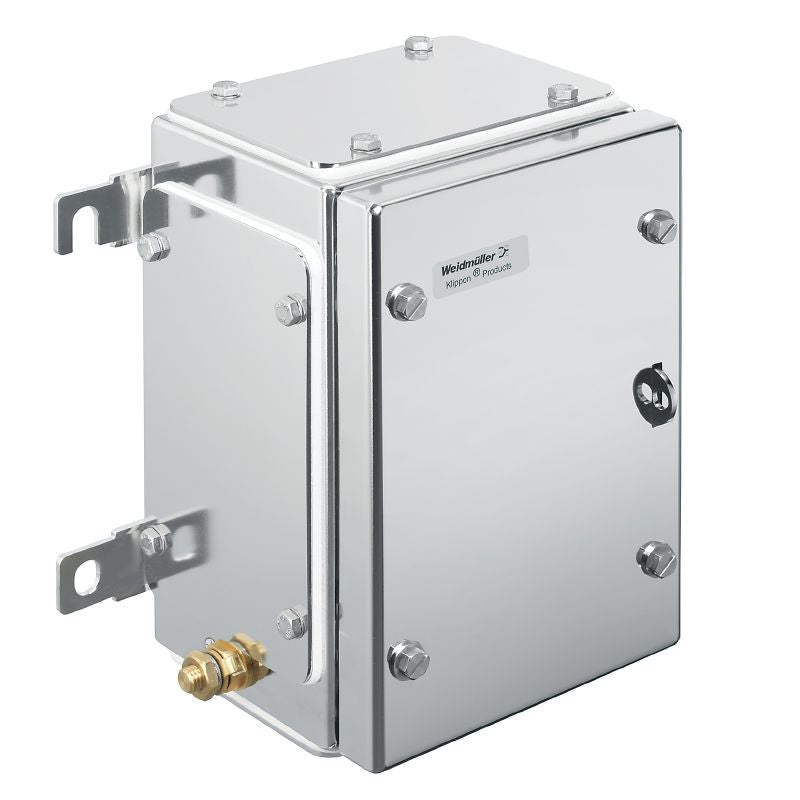

Introducing the KTB MH 221513 S2E1 terminal enclosure, expertly engineered for a variety of applications This robust box is made from high-grade electropolished stainless steel (14301 / 304) and dimensions of 229 mm in height, 152 mm in width, and 133 mm in depth It is equipped with gland plates on the bottom, making it a reliable choice for environments with explosion risks such as the oil and gas, chemical, and offshore industries.

With compliance to stringent standards and certifications, this enclosure guarantees exceptional safety and quality for your operational needs.

Features and Benefits:

    •Constructed from electropolished stainless steel 1.4301 (304).

    •Suitable for explosive risk zones and demanding industries.

    •Includes gland plates positioned at the bottom.

    •Explosive risk zone.

    •Process industry.

    •Oil and gas industry.

    •Chemical industry.

    •Offshore.

    •Onshore.

Specifications:

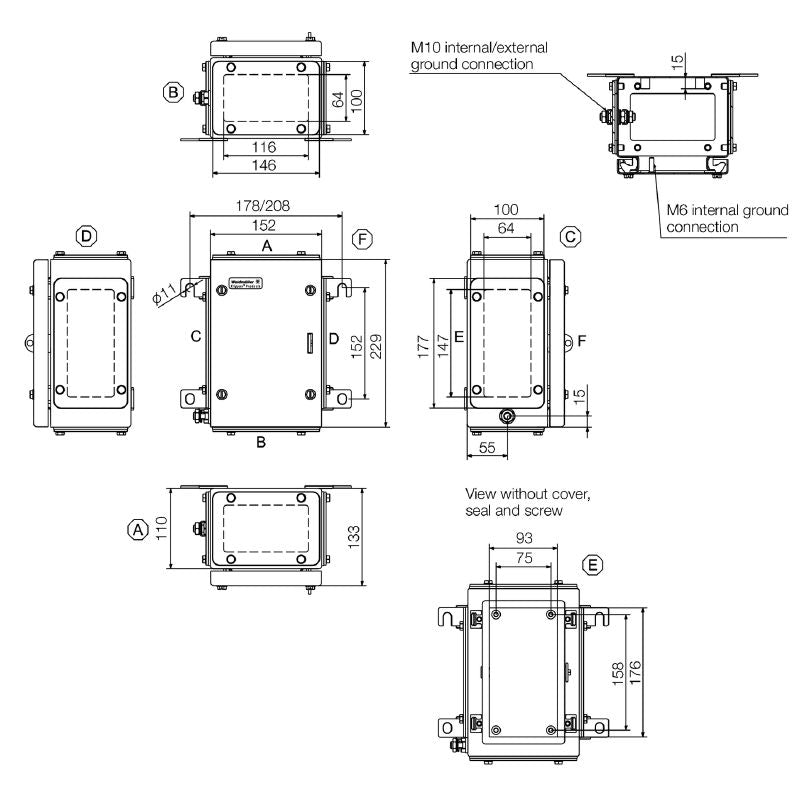

 Dimensions (HxWxD) 229 mm x 152 mm x 133 mm
 Operating temperature range -60 °C to 135 °C
 Protection class (IP) IP66, IP67
 Material thickness of enclosure 1.5 mm
 Max payload 14 kg
 Compliance RoHS Compliant
 Approval conditions ATEX, cULus, DNV, IECEX, INMETRO
